Spiral Wave Dynamics of Excited Medium: Effect of Relative Refractory

doi:10.19596/j.cnki.1001-246x.8321

Abstract

Abstract:

Effect of relative refractory of excited medium on dynamical behavior of spiral waves is investigated in a cellular automata model. It is found that there is a critical interval in the excitation threshold. Spiral wave period in the critical interval increases suddenly and there is a maximum period. Under appropriate system size and number of states, the spiral wave period is not affected by refractoriness. It depends on the excitation threshold of the system only. Relative refractory state leads to Z-type meandering, small-scale irregular meandering, petal meandering, jagged meandering, windmill meandering and other complex spiral wave tip motions. Stable spiral wave, meandering spiral wave, and disappearing spiral wave are observed. Mechanisms of these phenomena are briefly analyzed.

Key words: excitable medium, relative refractory state, spiral wave, cellular automata, numerical simulation

CLC Number:

O415.6

Furong GUAN, Chengqian LI, Minyi DENG. Spiral Wave Dynamics of Excited Medium: Effect of Relative Refractory[J]. Chinese Journal of Computational Physics, 2021, 38(6): 749-756.

Figures/Tables 5

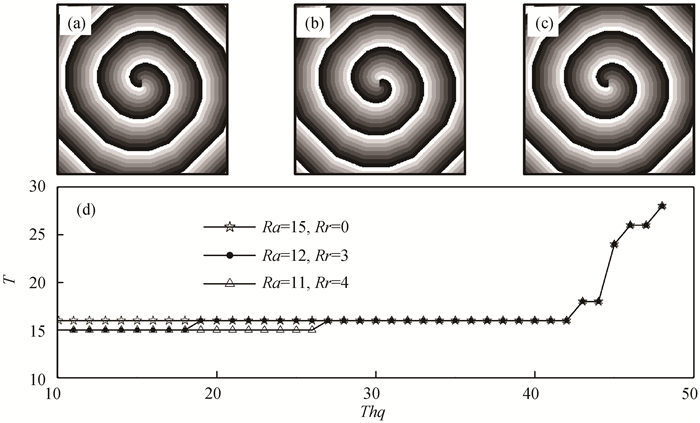

Fig.1 Effect of relative refractory states on the period of spiral wave (a)-(c) are the spiral wave patterns at 1000, 2000, and 3000 time steps after truncating the traveling wave (Ra=12, Rr=3, Thq=30); (d) Change of period T with time(Tha=76)

Fig.2 Spiral wave period T varies with Thq under different m and n (Tha=76) (a)m=100, n=10; (b)m=300, n=15; (c)m=300, n=25; (d)m=400, n=25

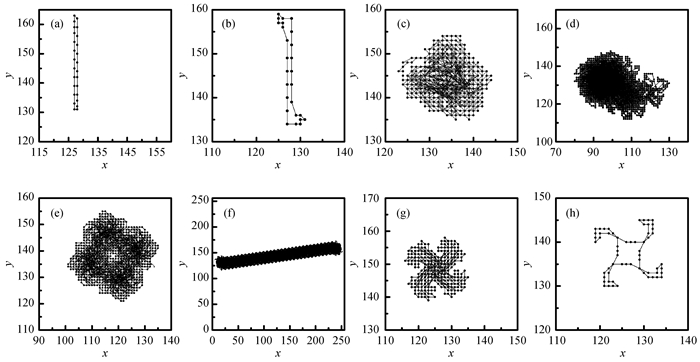

Fig.3 Effect of the relative refractory state on the trajectory of the spiral wave tip (Ra=25 - Rr, Thq=30, Tha=76) (a) Rr=0; (b)Rr=4; (c)Rr=9; (d)Rr=13; (e)Rr=14; (f)Rr=16; (g)Rr=20; (h)Rr=21

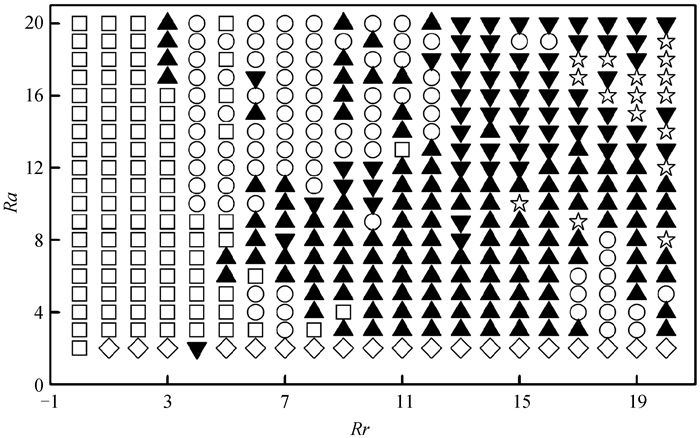

Fig.4 Evolution behavior of spiral waves under different (Rr, Ra) (Thq=30, Tha=76) (□, ○, ▲, ▼, ☆, ◇ represent stable spirals, periodic meandering spirals, quasiperiodic meandering spirals, aperiodic meandering spirals, disappearance and breakup of spiral waves, respectively.)

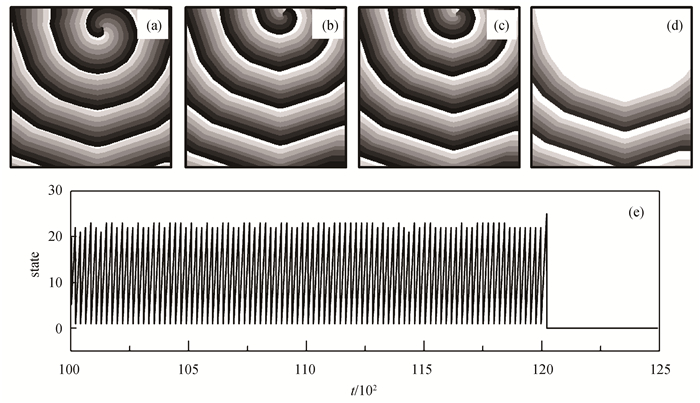

Fig.5 Disappearance of spiral wave caused by relative refractory state (Ra=10, Rr=15, Thq=30, Tha=76) (a)-(d) are grayscale images of cell state at t=10 000, 11 909, 11 912, and 11 970. The larger the cellular state value is, the brighter the corresponding point will be; (e)Change of cellular state with time at (20, 20)

References 29

1	ZYKOV V S, BODENSCHATZ E. Wave propagation in inhomogeneous excitable media[J]. Annual Review of Condensed Matter Physics, 2018, 9 (1): 435- 461. DOI
2	WANG Z, ROSTAMI Z, JAFARI S, et al. Suppression of spiral wave turbulence by means of periodic plane waves in two-layer excitable media[J]. Chaos, Solitons and Fractals, 2019, 128, 229- 233. DOI
3	张学良, 谭惠丽, 唐国宁, 等. 基于心脏腔式结构的心电图元胞自动机建模[J]. 物理学报, 2017, 66 (20): 24- 32.
4	HUANG X Y, XU W F, LIANG J M, et al. Spiral wave dynamics in neocortex[J]. Neuron, 2010, 68 (5): 978- 990. DOI
5	FENTON F H, CHERRY E M, HASTINGS H M, et al. Multiple mechanisms of spiral wave breakup in a model of cardiac electrical activity[J]. Chaos, 2002, 12 (3): 852- 892. DOI
6	HE D H, HU G, ZHAN M, et al. Pattern formation of spiral waves in an inhomogeneous medium with small-world connections[J]. Physical Review E, 2002, 65 (5): 055204. DOI
7	袁国勇, 张焕, 王光瑞. 多可激性障碍下的螺旋波动力学[J]. 物理学报, 2013, 62 (16): 53- 62.
8	王春妮, 马军. 分布式电流刺激抑制心肌组织中螺旋波[J]. 物理学报, 2013, 62 (8): 308- 316.
9	LIU G Q, YING H P, LUO H L, et al. Suppression of spiral breakup in excitable media by local periodic forcing[J]. International Journal of Bifurcation and Chaos, 2016, 26 (14): 1650236. DOI
10	CHEN J X, ZHANG H, QIAO L Y, et al. Interaction of excitable waves emitted from two defects by pulsed electric fields[J]. Communications in Nonlinear Science and Numerical Simulation, 2018, 54, 202- 209. DOI
11	MA J, WU N J, YING H P, et al. A local phase control of spiral and spatiotemporal chaos[J]. Chinese Journal of Computational Physics, 2006, 23 (2): 243- 248.
12	ZHONG M, TANG G N. Suppression of spiral waves and spatiotemporal chaos in cardiac tissues with controll of calcium and potassium ionic currents[J]. Chinese Journal of Computational Physics, 2011, 28 (1): 119- 124.
13	ZYKOV V S. Spiral wave initiation in excitable media[J]. Philosophical Transactions of the Royal Society, 2018, 376 (2135): 20170376.
14	ROMERO L, TRÉNOR B, ALONSO J M, et al. The relative role of refractoriness and source-sink relationship in reentry generation during simulated acute ischemia[J]. Annals of Biomedical Engineering, 2009, 37 (8): 1560- 1571. DOI
15	MAURER K, HOPF H C, LOWITZSCH K. Hypokalemia shortens relative refractory period of peripheral sensory nerves in man[J]. Journal of Neurology, 1977, 216 (1): 67- 71. DOI
16	TACKMANN W, LEHMANN H J. Relative refractory period of median nerve sensory fibres in the carpal tunnel syndrome[J]. European Neurology, 1974, 12 (5-6): 309- 316. DOI
17	ALDERSON M K, PETAJAN J H. Relative refractory period: A measure to detect early neuropathy in alcoholics[J]. Muscle & Nerve, 1987, 10 (4): 323- 328.
18	MURAKAWA Y, YAMASHITA T, AJIKI K, et al. Effects of a class iii antiarrhythmic drug and biphasic shocks on the postdefibrillation refractory period of relatively refractory myocardium[J]. Journal of Cardiovascular Electrophysiology, 1996, 7 (7): 603- 611. DOI
19	WOLFRAM S. Statistical mechanics of cellular automata[J]. Reviews of Modern Physics, 1983, 55 (3): 601- 644. DOI
20	CHEN X Q, DENG M Y, TANG G N, et al. Effect of conduction delay on dynamics of spiral waves[J]. Chinese Journal of Computational Physics, 2013, 30 (4): 620- 626.
21	DENG M Y, CHEN X Q, TANG G N. The effect of cellular aging on the dynamics of spiral waves[J]. Chinese Physics B, 2014, 23 (12): 120503. DOI
22	DENG M Y, DAI J Y, ZHANG X L. A cellular automaton model for the ventricular myocardium considering the layer structure[J]. Chinese Physics B, 2015, 24 (9): 142- 146.
23	ZHANG X L, TAN H L, TANG G N, et al. Mechanical deformation of myocardial tissue with cellular automaton[J]. Chinese Journal of Computational Physics, 2018, 35 (3): 294- 302.
24	FAST V G, EFIMOV I R. Stability of vortex rotation in an excitable cellular medium[J]. Physica D, 1991, 49 (1-2): 75- 81. DOI
25	BIKTASHEV V N, HOLDEN A V. Deterministic Brownian motion in the hypermeander of spiral waves[J]. Physica D, 1998, 116 (3-4): 342- 354. DOI
26	CHRISTOPH J, CHEBBOK M, RICHTER C, et al. Electromechanical vortex filaments during cardiac fibrillation[J]. Nature, 2018, 555 (7698): 667- 672. DOI
27	HUANG X, TROY W C, YANG Q, et al. Spiral waves in disinhibited mammalian neocortex[J]. The Journal of Neuroscience, 2004, 24 (44): 9897- 9902. DOI
28	VIVENTI J, KIM D H, VIGELAND L, et al. Flexible, foldable, actively multiplexed, high-density electrode array for mapping brain activity in vivo[J]. Nature Neuroscience, 2011, 14 (12): 1599- 1605. DOI
29	VIVENTI J, KIM D H, VIGELAND L, et al. Better resolution and fewer wires discover epileptic spiral waves[J]. Epilepsy Currents, 2012, 12 (4): 147- 149. DOI
