Theoretical Analysis and Numerical Simulation of PNS Method Measuring Fission Decay Properties of a Subcritical Facility

doi:10.19596/j.cnki.1001-246x.8413

Abstract

Abstract:

For problems of point-kinetic equation in explaining theory of the pulsed neutron source (PNS) method, evolution of neutron population and leakage γ-ray count rate of a subcritical system was analyzed with neutron transport theory. It is indicated that in a certain time range after the pulsed neutron source, the count rate of γ-rays leaked from the system is approximately proportional to the neutron population. And both of them change with time according to an exponential decay law, from which fission decay properties of the system can be deduced and the prompt neutron decay constant α₀ can be calculated. To verify the theoretical analysis, a Godiva-like bare uranium-sphere subcritical facility with a pulsed neutron source at the center was modeled. Neutron and γ-ray transport process was simulated with a Monte Carlo code. Evolutions of neutron population, γ-ray count rate and ratio of them were obtained. They are consistent with theoretical analysis. With PNS method, prompt neutron decay constant α₀ is calculated. It is consistent with the α-k power iteration result, which indicates that the neutron population and leakage γ-ray count rate reflect intrinsic fission decay properties of the system accurately. In addition, a criteria of fitting time window for the PNS method is presented. Factors influencing the ratio of γ-ray count rate and neutron population are discussed.

Key words: pulsed neutron source method, fission decay, prompt neutron decay constant, subcritical system, neutron diagnosed subcritical experiment

Yi GAO, Ruogu SHE, Qi XU. Theoretical Analysis and Numerical Simulation of PNS Method Measuring Fission Decay Properties of a Subcritical Facility[J]. Chinese Journal of Computational Physics, 2022, 39(3): 261-267.

Figures/Tables 6

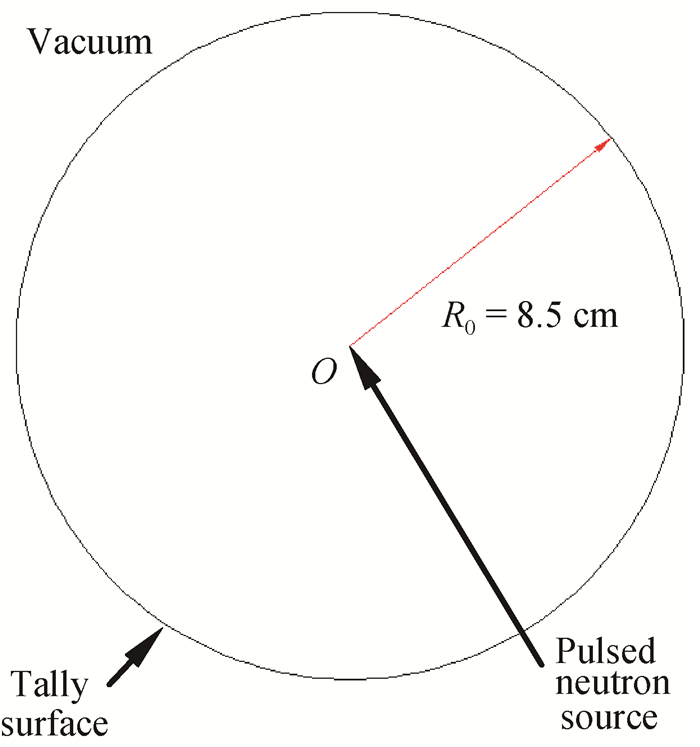

Fig.1 Layout of a Godiva-like subcritical system

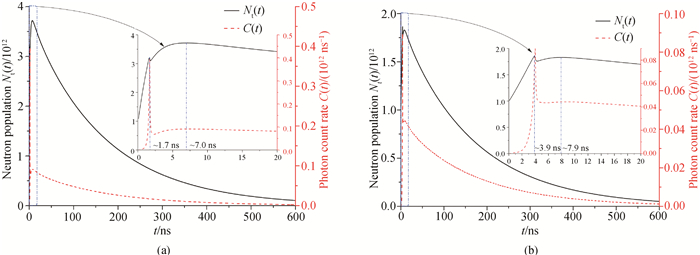

Fig.2 Neutron population and leakage γ-ray count rate (a) E0=14.1 MeV; (b) E0= 2.45 MeV

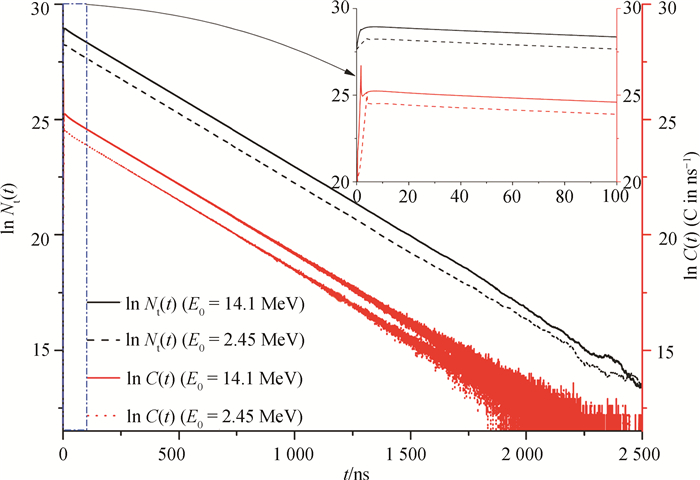

Fig.3 Natural logarithm of neutron population and leakage γ-ray count rate

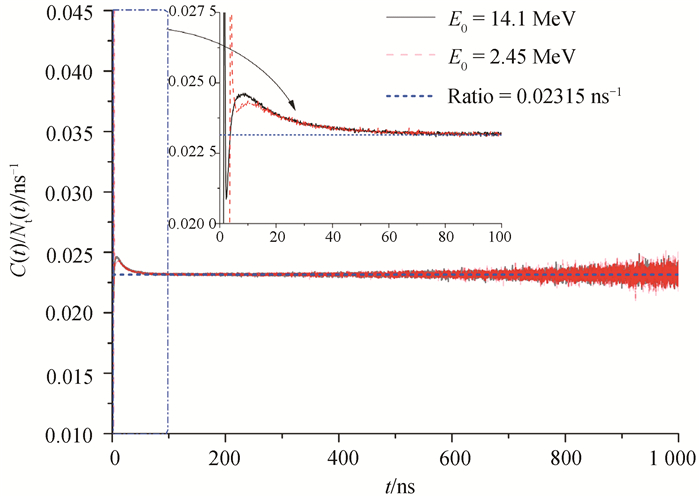

Fig.4 Ratio of leakage γ-ray count rate to neutron population

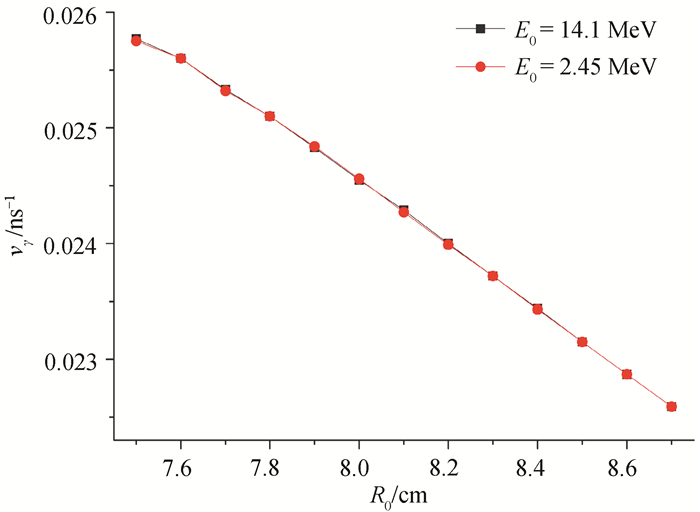

Fig.5 Relation between νγ and R0

Table 1 Calculation results of α0

源中子能量E₀/MeV	拟合数据	α₀/μs^-1	ε/μs^-1	R_adj²
14.1	总中子数	- 6.01	4.469 37 × 10^-5	1
14.1	γ计数率	- 6.01	3.793 01 × 10^-4	0.999 96
2.45	总中子数	- 6.01	7.860 01 × 10^-5	1
2.45	γ计数率	-6.01	5.517 24 × 10^-4	0.999 92

References 20

1	GOMEZ J A , KOEHLER P E , CUTLER T E , et al. Results of three neutron diagnosed subcritical experiments[J]. Nuclear Science and Engineering, 2019, 193 (5): 537- 548. DOI
2	USA Los Alamos National Laboratory. The bomb without the boom: A new subcritical measurement tool will help scientists protest and preserve the nation's stockpile[EB/OL]. https://www.lanl.gov/discover/publications/1663/2017-October/bomb-without-boom.php.
3	National Nuclear Security Administration. Stockpile stewardship and management plan (FY 2018)[R]. Washington: National Nuclear Security Administration, 2017.
4	SIMMONS B E , KING J S . A pulsed neutron technique for reactivity determination[J]. Nuclear Science and Engineering, 1958, 3 (5): 595- 608. DOI
5	贺仁辅, 邓门才. 快中子临界装置和脉冲堆实验物理[M]. 北京: 国防工业出版社, 2012.
6	代少丰, 刘耀光, 尹延朋, 等. 单次脉冲中子源方法测量瞬发中子衰减常数[J]. 原子能科学技术, 2012, 46 (10): 1189- 1192.
7	SOULE R , ASSAL W , CHAUSSONNET P , et al. Neutronic studies in support of accelerator-driven systems: The MUSE experiments in the MASURCA facility[J]. Nuclear Science and Engineering, 2004, 148 (1): 124- 152. DOI
8	WAN Junsheng , ZHANG Ying , ZHANG Lixing , et al. Spallation target of ADS neutron source[J]. Chinese Journal of Computational Physics, 2003, 20 (5): 408- 412.
9	PERSSON C M , SELTBORG P , ÅHLANDER A , et al. Analysis of reactivity determination methods in the subcritical experiment Yalina[J]. Nuclear Instruments and Methods in Physics Research A, 2005, 54 (1-3): 374- 383.
10	OKA Y , SUZUKI K . Nuclear reactor kinetics and plant control[M]. Tokyo: Springer, 2013.
11	WANG Yi , PAN Liujun , WANG Ruihong . Error estimation of k-α iteration method for α eigenvalue problems[J]. Chinese Journal of Computational Physics, 2019, 36 (1): 39- 46.
12	LI R, YE T, LI G, et al. Prompt alpha calculation with Monte Carlo code JMCT[C]. M&C 2017-International Conference on Mathematics & Computational Methods Applied to Nuclear Science & Engineering, Jeju, Korea, 2017.
13	黄祖洽. 核反应堆动力学基础[M]. 北京: 北京大学出版社, 2007.
14	GAO Y , SHE R , LI J , et al. Numerical simulation and analysis of the pulsed neutron source method measuring the prompt neutron decay constant of a Godiva-like subcritical facility[J]. Progress in Nuclear Energy, 2021, 133, 103627. DOI
15	ZOIA A , BRUN E , MALVAGI F . Alpha eigenvalue calculations with Tripoli-4[J]. Annals of Nuclear Energy, 2014, 63, 276- 284. DOI
16	CULLEN D E, CLOUSE C J, PROCASSINI R, et al. Static and dynamic criticality: Are they different?[R]. Livermore: Lawrence Livermore National Laboratory, 2003.
17	BELL G I , GLASSTONE S . Nuclear reactor theory[M]. New York: Van Nostrand Reinhold Company, 1970.
18	邱有恒, 李茂生, 邓力. 次临界系统中α本征值与k本征值的关系[J]. 清华大学学报(自然科学版), 2007, 47 (S1): 967- 971.
19	春雷. 核武器概论[M]. 北京: 原子能出版社, 2000.
20	DU Jinfeng . Computation of α eigenvalue on neutron transport equation[J]. Chinese Journal of Computational Physics, 2003, 20 (6): 509- 513.
