Experimental and Simulation Studies on Relation Between Graphene Thickness and Its Force-distance Curve

doi:10.19596/j.cnki.1001-246x.8270

Abstract

Abstract:

Relation between graphene thickness and its force-distance curve is studied with atomic force microscope and first-principles calculations. Firstly, we located relatively smooth graphene sheets with atomic force microscope line-profile, and got three graphene samples with thickness of 0.57 nm, 0.90 nm and 1.30 nm. Then, we tested force-distance curves of the samples with multiple measurements. It shows that average value of adsorption forces of the samples are 0.30 nN, 0.32 nN and 0.34 nN, and the average value of desorption forces are 5.33 nN, 5.66 nN and 7.24 nN, respectively. It shows that both adsorption and desorption forces are increased with the increasing of graphene thickness, which implies that it could be an alternative method to measure thickness of graphene with force-distance curves provided by AFM. In order to explain the experimental result, we built platinum-graphene coherent interface models by combining Pt with one, two and three graphene layers, and calculated interface separation work with first-principles calculation. Simulation results showed that the interface separation work for the models are 10.0 eV·nm^-2, 10.4 eV·nm^-2 and 10.8 eV·nm^-2, respectively. It is consistent with the trend of adsorption forces in experiment.

Key words: graphene thickness, atomic force microscope, force-distance curve, first-principles

CLC Number:

O613.71

Yong FANG, Yongzhong JIN, Jian CHEN, Hongxiang ZONG, Liying ZHANG. Experimental and Simulation Studies on Relation Between Graphene Thickness and Its Force-distance Curve[J]. Chinese Journal of Computational Physics, 2021, 38(4): 441-446.

Figures/Tables 5

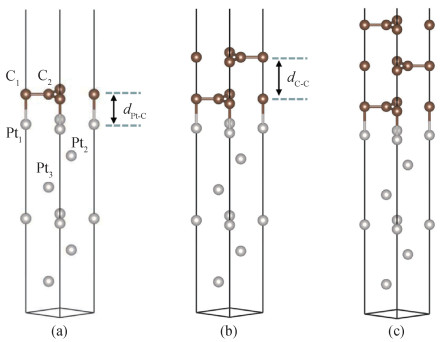

Fig.1 Coherent interface models of Pt(111) and single, double, and triple layer graphene

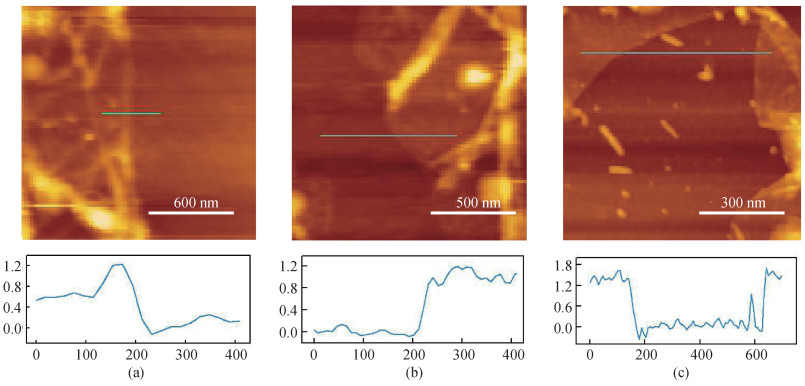

Fig.2 AFM images of graphene sheets with different thickness and height profiles (in nm) along the gray lines

Fig.3 AFM force-distance curve of graphene with height of 0.57 nm

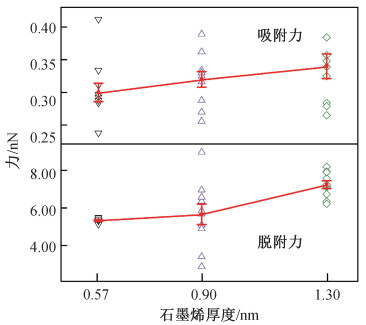

Fig.4 Experimental adsorption and desorption forces of graphene with different thickness, mean values and standard errors of mean

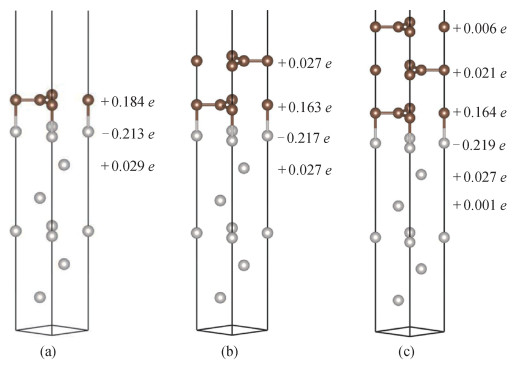

Fig.5 Calculated Mulliken population differences between Pt and (a) single, (b) double and (c) triple layer of graphene

References 23

1	HAO S, SUN X, SONG W, et al. Effect of thickness of modified grapheneepoxy coating on its properties[J]. Journal of Functional Materials, 2018, 49 (9): 09096- 09100.
2	MA R, ZHANG H L. Electronic properties of graphene nanoribbons doped with rhombus boron nitride segment[J]. Chinese Journal of Computational Physics, 2019, 36 (1): 99- 105.
3	江孝伟, 武华, 袁寿财. 基于金属光栅实现石墨烯三通道光吸收增强[J]. 物理学报, 2019, 68 (13): 276- 283.
4	MA J J, LI K X, ZHOU B C, et al. Defect location effect on tensile behavior of graphene[J]. Chinese Journal of Computational Physics, 2018, 35 (4): 475- 480.
5	WANG W, GAO J, ZHANG T, et al. Performance of asymmetric linear doping triple-material-gate GNRFETs[J]. Chinese Journal of Computational Physics, 2015, 32 (1): 115- 126.
6	冯颖, 黄世华, 康凯, 等. 石墨烯片的制备与表征[J]. 新型碳材料, 2011, 26 (1): 26- 30.
7	GUO H, WANG X Y, BAO D L, et al. Fabrication of large-scale graphene 2D-germanium heterostructure by intercalation[J]. Chinese Physics B, 2019, 28 (7): 78103. DOI
8	LI S Z, LI Q Y, CARPICK R W, et al. The evolving quality of frictional contact with graphene[J]. Nature, 2016, 539 (7630): 541- 545. DOI
9	PARTOENS B, PEETERS F M. From graphene to graphite: Electronic structure around the K point[J]. Physical Review B, 2006, 74 (7): 075404- 075409. DOI
10	YANG H P, YUAN W J, LUO J, et al. Modulation of magnetic and electrical properties of bilayer graphene quantum dots using rotational stacking faults[J]. Chinese Physics B, 2019, 28 (7): 78106- 78111. DOI
11	朱国安, 王靖辉, 谢中静, 等. 层数调控磷烯能带与光学性质的研究[J]. 原子与分子物理学报, 2018, 35 (6): 86- 96.
12	姚雅萱, 任玲玲, 高思田, 等. 石墨烯层数测量方法的研究进展[J]. 化学通报, 2015, 78 (2): 100- 106.
13	ZHANG Y P, PAN C X. Measurements of mechanical properties and number of layers of graphene from one nano-indentation[J]. Diamond and Related Materials, 2012, 24 (1): 1- 5.
14	QING Y, WANG J, LIU Z B, et al. Polarization-dependent optical absorption of graphene under total internal reflection[J]. Applied Physics Letters, 2013, 102 (2): 021912- 021916. DOI
15	华杰, 徐盛明, 徐景明, 等. 原子力显微镜测定力—距离曲线的原理和应用[J]. 金属矿山, 2003, 1 (1): 25- 30. DOI
16	FANG H H P, CHANG K Y, XU L C. Quantification of bacterial adhesion forces using atomic force microscopy[J]. Journal of Microbiological Methods, 2000, 40 (1): 89- 97. DOI
17	杨谦, 孙润广. 红细胞膜弹性特性的力曲线测量[J]. 中国科学: C辑, 2008, 38 (11): 1013- 1027. DOI
18	陈建, 金永中. 炭黑结构与活性研究[M]. 北京: 科学出版社, 2018: 195- 198.
19	TAVAZZA F, LEVINE L E. DFT investigation of early stages of nanoindentation in Ni[J]. The Journal of Physical Chemistry C, 2016, 24 (1): 13249- 13255.
20	XU Z, BUEHLER M J. Interface structure and mechanics between graphene and metal substrates: A first-principles study[J]. Journal of Physics: Condensed Matter, 2010, 22 (48): 485301- 485309. DOI
21	FU E G, FANG Y, ZHUO M J, et al. Interface structure of Nb films on single crystal MgO(100) and MgO(111) substrates[J]. Acta Materialia, 2014, 64 (1): 100- 112.
22	FANG Y, ZHANG L Y, ZHANG H L. Predicting the interface structure of Nb thin film grown on MgO(110) substrate[J]. Materials Letters, 2016, 183 (15): 338- 340.
23	PERDW J P, BURKE K, ERNZERHOF M. Generalized gradient approximation made simple[J]. Physical Review Letters, 1996, 77 (18): 3865- 3868. DOI
