Effect of Irradiation on Mechanical Properties of Polycrystalline Copper: Crystal Plasticity Finite Element Method

doi:10.19596/j.cnki.1001-246x.8342

Abstract

Abstract:

Based on irradiation hardening theory and crystal plasticity theory, tensile process of irradiated polycrystalline copper was simulated with ABAQUS finite element analysis software. Effects of irradiation on mechanical properties of materials such as yield strength, hardening process, crystal deformation are analyzed. Temporal evolution and spatial distribution of dislocation density are studied. It shows that: The yield stress of polycrystalline copper is increased with irradiation and hardening and softening phenomena in different stages are affected. The increase of irradiation dose slows the proliferation of dislocation density, and increases its spatial inhomogeneity. Plastic deformation and crystal rotation are also affected by irradiation. Under same strain condition, the greater the irradiation dose is, the greater the deformation degree is and the greater the inhomogeneity of plastic deformation distribution is. Meanwhile, with the increase of irradiation dose, the degree of crystal rotation and angular dispersion increases.

Key words: crystal plasticity finite element, irradiation effect, dislocation, deformation

Hongming LI, Maosheng LI. Effect of Irradiation on Mechanical Properties of Polycrystalline Copper: Crystal Plasticity Finite Element Method[J]. Chinese Journal of Computational Physics, 2022, 39(1): 6-16.

Figures/Tables 10

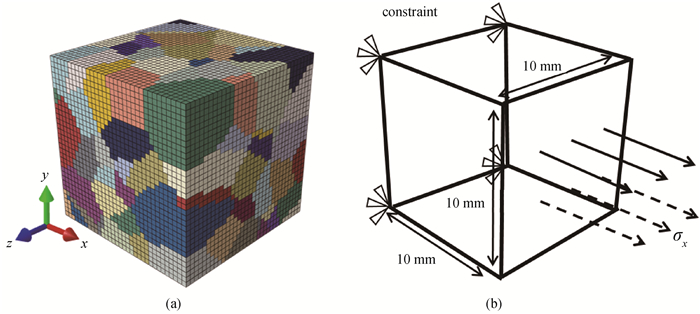

Fig.1 (a) Polycrystalline model; (b) Loading direction and boundary conditions

Table 1 Physical parameters

参量	符号	含义	值	单位
	k₁	位错增殖系数	2×10⁹	m^－1
	χ	相互作用参数	0.9
Kocks-Mecking参数	g	归一化激活能	0.15
Kocks-Mecking参数	k_B	玻尔兹曼常数	1.38×10^-23	J·K^-1
	D	拖曳力	2.5×10⁸	Pa
	$ \dot{\varepsilon}_0$	参考应变率	1×10⁷	s^－1
	η	辐照缺陷湮灭效率	20
	h_n	位错相互作用自硬化系数	0.5
	h_d	位错与缺陷相互作用系数	0.25
可调系数	τ₀	晶格固有阻力	0	Pa
	m	敏感因子	0.1
	$ \dot{\gamma}_0$	参考剪切应变率	0.001	s^－1
	p_ann	缺陷湮灭概率	4.2811×10^-4

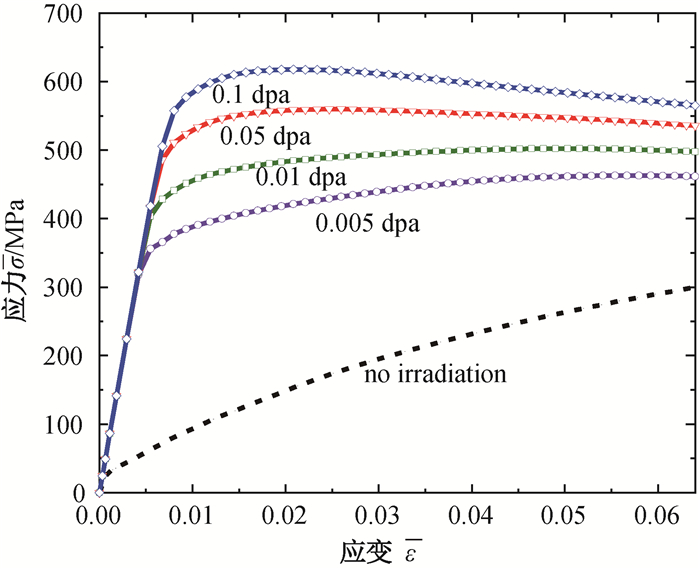

Fig.2 Stress-strain curves under different irradiation doses

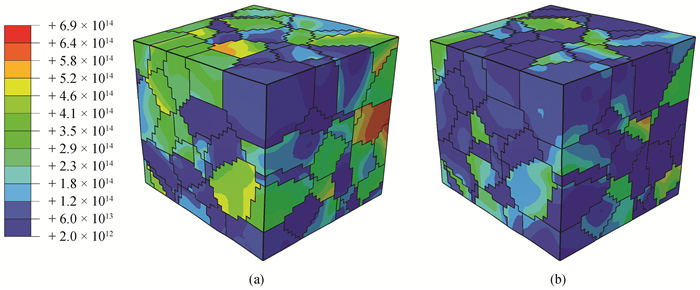

Fig.3 Contour plots of dislocation density without irradiation (a) (1 1 1)[0-1 1]slip system dislocation; (b) (-1 1 1)[1 1 0]slip system dislocation

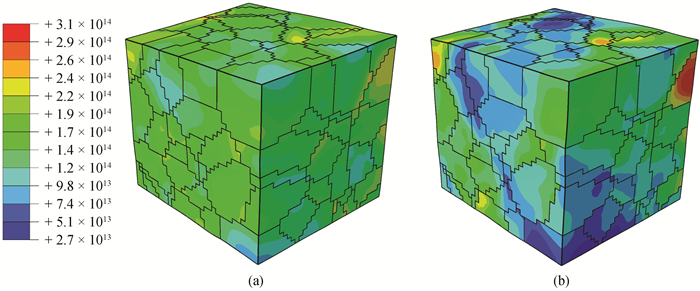

Fig.4 Contour plots of average dislocation density of each slip system (a) no irradiation; (b) 0.1dpa

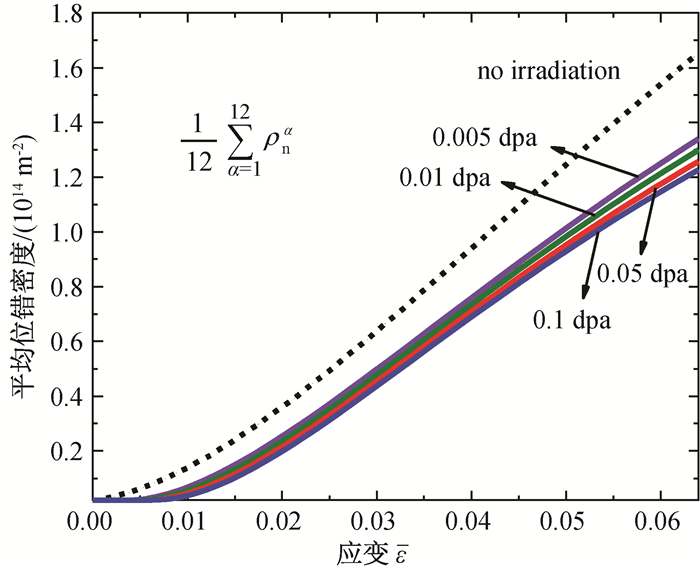

Fig.5 Evolution of average dislocation density under different irradiation conditions

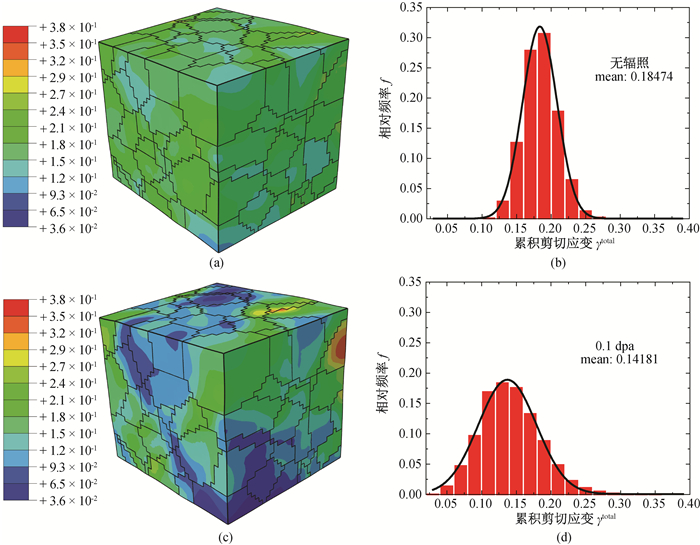

Fig.6 Contour plots and frequency statistics of cumulative shear strain distribution (a) no irradiation; (b) no irradiation; (c) 0.1 dpa; (d) 0.1 dpa

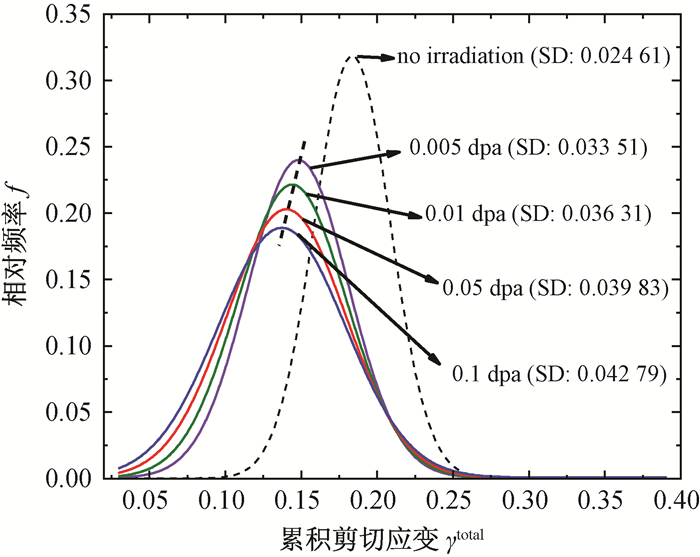

Fig.7 Gaussian distribution of cumulative shear strain under different irradiation doses

Fig.8 Contour plots of misorientation under different irradiation doses (a) no irradiation; (b) 0.005 dpa; (c) 0.01 dpa; (d) 0.1 dpa

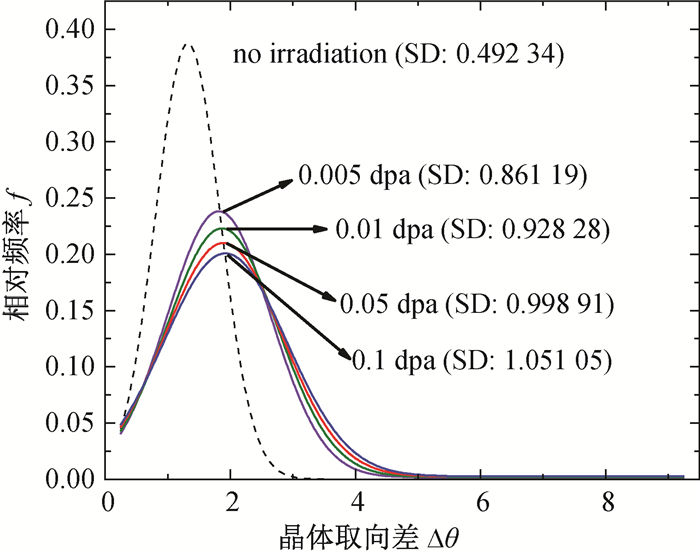

Fig.9 Gaussian distribution fitting curves of misorientation under different irradiation doses

References 37

1	TANG P , ZHENG Q , LI J , et al. Cluster dynamics modeling with spatial correlations in cascades[J]. Chinese Journal of Computational Physics, 2019, 36 (5): 586- 594.
2	STARIKOV S V , INSEPOV Z , REST J , et al. Radiation-induced damage and evolution of defects in Mo[J]. Phys Rev B, 2011, 84 (10): 104- 109.
3	ARAKAWA K , ONO K , ISSHIKI M , et al. Observation of the one-dimensional diffusion of nanometer-sized dislocation loops[J]. Science, 2007, 318 (5852): 956- 959. DOI
4	GARNER F A , TOLOCZKO M B , SENCER B H . Comparison of swelling and irradiation creep behavior of fcc-austenitic and bcc-ferritic/martensitic alloys at high neutron exposure[J]. Journal of Nuclear Materials, 2000, 276 (1-3): 123- 142. DOI
5	SAMARAS M , DERLET P M , SWYGENHOVEN H V , et al. Stacking fault tetrahedra formation in the neighbourhood of grain boundaries[J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 2003, 202: 51- 55.
6	UBERUAGA B P , HOAGLAND R G , VOTER A F , et al. Direct transformation of vacancy voids to stacking fault tetrahedra[J]. Physical Review Letters, 2007, 99 (13): 135- 501.
7	SINGH B N , HORSEWELL A , TOFT P , et al. Temperature and dose dependencies of microstructure and hardness of neutron irradiated OFHC copper[J]. Journal of Nuclear Materials, 1995, 224 (2): 131- 140. DOI
8	SATOH Y , YOSHIIE T , MORI H , et al. Formation of stacking-fault tetrahedra in aluminum irradiated with high-energy particles at low-temperatures[J]. Physical Review B: Condensed Matter, 2004, 69 (9): 094- 108.
9	FABRITSIEV S A , POKROVSKY A S . Effect of irradiation temperature and dose on SHC of pure Cu[J]. Journal of Nuclear Materials, 2009, 386: 268- 272.
10	PATRA A , MCDOWELL D L . Continuum modeling of localized deformation in irradiated bcc materials[J]. Journal of Nuclear Materials, 2013, 432 (1-3): 414- 427. DOI
11	LUFT A . Microstructural processes of plastic instabilities in strengthened metals[J]. Progress in Materials Science, 1991, 35: 97- 204. DOI
12	ANIRBAN P , DAVID L M . A void nucleation and growth based damage framework to model failure initiation ahead of a sharp notch in irradiated bcc materials[J]. Journal of the Mechanics and Physics of Solids, 2015, 74: 111- 135. DOI
13	MARIAN J , MARTINEZ E , LEE H J , et al. Micro/meso-scale computational study of dislocation-stacking-fault tetrahedron interactions in copper[J]. Journal of Materials Research, 2009, 24 (12): 3628- 3635. DOI
14	OSETSKY Y N , STOLLER R E , RODNEY D , et al. Atomic-scale details of dislocation-stacking fault tetrahedra interaction[J]. Materials Science and Engineering A: Structural Materials, 2005, 400/401 (Jul): 370- 373.
15	LIANG H , LI M . Molecular dynamics study of mechanical properties of single crystal aluminum with voids and vacancies[J]. Chinese Journal of Computational Physics, 2019, 36 (2): 211- 218.
16	QI M , YANG Q , WANG C , et al. Parallel algorithm on GPU and optimization for molecular dynamics simulation of irradiation damage of structure materials[J]. Chinese Journal of Computational Physics, 2017, 34 (4): 461- 467.
17	ARSENLIS A , WIRTH B D , RHEE M . Dislocation density-based constitutive model for the mechanical behavior of irradiated Cu[J]. Philosophical Magazine, 2004, 84 (34): 3617- 3635. DOI
18	KRISHNA S , ZAMIRI A , DE S . Dislocation and defect density-based micromechanical modeling of the mechanical behavior of fcc metals under neutron irradiation[J]. Philosophical Magazine, 2010, 90 (30): 4013- 4025. DOI
19	RAHUL , DE S . Multiscale modeling of irradiated polycrystalline FCC metals[J]. International Journal of Solids & Structures, 2014, 51 (23/24): 3919- 3930.
20	BARTON N R , ARSENLIS A , MARIAN J . A polycrystal plasticity model of strain localization in irradiated iron[J]. Journal of the Mechanics & Physics of Solids, 2013, 61 (2): 341- 351.
21	XIAO X , SONG D , XUE J , et al. A size-dependent tensorial plasticity model for FCC single crystal with irradiation[J]. International Journal of Plasticity, 2015, 65: 152- 167. DOI
22	XIAO X , SONG D , XUE J , et al. A self-consistent plasticity theory for modeling the thermo-mechanical properties of irradiated FCC metallic polycrystals[J]. Journal of the Mechanics & Physics of Solids, 2015, 78: 1- 16.
23	CHEN L R , XIAO X Z , LONG Y , et al. Texture evolution and mechanical behaviour of irradiated face-centred cubic metals[J]. Proc Math Phys Eng, 2018, 474 (2210): 20170604.
24	ARDELJAN M , BEYERLEIN I J , MCWILLIAMS B A , et al. Strain rate and temperature sensitive multi-level crystal plasticity model for large plastic deformation behavior: Application to AZ31 magnesium alloy[J]. International Journal of Plasticity, 2016, 83: 90- 109. DOI
25	LATYPOV M I , SHIN S , DE COOMAN B C , et al. Micromechanical finite element analysis of strain partitioning in multiphase medium manganese TWIP+TRIP steel[J]. Acta Materialia, 2016, 108: 219- 228. DOI
26	TAYLOR G I . Plastic strain in metals[J]. Journal of Institute of Metals, 1938, 62: 307- 324.
27	HILL R , RICE J . Constitutive analysis of elastic-plastic crystals at arbitrary strain[J]. Journal of the Mechanics and Physics of Solids, 1972, 20 (6): 401- 413. DOI
28	ASARO R J , RICE J . Strain localization in ductile single crystals[J]. Journal of the Mechanics and Physics of Solids, 1977, 25 (5): 309- 338. DOI
29	HUTCHINSON J W . Bounds and self-consistent estimates for creep of polycrystalline materials[J]. Proceedings of The Royal Society A, 1976, 348 (1652): 101- 127.
30	MECKING H , KOCKS U F . Kinetics of flow and strain-hardening[J]. Acta Metallurgica, 1981, 29 (11): 1865- 1875. DOI
31	BEYERLEIN I J , TOMÉ C N . A dislocation-based constitutive law for pure Zr including temperature effects[J]. International Journal of Plasticity, 2008, 24 (5): 867- 895. DOI
32	HUANG Y G . A user-material subroutine incorporating single crystal plasticity in the ABAQUS finite element program[M]. Cambridge: Harvard University Press, 1991.
33	VARSHNI Y P . Temperature dependence of the elastic constants[J]. Physical Review B, 1970, 2 (10): 3952- 3958. DOI
34	CHEONG K S , BUSSO E P . Discrete dislocation density modelling of single phase FCC polycrystal aggregates[J]. Acta Materialia, 2004, 52 (19): 5665- 5675. DOI
35	KIENER D , MINOR A M . Source-controlled yield and hardening of Cu(100) studied by in situ transmission electron microscopy[J]. Acta Materialia, 2011, 59 (4): 1328- 1337. DOI
36	SINGH B N , EDWARDS D J , TOFT P . Effect of neutron irradiation and post-irradiation annealing on microstructure and mechanical properties of OFHC-copper[J]. Journal of Nuclear Materials, 2001, 299 (3): 205- 218. DOI
37	LI L T , LIN Y C , LI L , et al. Three-dimensional crystal plasticity finite element simulation of hot compressive deformation behaviors of 7075 Al alloy[J]. Journal of Materials Engineering & Performance, 2015, 24 (3): 1294- 1304.
