Application of Grey System Theory in Approximate Calculation of Wave Packet Evolution

doi:10.19596/j.cnki.1001-246x.8361

Abstract

Abstract:

Based on the grey system theory, we replace the time response function of GM (1, 1) model for wave packet distribution, and obtain simulated evolution behavior of wave packet's wave function with mathematical techniques such as variational method, and make error analysis and correction. In practical applications, the approximate evolution behavior of wave function can be obtained with parameters of its development coefficient. Gaussian wave packet is taken as an example to show the method. The grey system theory in mathematical modeling is introduced into the calculation of physics, and an approximate calculation method is provided, which can be used in the calculation of wave packet evolution.

Key words: wave packet, evolution, grey system, mathematical modeling

Jiayu NI, Dehong GAO, Linfeng YE, Xiangdong FENG. Application of Grey System Theory in Approximate Calculation of Wave Packet Evolution[J]. Chinese Journal of Computational Physics, 2022, 39(2): 201-211.

Figures/Tables 8

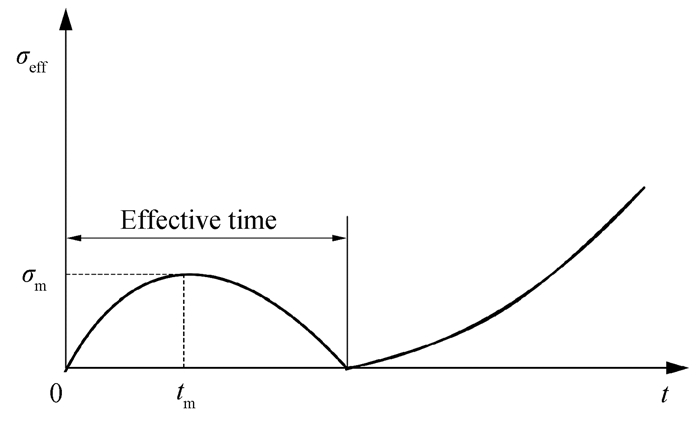

Fig.1 A schematic of relative error function of the variance

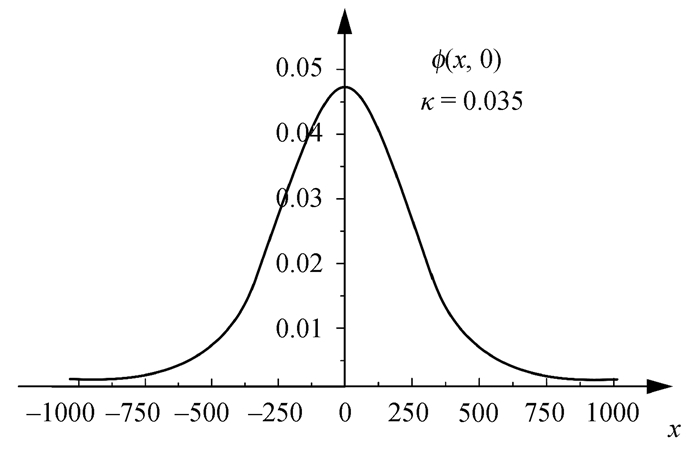

Fig.2 Wave function of a photon in which the part falling in the interval [-1000, 1000] is 99.8% of the whole

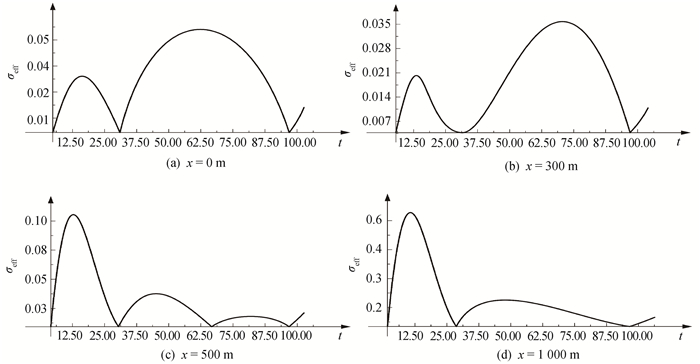

Fig.3 Relative error functions of gray wave function and wave function at 0, 300, 500, 1000 m

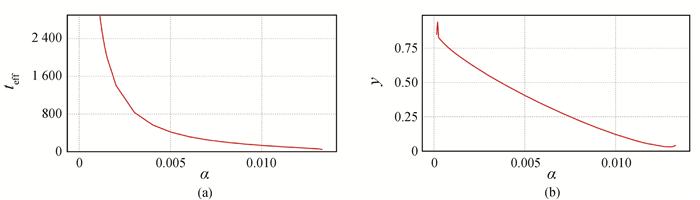

Fig.4 (a) The effective time decreases rapidly as the development factor α increases; (b) The average relative error in effective time decreases continuously as the development factor α increases

Fig.5 Comparison between gray wave function and wave function (The fatter and shorter wave packets are described with the gray wave function over time.)

Fig.6 The relative error of φG and φ at the final moment of effective time t=95.43 s

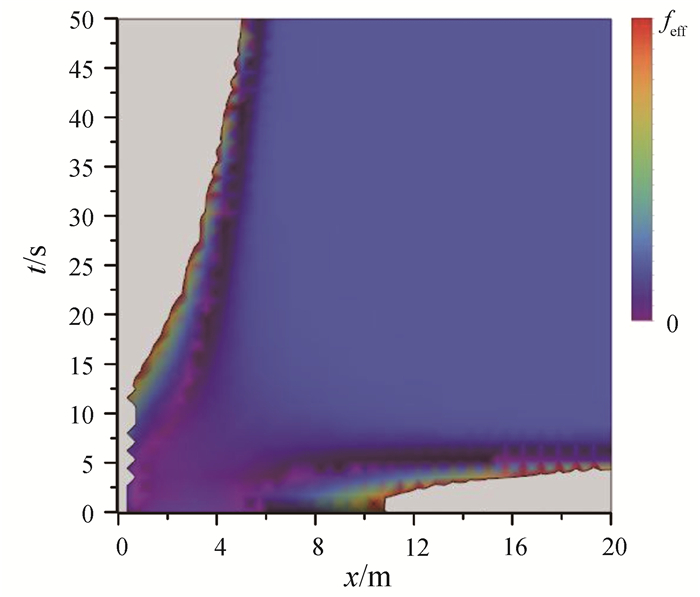

Fig.7 Relative error function of Kawahara wave

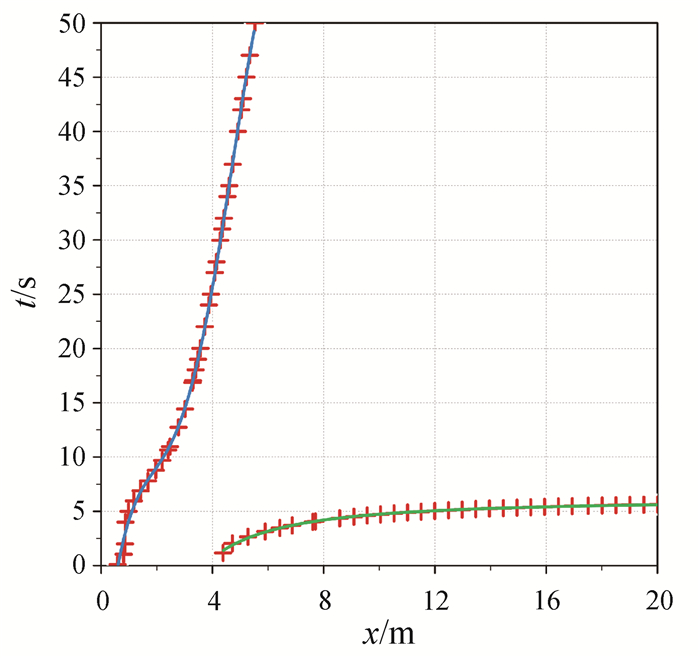

Fig.8 The figure of fit effect (The red markers are data points. The blue and green lines are fit functions.)

References 27

1	CHOU C C . Hydrodynamic analysis of the Schrödinger-Langevin equation for wave packet dynamics[J]. Physics Letters A, 2017, 381 (39): 3384- 3390. DOI
2	CAVALIERI A V , JORDAN P , LESSHAFFT L . Wave-packet models for jet dynamics and sound radiation[J]. Applied Mechanics Reviews, 2019, 71 (2): 802.
3	HADER C , FASEL H F . Three-dimensional wave packet in a Mach 6 boundary layer on a flared cone[J]. Journal of Fluid Mechanics, 2020, 885, R3. DOI
4	WANG L , ZONG J , WANG X L , et al. Solitary waves with double kinks of mBBM equation and their dynamical stabilities[J]. Chinese Journal of Computaional Physics, 2016, 33 (2): 212- 220.
5	NESTOR S , HOUWE A , REZAZADEH H , et al. New solitary waves for the Klein-Gordon-Zakharov equations[J]. Modern Physics Letters B, 2020, 34 (23): 205- 216.
6	VERNIERO J L , HOWES G G . The Alfvénic nature of energy transfer mediation in localized, strongly nonlinear Alfvén wavepacket collisions[J]. Journal of Plasma Physics, 2018, 84 (1): 94- 109.
7	KUNNUS K , VACHER M , HARLANG T C , et al. Vibrational wavepacket dynamics in Fe carbene photosensitizer determined with femtosecond X-ray emission and scattering[J]. Nature Communications, 2020, 11 (1): 1- 11. DOI
8	VILLENEUVE D M , HOCKETT P , VRAKKING M J , et al. Coherent imaging of an attosecond electron wave packet[J]. Science, 2017, 356 (6343): 1150- 1153. DOI
9	TUTUNNIKOV I , RAJITHA K V , VORONIN A Y , et al. Impulsively excited gravitational quantum states: Echoes and time-resolved spectroscopy[J]. Physical Review Letters, 2021, 126 (17): 170403. DOI
10	SHU C C , HONG Q Q , GUO Y , et al. Orientational quantum revivals induced by a single-cycle terahertz pulse[J]. Physical Review A, 2020, 102 (6): 063124. DOI
11	YAR A , KHAN S U . Chaotic transport of electron wave packet in Weyl semimetal slab[J]. Physical Review E, 2019, 99 (5): 052213. DOI
12	LI X . A modified surface hopping method for Schrödinger equation with conical crossings[J]. Chinese Journal of Computaional Physics, 2019, 36 (1): 113- 126.
13	LIU S F . Emergence and development of grey system theory and its forward trends[J]. Journal of Nanjing University of Aeronautics and Astronautics, 2004, (02): 267- 272.
14	LIU S F, FORREST J, YANG Y. A brief introduction to grey systems theory[C]. IEEE International Conference on Grey Systems and Intelligent Services, 2011: 1-9.
15	倪嘉雨, 涂缘. 基于高阶AGO生成的GM (1, 1)模型[EB/OL]. http://www.chinaxiv.org/ChinaXiv:202105.00041.pdf.
16	WANG L , ZHU G W , YANG W Q , et al. Forecasting of mid-long-term daily load curve based on grey neural network and grey relational degree[J]. Engineering Journal of Wuhan University, 2019, 52 (01): 58- 70.
17	LIU S F , ZENG B , LIU J F , et al. Study on several basic forms and application scope of GM (1, 1) model[J]. Systems Engineering, 2014, 36 (03): 501- 508.
18	LI Y J . Lecture notes on functional analysis[M]. Beijing: Science Press, 2011.
19	SRIDHAR V , ELLIOTT R L . On the development of a simple downwelling longwave radiation scheme[J]. Agricultural and Forest Meteorology, 2002, 112 (3/4): 237- 243.
20	TIMOTHY S. Numerical analysis[M]. PEI Y, MA G, Transl. Beijing: China Machine Press, 2014.
21	MAO S S . Advanced mathematical statistics[M]. Beijing: Higher Education Press, 2006.
22	ORON A . Three-dimensional nonlinear dynamics of thin liquid films[J]. Physical Review Letters, 2000, 85 (10): 2108. DOI
23	CAO Q , XIAO D , YANG X , WANG J . Numerical simulation on nonlinear evolution of magneto-Rayleigh-Taylor instability[J]. Chinese Journal of Computaional Physics, 2021, 38 (1): 5- 15.
24	KAWAHARA T . Oscillatory solitary waves in dispersive media[J]. Journal of the Physical Society of Japan, 1972, 33 (1): 260- 264. DOI
25	CHI L M G , NA R M D L , HAN Y C . Numerical study on stable propagation of solitary wave in viscous fluid media[J]. Journal of Inner Mongolia University for Nationalities, 2017, 32 (02): 101- 105.
26	DELKHOSH , RAHMANZADEH M . Solving nonlinear differential equations in astrophysics and fluid mechanics using the generalized pseudo spectral method[J]. SeMA Journal, 2021, 1- 18.
27	WANG L , LI H . Numerical solution of the modified Kawahara equation using sinc collocation method[J]. International Journal of Nonlinear Science, 2020, 30 (2/3): 153- 162.
