A Three-dimensional Neutron Diffusion Nodal Solver Based on 2D Generic Transverse Integrate Fused with 1D Semi-analytical Nodal Method

doi:10.19596/j.cnki.1001-246x.8377

Abstract

Abstract:

The nodal expansion method (NEM) based on transverse integrated technique is widely used in liquid water reactor core design. It uses an empirical transverse leakage polynomial approximation. Furthermore, it requires pin power reconstruction model for pin power within the assembly. A generic transverse integrate proposed in this work avoids the above shortages. Since the core heterogeneous usually happens in radial direction, the 3D neutron diffusion equation is solved with 2D generic transverse integrate fused with traditional 1D semi-analytical nodal method. With IAEA 2D/3D benchmark problem, the method is demonstrated correct and feasible for core neutron diffusion calculations.

Key words: generic transverse integrate, nodal method, neutron diffusion, semi-analytical

Zhiyong LI. A Three-dimensional Neutron Diffusion Nodal Solver Based on 2D Generic Transverse Integrate Fused with 1D Semi-analytical Nodal Method[J]. Chinese Journal of Computational Physics, 2022, 39(2): 153-158.

Figures/Tables 5

References 7

1	LIAO C K. Study on numerical method for three dimensional nodal space-time neutron kinetics equations and coupled neutronic/thermal-hydraulic core transient analysis [D]. Xi′an: Xi′an Jiaotong University, 2002.
2	ZIMIN V G, NINOKATA H, POGOSBEKYAN L R. Polynomial and semi-analytic nodal methods for nonlinear iteration procedure [C]. Proc Int Conf Phys Nuclear Science and Technology (PHYSOR-98), Long Island, NY, October 5-8, 1998: 994-1002.
3	HU Y M , ZHAO X F . A new nodal Green's function method for cylindrical geometry[J]. Chinese Journal of Computational Physics, 1997, 14 (4): 429- 430.
4	CHENG P D . Partial flux expansion techniques for some advanced nodal methods[J]. Chinese Journal of Computational Physics, 2001, 18 (5): 451- 456.
5	LI Z Y . Full core pin by pin neutron diffusion nodal method based on CMFD acceleration[J]. Chinese Journal of Computational Physics, 2019, 36 (3): 317- 322.
6	DOWNAR T, LEE D, XU Y, et al. PARCS v2.6 US NRC core neutronics simulator theory manual [R]. US: School of Nuclear Engineering Purdue University, 2004.
7	CHAO Y A , PENG L H , TANG C T . A new and rigorous SPN theory, Part Ⅳ: Numerical qualification of GSP30 and the generalized transverse integration nodal method[J]. Annals of Nuclear Energy, 2020, 149, 1- 16.

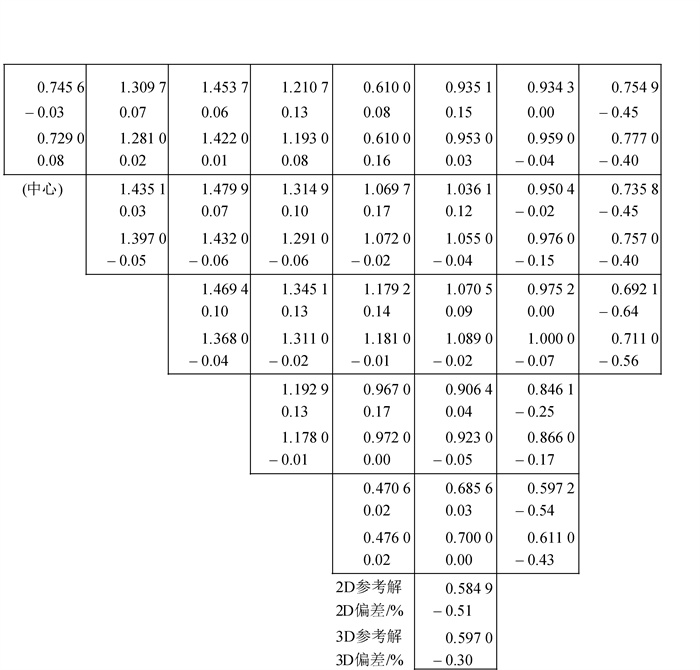

	方法	k_eff	偏差/pcm	平均偏差ε_avg^a/%	最大偏差ε_max^b/%	计算时间/s
IAEA-2D	参考解	1.029 58
IAEA-2D	本文	1.029 49	-9	0.16	-0.64	0.15
IAEA-3D	参考解	1.029 03
IAEA-3D	本文	1.028 99	-4	0.11	-0.56	7.37

	方法	k_eff	偏差/pcm	平均偏差ε_avg^a/%	最大偏差ε_max^b/%	计算时间/s
IAEA-2D	参考解	1.029 58
IAEA-2D	本文	1.029 49	-9	0.16	-0.64	0.15
IAEA-3D	参考解	1.029 03
IAEA-3D	本文	1.028 99	-4	0.11	-0.56	7.37

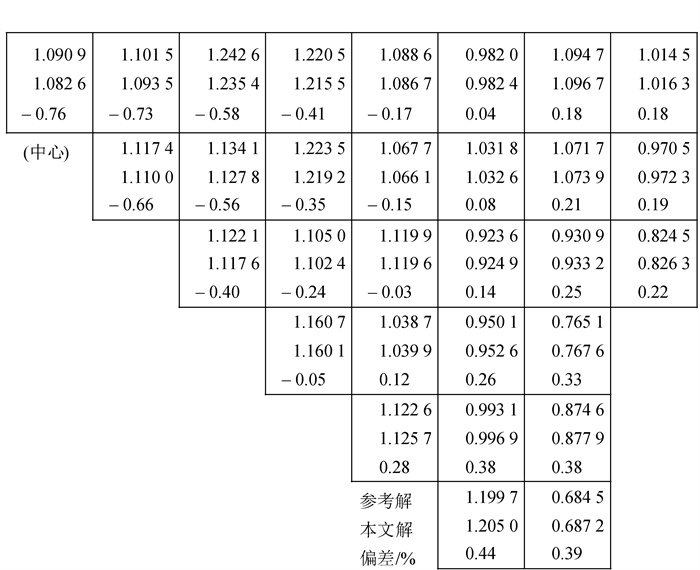

	方法	k_eff	偏差/pcm	平均偏差ε_avg^a/%	最大偏差ε_max^b/%	计算时间/s
BIBLIS-2D	参考解	1.025 110
BIBLIS-2D	本文	1.025 095	-1.5	0.30	-0.76	0.21
LMW-3D	参考解	0.999 660
LMW-3D	本文	0.999 719	+5.9	0.03	-0.09	0.87

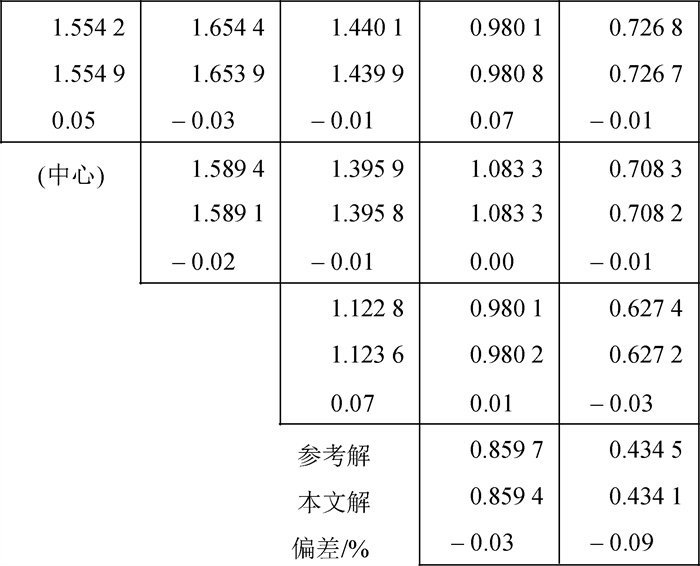

	方法	k_eff	偏差/pcm	平均偏差ε_avg^a/%	最大偏差ε_max^b/%	计算时间/s
BIBLIS-2D	参考解	1.025 110
BIBLIS-2D	本文	1.025 095	-1.5	0.30	-0.76	0.21
LMW-3D	参考解	0.999 660
LMW-3D	本文	0.999 719	+5.9	0.03	-0.09	0.87
