A Multi-time-step Discrete Element Method for Bar Structures

doi:10.19596/j.cnki.1001-246x.8427

Abstract

Abstract:

To improve computational efficiency of discrete element method(DEM), referring to domain decomposition method and sub-cycle method in finite element method, a discrete element partition asynchronous time step computing method based on overlapping particles was proposed to deal with continuous medium problems. In the method, the continuum is divided into sub-domains. The velocity-Verlet integral scheme is used to solve the motion equation in sub-domains. Local action regions are formed with overlapping particles in adjacent sub-domains. Interpolation and truncation are not involved in transfer process of boundary data. Numerical examples show that accuracy of the method is high and the computation time is reduced effectively. In practical application, continuous media could be divided into several sub-domains with different particles size, and different time steps are adopted according to particle size characteristics of the sub-domains, with which storage space could be saved and computing efficiency improved greatly.

Key words: discrete element method, linked bar, overlapping particles, asynchronous step, continuous medium

Tong LI, Qian WANG, Xian-long JIN. A Multi-time-step Discrete Element Method for Bar Structures[J]. Chinese Journal of Computational Physics, 2022, 39(4): 395-402.

Figures/Tables 10

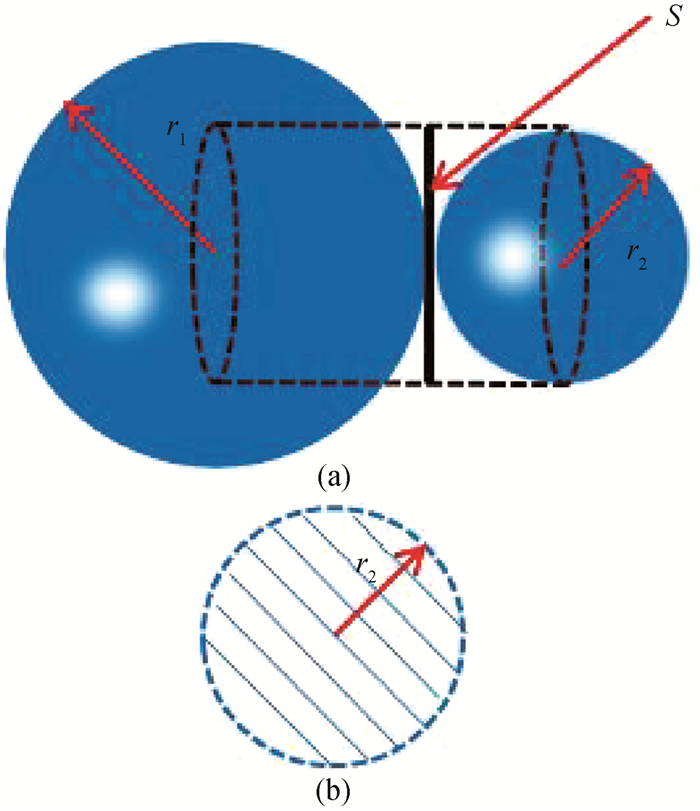

Fig.1 Model of linked bar (a) linked bar of spherical particles; (b) equivalent contact area of spherical particles

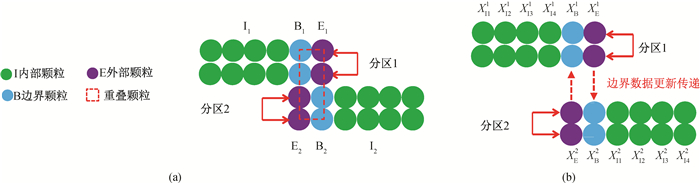

Fig.2 (a) Particle division with overlapping boundaries and update and (b) transfer of boundary data

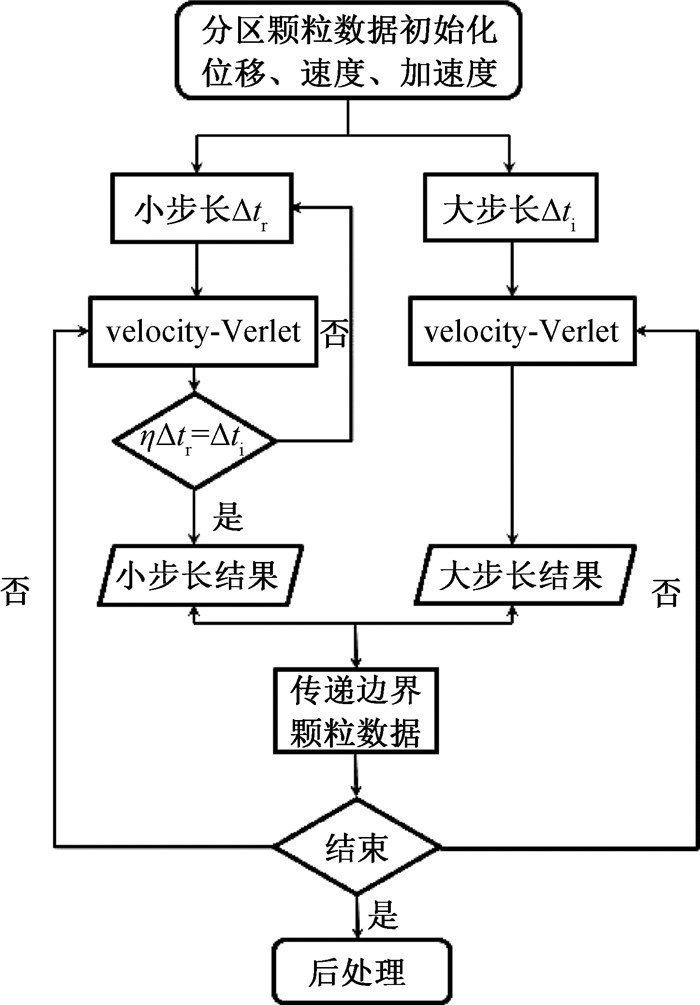

Fig.3 Multi-time step calculation flow of different partitions

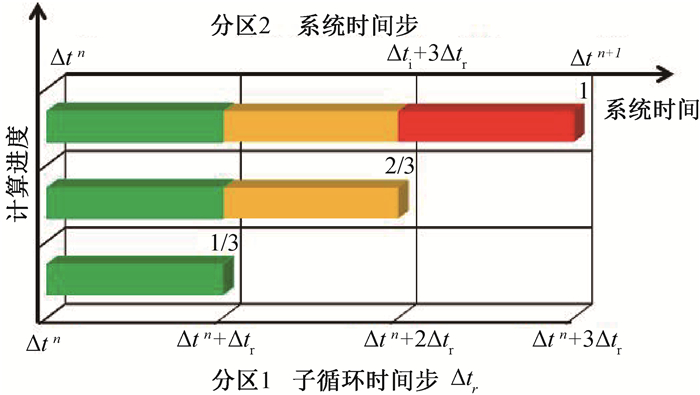

Fig.4 Update order of boundary particles data

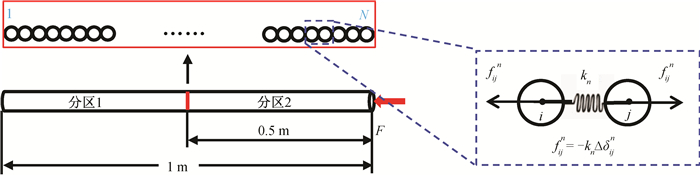

Fig.5 Region division of a uniform cross section rod and interaction between pairs of adjacent particles i and j

Fig.6 Stress-wave propagation through a slender rod calculated with different methods

Fig.7 Axial displacement curves of free end calculated with different methods

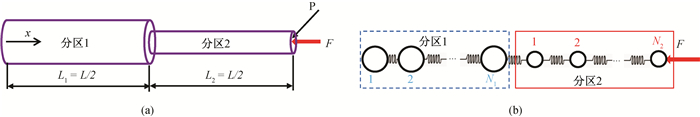

Fig.8 A step-cross section rod subjected to axial concentrated load (a) Region division of rod and axial load of point P; (b) Particle partition of elastic rod

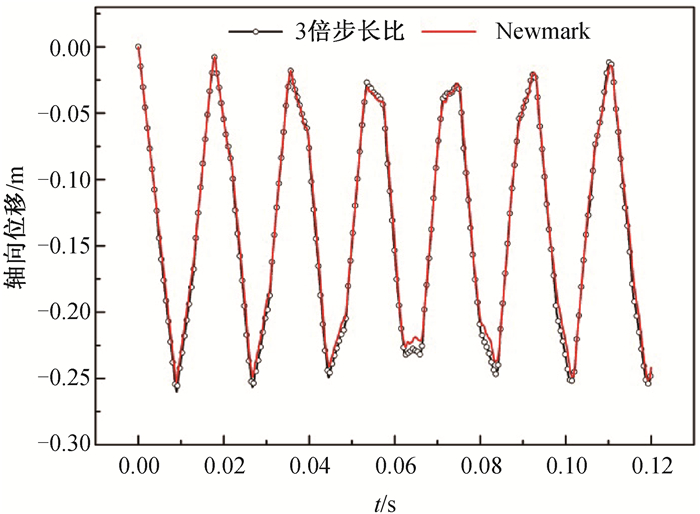

Fig.9 Axial displacement response of the free end of a step-cross section rod calculated with different methods

Table 1 Computational times with different time step ratios

计算方法		求解时间/s	时间比率/%
Newmark		216.2	100
同步长		176.4	81.6
异步长	η=3	117.4	54.3
	η=5	62.9	29.1
	η=8	55.6	25.7
	η=10	47.3	21.9
	η=12	12.3	5.7

References 30

1	徐泳, 孙其诚, 张凌, 等. 颗粒离散元法研究进展[J]. 力学进展, 2003, 33 (2): 251- 260. DOI
2	DMITRY P , NIR S , HAIM K . Simplified model for particle collision related to attrition in pneumatic conveying[J]. Advanced Powder Technology, 2020, 31 (1): 359- 369.
3	FAN T , LIU M L , MA H Q , et al. DEM simulation for separating coated fuel particles by inclined vibrating plate[J]. Powder Technology, 2020, 366, 261- 274.
4	YANG X D , ZHAO L L , LI H X , et al. DEM study of particles flow on an industrial-scale roller screen[J]. Advanced Powder Technology, 2020, 31 (11): 4445- 4456. DOI
5	LU Y , TAN Y , LI X . Stability analyses on slopes of clay-rock mixtures using discrete element method[J]. Engineering Geology, 2018, 244 (3): 116- 124.
6	YU Y , CAO X X , YANG J , et al. Delayed fracture of porous ceramics under shock-wave compression[J]. Engineering Fracture Mechanics, 2019, 208 (1): 38- 44.
7	LIU C , SHI Y , LIANG X H . DEM study on hot spots formation of heterogeneous explosives under shock loading[J]. Chinese Journal of Computational Physics, 2014, 31 (5): 523- 530.
8	冯春, 李世海, 刘晓宇. 基于颗粒离散元法的连接键应变软化模型及其应用[J]. 力学学报, 2016, 48 (1): 76- 85. DOI
9	ÁLVARO R G . The discrete element method in silo/bin research: Recent advances and future trends[J]. Particulate Science and Technology, 2018, 38 (2): 210- 227.
10	齐念, 叶继红. 基于离散元法的杆系结构几何非线性大变形分析[J]. 东南大学学报: 自然科学版, 2013, 43 (5): 917- 922.
11	齐念, 叶继红. 弹性DEM方法在杆系结构中的应用研究[J]. 工程力学, 2017, 34 (7): 11- 20.
12	SUN S W , DENG X L , ZHAO M C , et al. Numerical simulation on collision characteristics of micro-sized particles[J]. Chinese Journal of Computational Physics, 2019, 36 (6): 631- 640.
13	孙其诚, 王光谦. 颗粒物质力学导论[M]. 北京: 科学出版社, 2009.
14	YIN L , YANG C , MA S Z . Parallel numerical simulation of thermal convection in the Earth's outer core based on domain decomposition and multigrid[J]. Chinese Journal of Computational Physics, 2019, 36 (1): 1- 14.
15	LAURENT M , LIESBRTH T , PATRICK S , et al. Analysis of several subcycling schemes in partitioned simulations of a strongly coupled fluid-structure interaction[J]. International Journal for Numerical Methods in Fluids, 2019, 89 (6): 181- 195.
16	SUN X , ARIZA M P , ORTIZ M , et al. Acceleration of diffusive molecular dynamics simulations through mean field approximation and subcycling time integration[J]. Journal of Computational Physics, 2017, 350, 470- 492.
17	LI S J , BRUN M , DJERAN-MAIGRE I , et al. Explicit/implicit multi-time step co-simulation in unbounded medium with Rayleigh damping and application for wave barrier[J]. European Journal of Environmental and Civil Engineering, 2020, 24 (14): 2400- 2421.
18	MICHAL B , TOMÁŠ K , JAROSLAV K . A FETI-based mixed explicit-implicit multi-time-step method for parabolic problems[J]. Journal of Computational and Applied Mathematics, 2018, 333 (1): 247- 265.
19	马志强, 楼云峰, 李俊杰, 等. 基于多重节点的结构动力学显式异步长并行计算方法[J]. 上海交通大学学报, 2019, 53 (9): 1100- 1106.
20	MA Z Q , LOU Y F , LI J J , et al. An explicit asynchronous step parallel computing method for finite element analysis on multi-core clusters[J]. Engineering with Computers, 2020, 36 (2): 443- 453.
21	MA Z Q , KONG L S , JIN X L . An explicit-implicit mixed staggered asynchronous step integration algorithm in structural dynamics[J]. Computer Modeling in Engineering & Sciences, 2018, 116 (1): 51- 67.
22	季顺迎. 计算颗粒力学及工程应用[M]. 北京: 科学出版社, 2018.
23	LIU L , JI S Y . Bond and fracture model in dilated polyhedral DEM and its application to simulate breakage of brittle materials[J]. Granular Matter, 2019, 21 (3): 1- 16.
24	GUSEV A A . Physically admissible rules of evolution for discrete representations of continuous media[J]. Journal of Non-Crystalline Solids, 2006, 352 (42-49): 4880- 4883.
25	LI T , CAO X X , WANG Q , et al. Numerical modeling of dynamic response and microcracking in shock-loaded polycrystalline transparent ceramic[J]. Journal of Applied Physics, 2021, 129 (20)
26	周东, 张青波, 李世海. 基于SEM的可变形块体离散元法研究[J]. 科技创新导报, 2016, 13, 181.
27	ZHAO G F . Modelling 3D jointed rock masses using a lattice spring model[J]. International Journal of Rock Mechanics & Mining Sciences, 2018, 78, 79- 90.
28	谢鹏, 徐立, 尹俊辉, 等. 基于有限元的区域分解方法在永磁聚焦系统仿真中的应用[J]. 电子与信息学报, 2021, 43 (2): 488- 494.
29	马志强, 楼云峰, 金先龙. 考虑边界稳定的结构振动显式多时间步长计算方法[J]. 振动工程学报, 2019, 32 (6): 1041- 1049.
30	CHOPRA A K . Dynamics of structures: Theory and applications to earthquake engineering[M]. New Jersey: Prentice Hall, 2007.
