First-principles Study of Structures, Mechanical Properties and Electronic Properties of Quaternary Hf-Ta-C-N System

doi:10.19596/j.cnki.1001-246x.8543

Abstract

Abstract:

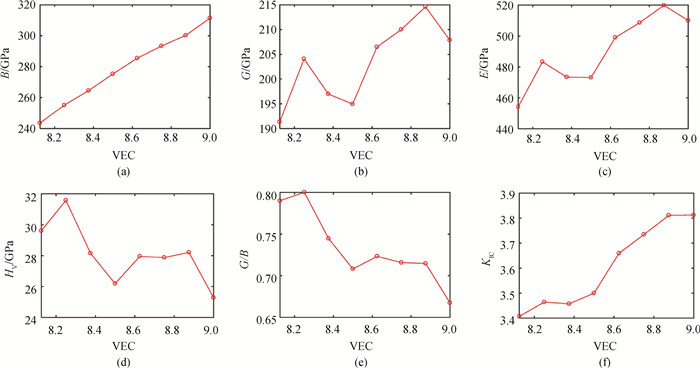

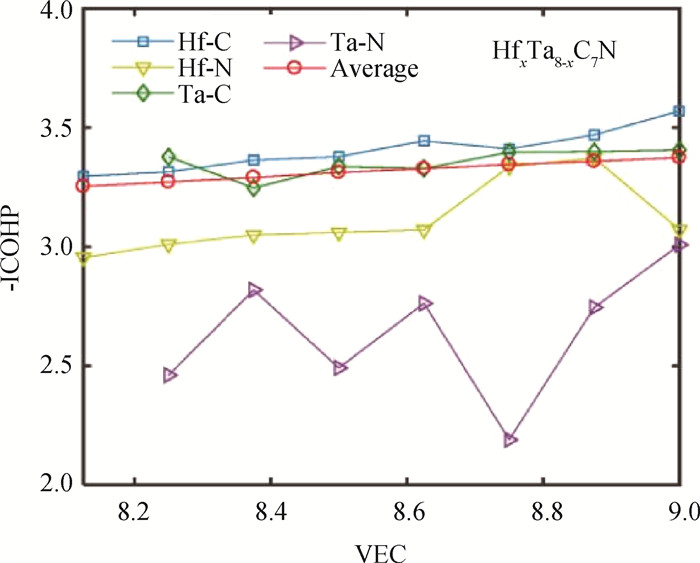

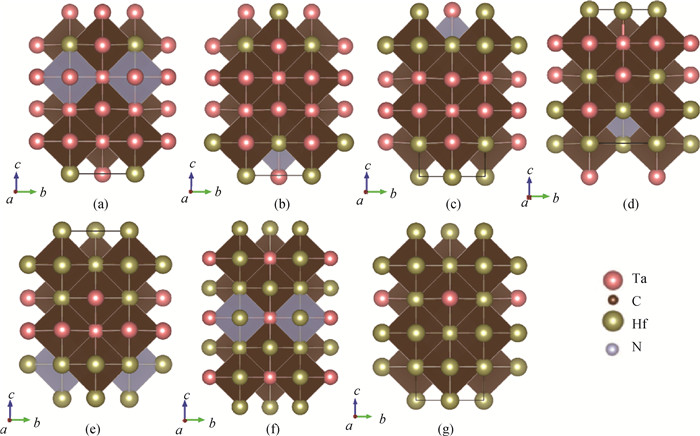

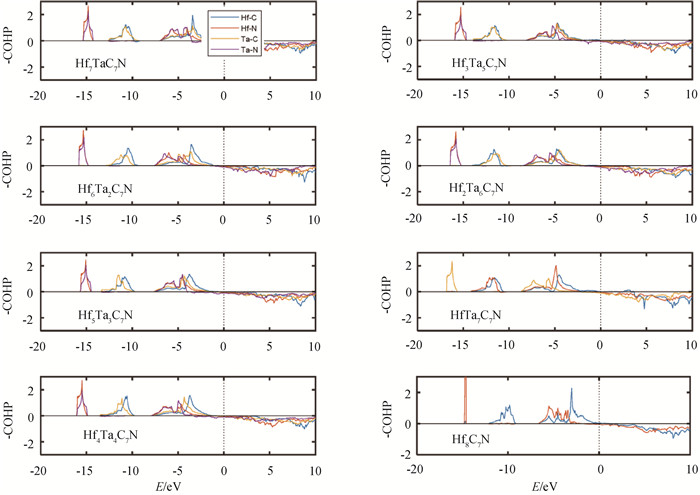

Based on evolutionary algorithm and first-principles calculation, crystal structures of quaternary compound Hf_xTa_8-xC₇N (x=1-7) were predicted. Similar to binary HfC and TaC, these compounds have a rock-salt structure. The calculation of mechanical properties shows that: With the increase of valence electron concentration (VEC), the bulk modulus of Hf_xTa_8-xC₇N increased gradually; At VEC=8.875, the shear modulus and elastic modulus are the largest; The Vickers hardness reaches the maximum at VEC=8.25. Therefore, the quaternary Hf_xTa_8-xC₇N compounds with excellent comprehensive mechanical properties can be obtained with the design of VEC. Finally, electronic properties of Hf_xTa_8-xC₇N compounds were calculated. Relations between mechanical properties and electronic properties were analyzed.

Key words: Hf_xTa_8-xC₇N, crystal structure prediction, effective valence electron concentration, first-principles calculation

Xiang CHENG, Junwei FENG, Tikhonov EVGENII. First-principles Study of Structures, Mechanical Properties and Electronic Properties of Quaternary Hf-Ta-C-N System[J]. Chinese Journal of Computational Physics, 2023, 40(1): 40-46.

Figures/Tables 6

References 27

1	SHAW N J , DICARLO J A , JACOBSON N S , et al. Materials for engine applications above 3000 ℉-An overview[J]. NASA Technical Memorandum, 1987, 100169.
2	OPEKA M M , TALMY I G , ZAYKOSKI J A . Oxidation-based materials selection for 2000 ℃+hypersonic aerosurfaces: Theoretical considerations and historical experience[J]. Journal of Materials Science, 2004, 39 (19): 5887- 5904. DOI
3	LEVINE S R , OPILA E J , HALBIG M C , et al. Evaluation of ultra-high temperature ceramics foraeropropulsion use[J]. Journal of the European Ceramic Society, 2001, 22 (14/15): 2757- 2767.
4	UPADHYA K Y , YANG J M , HOFFMAN W P . Materials for ultra-high temperatures structural applications[J]. American Ceramic Society Bulletin, 1997, 76 (12): 51- 56.
5	HOLLECK H . Material selection for hard coatings[J]. Journal of Vacuum Science & Technology A Vacuum Surfaces & Films, 1998, 4 (6): 2661- 2669.
6	JHI S H , IHM J , LOUIE S G , et al. Electronic mechanism of hardness enhancement in transition-metal carbonitrides[J]. Nature, 1999, 399 (6732): 132- 134. DOI
7	ZHANG Z , FU S , AVERSANO F , et al. Arc melting: A novel method to prepare homogeneous solid solutions of transition metal carbides (Zr, Ta, Hf)[J]. Ceramics International, 2019, 45 (7): 9316- 9319. DOI
8	YE B , CHU Y , HUANG K , et al. Synthesis and characterization of (Zr_1/3Nb_1/3Ti_1/3)C metal carbide solid-solution ceramic[J]. Journal of the American Ceramic Society, 2019, 102 (3): 919- 923.
9	HARRINGTON T J , GILD J , SARKER P , et al. Phase stability and mechanical properties of novel high entropy transition metal carbides[J]. Acta Materialia, 2019, 166, 271- 280. DOI
10	SARKER P , HARRINGTON T , TOHER C , et al. High-entropy high-hardness metal carbides discovered by entropy descriptors[J]. Nature Communications, 2018, 9 (1): 4980. DOI
11	OGANOV A R , GLASS C W . Crystal structure prediction using ab initio evolutionary techniques: Principles and applications[J]. The Journal of Chemical Physics, 2006, 124 (24): 244704. DOI
12	LYAKHOV A O , OGANOV A R , STOKES H T , et al. New developments in evolutionary structure prediction algorithm USPEX[J]. Computer Physics Communications, 2013, 184, 1172- 1182. DOI
13	OGANOV A R , LYAKHOV A O , VALLE M , et al. How evolutionary crystal structure prediction works and why[J]. Accounts of Chemical Research, 2011, 44 (3): 227- 237. DOI
14	KRESSE G , FURTHMULLER J . Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set[J]. Physical Review B, 1996, 54 (16): 11169- 11186. DOI
15	BLOCHL P E . Projector augmented-wave method[J]. Physical Review B, 1994, 50 (24): 17953- 17979. DOI
16	PERDEW J P , RUZSINSZKY A , CSONKA G I , et al. Restoring the density-gradient expansion for exchange in solids and surfaces[J]. Physical Review Letters, 2008, 100 (13): 136406. DOI
17	VOIGT W . Lehrbuch der kristallphysik[M]. Leipzig, Germany: B. G. Teubner, 1928.
18	REUSS A . Berechnung der fliessgrenze von mischkristallen auf grund der plastizitätsbedingung für einkristalle[J]. ZAMM-Zeitschrift fur Angewandte Mathematik und Mechanik, 1929, 9 (1): 49- 58. DOI
19	HILL R . The elastic behavior of a crystalline aggregate[J]. Proceedings of the Physical Society: Section A, 1952, 65 (5): 349- 354. DOI
20	CHEN X Q , NIU H Y , LI D Z. , et al. Modeling hardness of polycrystalline materials and bulk metallic glasses[J]. Intermetallics, 2011, 19 (9): 1275- 1281. DOI
21	PUGH S F . Relations between the elastic moduli and the plastic properties of polycrystalline pure metals[J]. Philosophical Magazine Series 7, 1954, 45 (367): 823- 843. DOI
22	NIU H Y , NIU S W , OGANOV A R . Simple and accurate model of fracture toughness of solids[J]. Journal of Applied Physics, 2019, 125 (6): 065105. DOI
23	DERINGER V L , TCHOUGREEFF A L , DRONSKOWSKI R . Crystal orbital Hamilton population (COHP) analysis as projected from plane-wave basis sets[J]. The Journal of Physical Chemistry A, 2011, 115 (21): 5461- 5466. DOI
24	MOMMA K , IZUMI F . VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data[J]. Journal of Applied Crystallography, 2011, 44, 1272- 1276. DOI
25	PENG J . First-principles study on structures and mechanical properties of ternary layered ceramics M-Al-N (M=Ti, Zr, Hf)[J]. Chinese Journal of Computational Physics, 2020, 37 (5): 603- 611.
26	TAN J , ZHU K , PENG J . First-Principles simulation on structure-property of Ti-Al intermetallic compounds[J]. Chinese Journal of Computational Physics, 2017, 34 (3): 365- 373.
27	LIU X , REN Y . Solid solution structure and elastic modulus of single atom in transition metal nitrides: First principle studies[J]. Chinese Journal of Computational Physics, 2013, 30 (3): 433- 440.

Compound	Space group	Lattice constants/Å	ΔH_f/(eV·atom^-1)	instability/(eV·atom^-1)	VEC
Hf₇TaC₇N	P4mm	a=4.603, b=4.603, c=9.245	-1.041 5	0.004 1	8.25
Hf₆Ta₂C₇N	Pmmm	a=4.575, b=4.600, c=9.166	-0.993 7	0.010 7	8.375
Hf₅Ta₃C₇N	Pmm2	a=4.560, b=4.564, c=9.145	-0.945 1	0.013 3	8.5
Hf₄Ta₄C₇N	Pmm2	a=4.538, b=4.548, c=9.094	-0.897 5	0.007 1	8.625
Hf₃Ta₅C₇N	P4mm	a=4.515, b=4.515, c=9.091	-0.842 4	0.005 9	8.75
Hf₂Ta₆C₇N	Pmm2	a=4.495, b=4.503, c=9.030	-0.781 2	0.007 9	8.875
HfTa₇C₇N	P4mm	a=4.488, b=4.488, c=8.959	-0.702 8	0.022 6	9

Compound	Space group	Lattice constants/Å	ΔH_f/(eV·atom^-1)	instability/(eV·atom^-1)	VEC
Hf₇TaC₇N	P4mm	a=4.603, b=4.603, c=9.245	-1.041 5	0.004 1	8.25
Hf₆Ta₂C₇N	Pmmm	a=4.575, b=4.600, c=9.166	-0.993 7	0.010 7	8.375
Hf₅Ta₃C₇N	Pmm2	a=4.560, b=4.564, c=9.145	-0.945 1	0.013 3	8.5
Hf₄Ta₄C₇N	Pmm2	a=4.538, b=4.548, c=9.094	-0.897 5	0.007 1	8.625
Hf₃Ta₅C₇N	P4mm	a=4.515, b=4.515, c=9.091	-0.842 4	0.005 9	8.75
Hf₂Ta₆C₇N	Pmm2	a=4.495, b=4.503, c=9.030	-0.781 2	0.007 9	8.875
HfTa₇C₇N	P4mm	a=4.488, b=4.488, c=8.959	-0.702 8	0.022 6	9

Compound	Bond length/Å				Volume per atom/Å³
Compound	Hf-C	Hf-N	Ta-C	Ta-N	Volume per atom/Å³
Hf₇TaC₇N	2.285~2.328	2.302~2.364	2.199~2.303	2.353	12.243 5
Hf₆Ta₂C₇N	2.273~2.309	2.288~2.306	2.259~2.323	2.300	12.055 2
Hf₅Ta₃C₇N	2.273~2.349	2.280~2.373	2.164~2.301	2.335	11.892 5
Hf₄Ta₄C₇N	2.233~2.289	2.269~2.344	2.158~2.301	2.274~2.359	11.731 4
Hf₃Ta₅C₇N	2.258~2.322	2.258	2.163~2.259	2.352~2.413	11.583 0
Hf₂Ta₆C₇N	2.248~2.285	2.248	2.178~2.272	2.251~2.349	11.423 4
HfTa₇C₇N	2.238~2.244	2.272	2.184~2.275	2.244~2.264	11.275 4
Hf₈C₇N	2.309~2.322	3.324			12.432 8

Compound	Bond length/Å				Volume per atom/Å³
Compound	Hf-C	Hf-N	Ta-C	Ta-N	Volume per atom/Å³
Hf₇TaC₇N	2.285~2.328	2.302~2.364	2.199~2.303	2.353	12.243 5
Hf₆Ta₂C₇N	2.273~2.309	2.288~2.306	2.259~2.323	2.300	12.055 2
Hf₅Ta₃C₇N	2.273~2.349	2.280~2.373	2.164~2.301	2.335	11.892 5
Hf₄Ta₄C₇N	2.233~2.289	2.269~2.344	2.158~2.301	2.274~2.359	11.731 4
Hf₃Ta₅C₇N	2.258~2.322	2.258	2.163~2.259	2.352~2.413	11.583 0
Hf₂Ta₆C₇N	2.248~2.285	2.248	2.178~2.272	2.251~2.349	11.423 4
HfTa₇C₇N	2.238~2.244	2.272	2.184~2.275	2.244~2.264	11.275 4
Hf₈C₇N	2.309~2.322	3.324			12.432 8
