Ion Temperature and Coulomb Coupling Parameter of Ultracold Neutral Plasma in Ion Equilibration Stage

doi:10.19596/j.cnki.1001-246x.8554

Abstract

Abstract:

Using a newly developed velocity map imaging apparatus coupled with a magneto-optical trap, we measured ion temperature and Coulomb coupling parameter of ultracold neutral plasma (UNP). We carried out numerical simulation in early evolution of UNP. The experimental and simulation results showed that the disorder-induced heating mechanism led to a rapid rise in ion temperature during the ion equilibration, and the Coulomb coupling parameter dropped to 2.5. Furthermore, we found that the plasma expansion velocity would quickly approach the thermal velocity of ions in the ion equilibration, which results in a higher Coulomb coupling parameter than experimental values.

Key words: ultracold neutral plasma, disorder-induced heating, Coulomb coupling parameter

Feng FANG, Wenchang ZHOU, Changjie LUO, Yufan LI, Jie YANG. Ion Temperature and Coulomb Coupling Parameter of Ultracold Neutral Plasma in Ion Equilibration Stage[J]. Chinese Journal of Computational Physics, 2023, 40(3): 275-281.

Figures/Tables 5

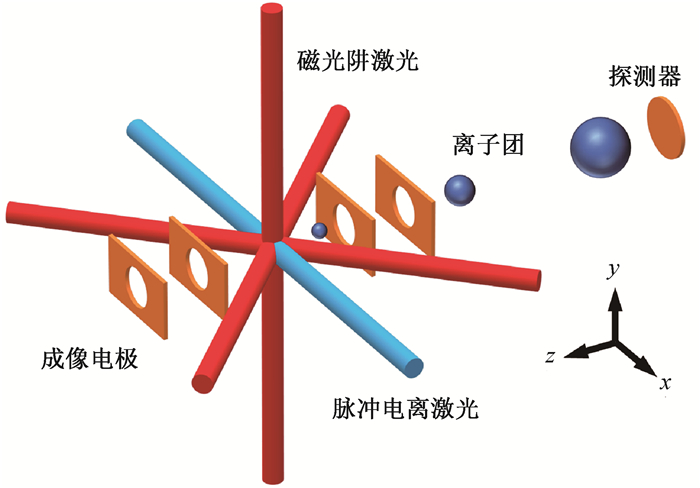

Fig.1 A schematic of experimental setup

Fig.2 (a) A detected imaging result at delay time td= 0 ns; (b) A slice cut of three-dimensional velocity distribution of ions obtained through Abel inversion; (c) Velocity distribution obtained from three-dimensional distribution shown in panel of (b)

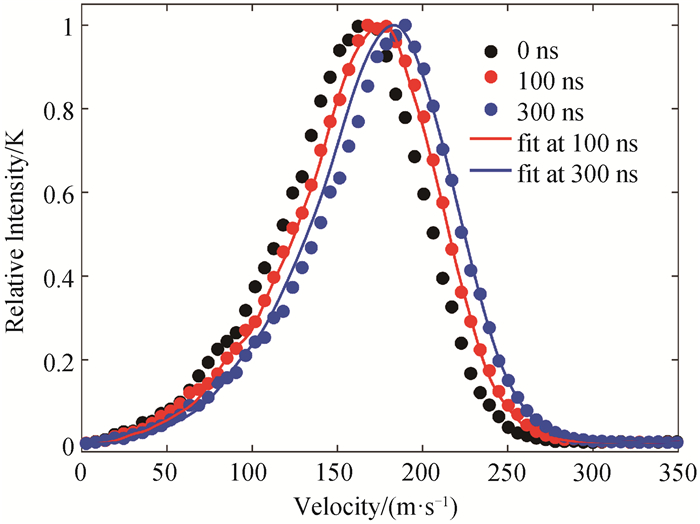

Fig.3 Measured velocity distributions (solid dots) and corresponding fitting results (solid lines) at different delay time

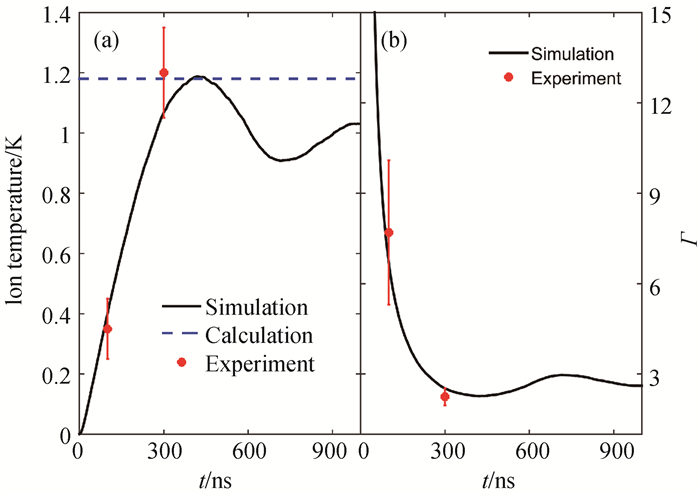

Fig.4 (a) Evolution of ion temperature (The black solid line, the blue dashed line and the red solid dots represent the results of CPT simulation, calculation by Eq. (2) and experimental measurement, respectively.) (b) Evolution of Coulomb coupling parameter Γ (The black solid line and the red solid dots are the results of CPT simulation and experimental measurement, respectively.)

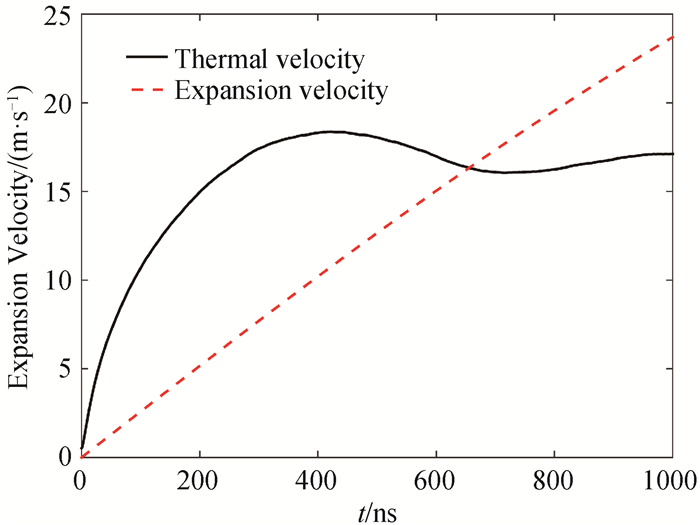

Fig.5 Evolution of rms velocity of ions from CPT simulation and expansion velocity calculated with self-similar expansion model

References 32

1	KILLIAN T C , PATTARD T , POHL T , et al. Ultracold neutral plasmas[J]. Physics Reports, 2007, 449 (4): 77- 130.
2	LYON M , ROLSTON S L . Ultracold neutral plasmas[J]. Rep Prog Phys, 2016, 80 (1): 017001- 30.
3	ICHIMARU S . Strongly coupled plasmas: High-density classical plasmas and degenerate electron liquids[J]. Rev Mod Phys, 1982, 54 (4): 1017- 1069. DOI
4	YU C , FAN Z , LIU J , et al. Modeling of shell-mixing into central hotspot in inertial confinement fusion implosion[J]. Chinese Journal of Computational Physics, 2017, 34 (4): 379- 386.
5	GU J , GE F , DAI Z , et al. Influence of capsule support tent on ICF capsule implosion performance: Simulation study[J]. Chinese Journal of Computational Physics, 2020, 37 (6): 631- 638.
6	XU H , ZHUO H , YANG X , et al. Hybrid particle-in-cell/fluid model for hot electron transport in dense plasmas[J]. Chinese Journal of Computational Physics, 2017, 34 (5): 505- 525.
7	BERGESON S D , BAALRUD S D , ELLISON C L , et al. Exploring the crossover between high-energy-density plasma and ultracold neutral plasma physics[J]. Physics of Plasmas, 2019, 26 (10): 100501. DOI
8	KILLIAN T C , KULIN S , BERGESON S D , et al. Creation of an ultracold neutral plasma[J]. Phys Rev Lett, 1999, 83 (23): 4776- 4779. DOI
9	MURILLO M S . Using Fermi statistics to create strongly coupled ion plasmas in atom traps[J]. Phys Rev Lett, 2001, 87 (11): 115003. DOI
10	KULIN S , KILLIAN T C , BERGESON S D , et al. Plasma oscillations and expansion of an ultracold neutral plasma[J]. Phys Rev Lett, 2000, 85 (2): 318- 321. DOI
11	SIMIEN C E , CHEN Y C , GUPTA P , et al. Using absorption imaging to study ion dynamics in an ultracold neutral plasma[J]. Phys Rev Lett, 2004, 92 (14): 143001. DOI
12	CUMMINGS E A , DAILY J E , DURFEE D S , et al. Fluorescence measurements of expanding strongly coupled neutral plasmas[J]. Phys Rev Lett, 2005, 95 (23): 235001. DOI
13	LAHA S , GUPTA P , SIMIEN C E , et al. Experimental realization of an exact solution to the Vlasov equations for an expanding plasma[J]. Phys Rev Lett, 2007, 99 (15): 155001. DOI
14	LYON M , BERGESON S D , DIAW A , et al. Using higher ionization states to increase Coulomb coupling in an ultracold neutral plasma[J]. Physical Review E, 2015, 91 (3): 033101. DOI
15	LANGIN T K , GORMAN G M , KILLIAN T C . Laser cooling of ions in a neutral plasma[J]. Science, 2019, 363 (6422): 61- 64. DOI
16	SUITS A G . Invited review article: Photofragment imaging[J]. Rev Sci Instrum, 2018, 89 (11): 111101. DOI
17	KROKER T , GROßMANN M , SENGSTOCK K , et al. Ultrafast electron cooling in an expanding ultracold plasma[J]. Nature Communications, 2021, 12 (1): 596- 603. DOI
18	FANG F , ZHOU W , LI Y , et al. Design and characterization of a velocity-map imaging apparatus for low-energy photo-ion spectroscopy using magneto-optically trapped atoms[J]. Rev Sci Instrum, 2021, 92 (4): 043103. DOI
19	EPPINK A T J B, WU S M, WHITAKER B J. Reconstruction methods[M]//WHITAKER B J. Imaging in molecular dynamics: Technology and applications. Cambridge: Cambridge University Press, 2003: 65-112.
20	GARCIA G A , NAHON L , POWIS I . Two-dimensional charged particle image inversion using a polar basis function expansion[J]. Rev Sci Instrum, 2004, 75 (11): 4989- 4996. DOI
21	DICK B . Inverting ion images without Abel inversion: Maximum entropy reconstruction of velocity maps[J]. Physical Chemistry Chemical Physics, 2014, 16 (2): 570- 580. DOI
22	REIJNDERS M P , VAN KRUISBERGEN P A , TABAN G , et al. Low-energy-spread ion bunches from a trapped atomic gas[J]. Phys Rev Lett, 2009, 102 (3): 034802. DOI
23	CHEN Y C , SIMIEN C E , LAHA S , et al. Electron screening and kinetic-energy oscillations in a strongly coupled plasma[J]. Phys Rev Lett, 2004, 93 (26): 265003. DOI
24	CUMMINGS E A , DAILY J E , DURFEE D S , et al. Ultracold neutral plasma expansion in two dimensions[J]. Physics of Plasmas, 2005, 12 (12): 123501. DOI
25	朱宇豪, 周福阳, 吴勇, 等. 初始空间有序分布下超冷等离子体的演化模拟[J]. 原子与分子物理学报, 2018, 35 (4): 639- 644.
26	FAROUKI R T , HAMAGUCHI S . Thermodynamics of strongly-coupled Yukawa systems near the one-component-plasma limit Ⅱ: Molecular dynamics simulations[J]. The Journal of Chemical Physics, 1994, 101 (11): 9885- 9893. DOI
27	HAMAGUCHI S , FAROUKI R T , DUBIN D H E . Phase diagram of Yukawa systems near the one-component-plasma limit revisited[J]. The Journal of Chemical Physics, 1996, 105 (17): 7641- 7647. DOI
28	HAMAGUCHI S , FAROUKI R T , DUBIN D H E . Triple point of Yukawa systems[J]. Physical Review E, 1997, 56 (4): 4671- 4682. DOI
29	MCQUILLEN P , STRICKLER T , LANGIN T , et al. Ion temperature evolution in an ultracold neutral plasma[J]. Physics of Plasmas, 2015, 22 (3): 033513. DOI
30	POHL T , PATTARD T . Strong-coupling effects in the relaxation dynamics of ultracold neutral plasmas[J]. Journal of Physics: Conference Series, 2005, 11, 223- 233. DOI
31	KOVALEV V F , BYCHENKOV V Y . Analytic solutions to the Vlasov equations for expanding plasmas[J]. Phys Rev Lett, 2003, 90 (18): 185004. DOI
32	MORA P . Plasma expansion into a vacuum[J]. Phys Rev Lett, 2003, 90 (18): 185002. DOI
