An Immersed Boundary Method for RANS Simulation of Compressible Turbulent Flows

doi:10.19596/j.cnki.1001-246x.8563

Abstract

Abstract:

An immersed boundary method is proposed for RANS (Reynolds-Averaged Navier-Stokes) simulation of compressible turbulent flows. In the method reference points are no longer utilized in interpolation for solution reconstruction and flow variables at the mesh nodes in immediate vicinity of solid wall are determined with inverse distance weighting interpolation of those at surrounding computed nodes. To reduce the requirement of high near-wall mesh resolution in simulation of high-Reynolds-number turbulent flows, an explicit wall function is employed to transform the no-slip boundary condition into the no-penetration condition and a prescribed wall shear stress. The wall function does not need to be solved iteratively which improves computational efficiency. Numerical experiment for subsonic and transonic flows around RAE2822 airfoil verifies reliability of the method.

Key words: immersed boundary method, RANS simulation of turbulent flows, compressible turbulent flow, wall function

Wenhui HE, Tianmei PU, Chunhua ZHOU. An Immersed Boundary Method for RANS Simulation of Compressible Turbulent Flows[J]. Chinese Journal of Computational Physics, 2023, 40(3): 325-332.

Figures/Tables 13

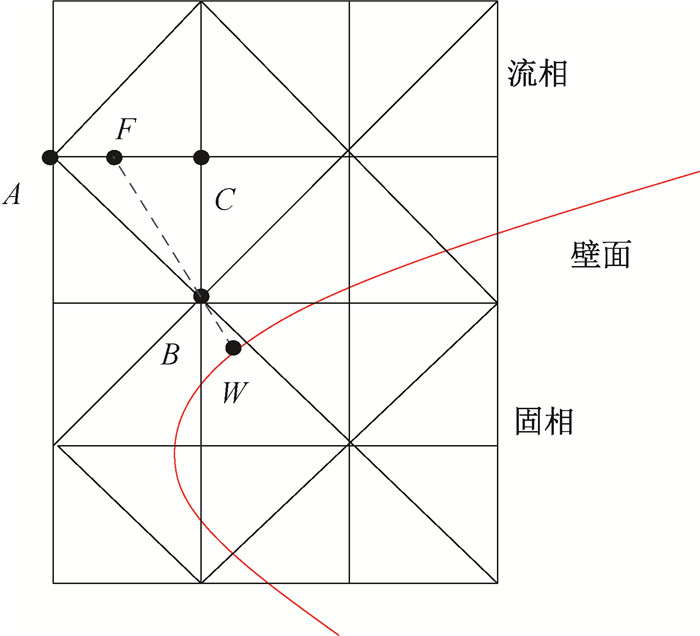

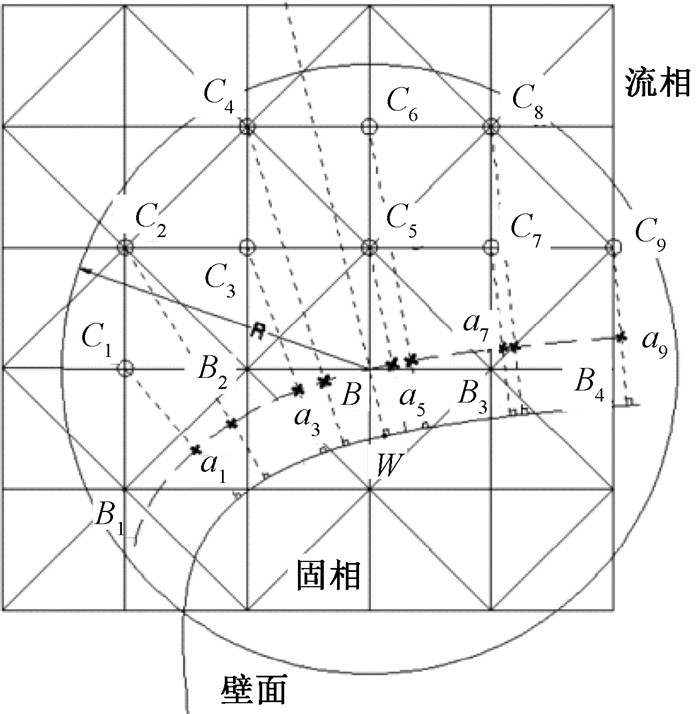

Fig.1 Treatment of the immersed boundary (B: IB node;A and C: interior computed node; F: reference point; W: intersection between wall and normal line.)

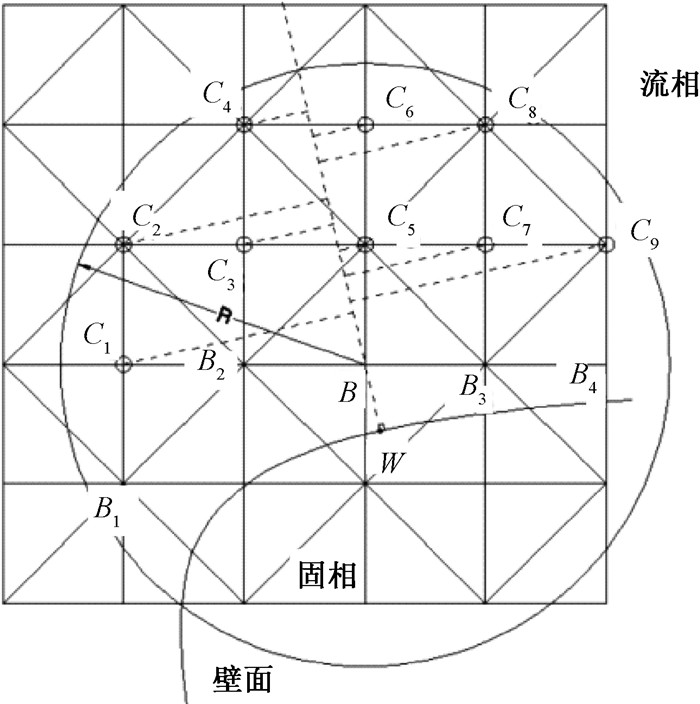

Fig.2 A schematic for interpolation points

Fig.3 A schematic for IDW interpolation

Table 1 Corrected free-stream conditions for RAE2822 airfoil

	雷诺数	马赫数	攻角/°
Case 1	5.7 × 10⁶	0.676	2.04
Case 9	6.5 × 10⁶	0.730	2.80
Case 10	6.2 × 10⁶	0.750	2.72

Table 2 Node numbers of mesh with different near-wall intervals

	网格尺度h	节点数
粗网格	8.0 × 10^-4	78 850
中等网格	4.0 × 10^-4	98 086
细网格	2.0 × 10^-4	136 158
更细网格	1.0 × 10^-4	179 393

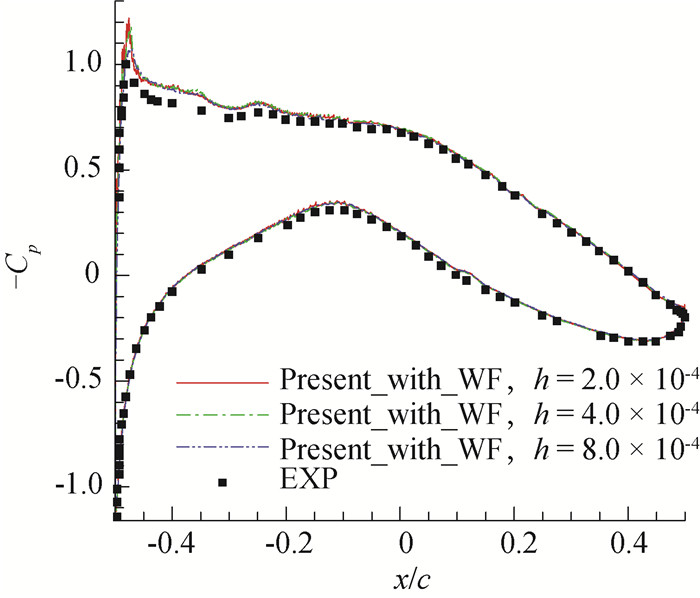

Fig.4 Case 1: CP on the surface

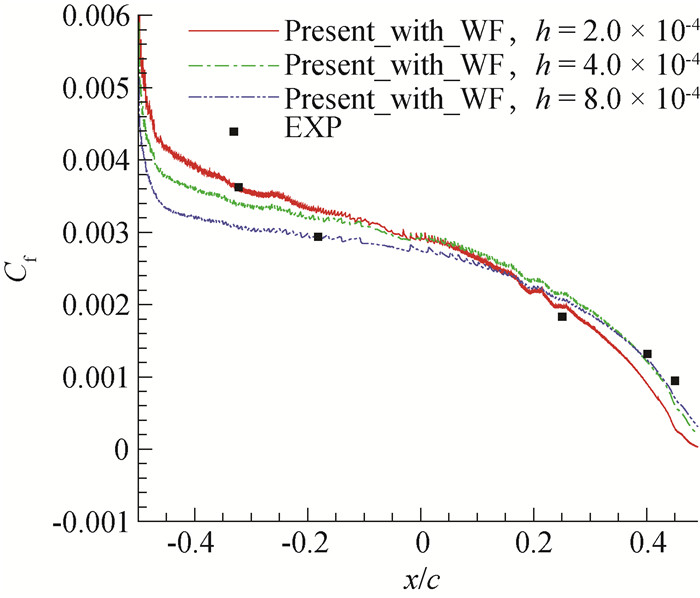

Fig.5 Case 1: Cf on the upper surface

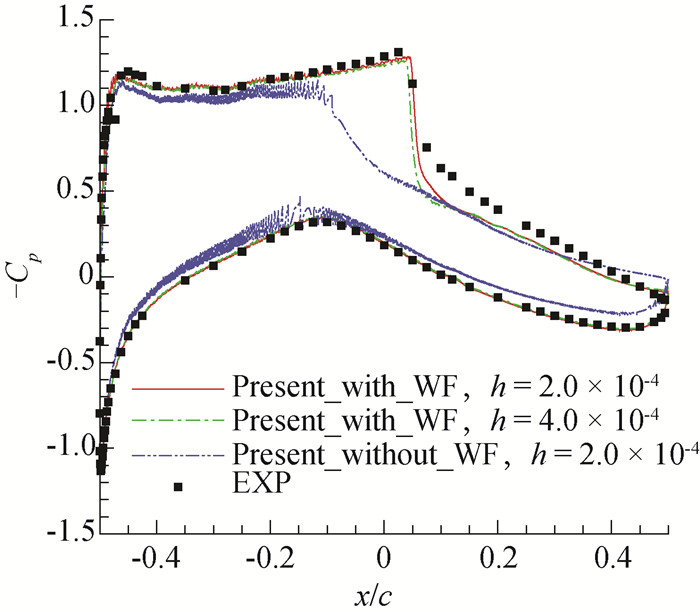

Fig.6 Case 9: CP on the surface

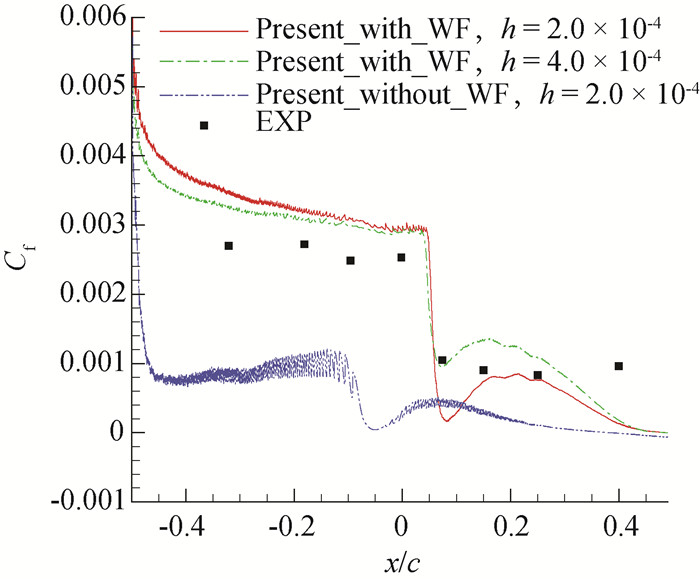

Fig.7 Case 9: Cf on the upper surface

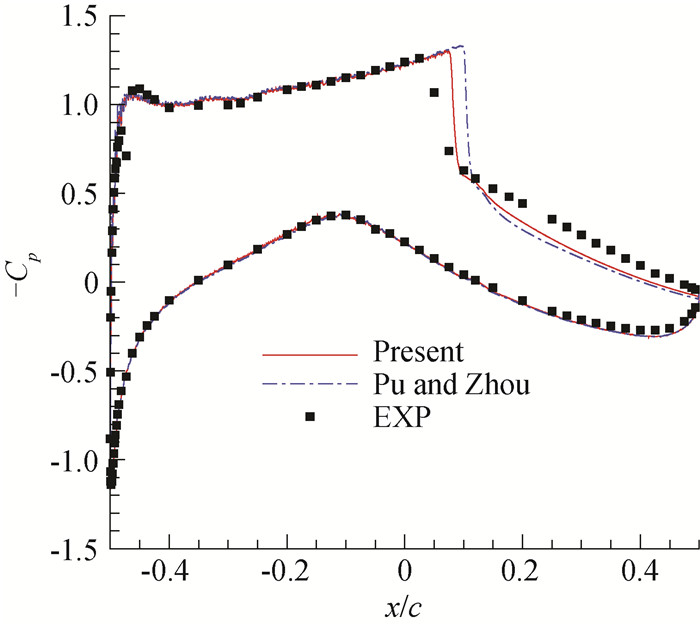

Fig.8 Case 10: CP on the surface, h = 2 × 10-4

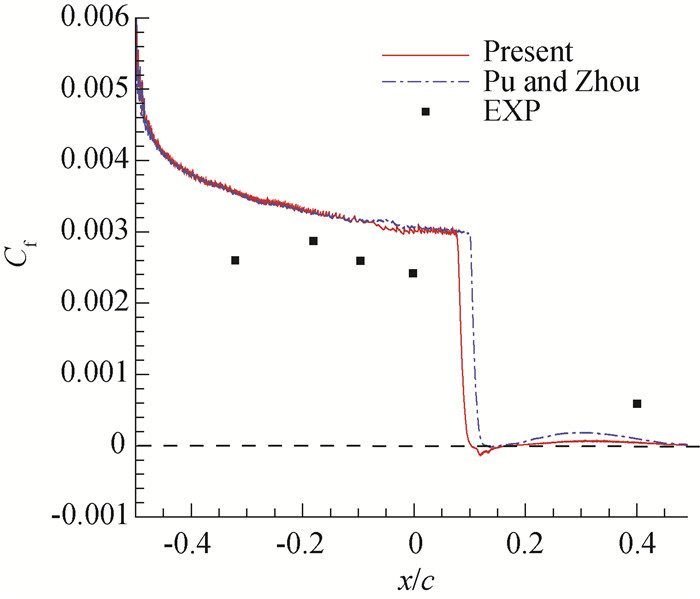

Fig.9 Case 10: Cf on the upper surface, h = 2 × 10-4

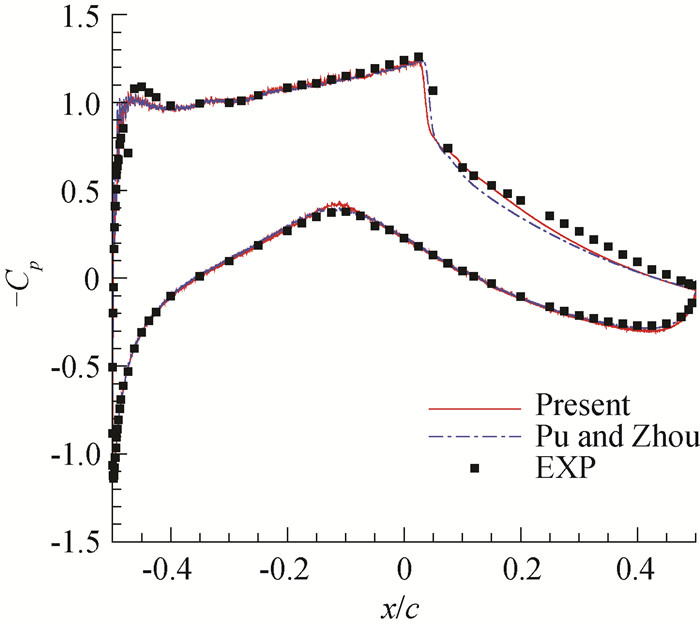

Fig.10 Case 10: CP on the surface, h = 1 × 10-4

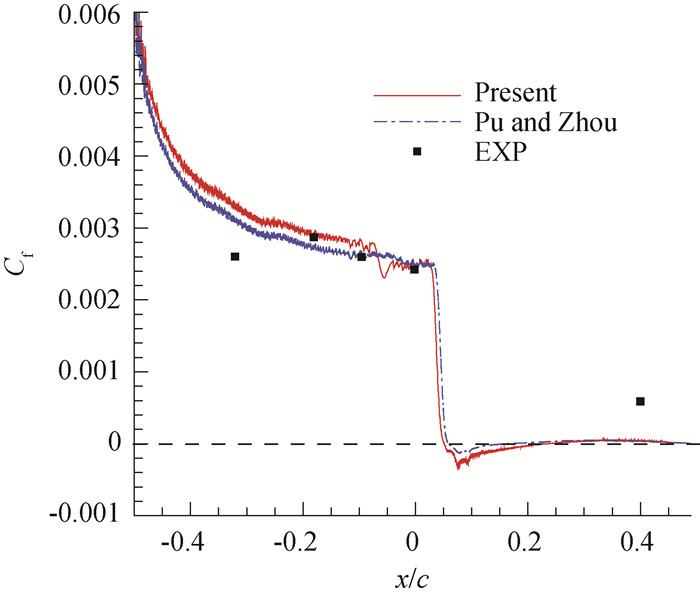

Fig.11 Case 10: Cf on the upper surface, h = 1 × 10-4

References 21
