Suppression of Stimulated Raman Scattering and Stimulated Brillouin Scattering in Weakly Magnetized Plasmas

doi:10.19596/j.cnki.1001-246x.8569

Abstract

Abstract:

Finding ways to suppress stimulated Raman scattering(SRS) and stimulated Brillouin scattering(SBS) is an important subject in inertial confinement fusion(ICF). Under the typical laser fusion plasma conditions, the effects of transverse magnetic field and laser bandwidth on the suppression of SRS and SBS are studied by utilizing the particle-in-cell(PIC) program. It is found that the transverse magnetic field can significantly inhibit the autoresonance of SRS in the non-uniform plasma. The transverse magnetic field accelerates the electrons trapped in the electron plasma wave(EPW) excited by SRS, which causes the nonlinear damping and reduces the nonlinear frequency shift of the EPW, thus narrowing the autoresonance space and significantly reducing the SRS reflectivity. Based on the characteristics that SRS can be suppressed by a transverse magnetic field and the SBS growth is sensitive to the laser bandwidth, a scheme is proposed that utilizing the transverse magnetic field and the broadband laser to suppress SRS and SBS simultaneously. When the transverse magnetic field is on the order of 10 T and the bandwidth is on the order of 0.001, both of which are easy to achieve in experiments, the total reflectivity of SRS and SBS can be effectively suppressed in the ICF-related plasmas.

Key words: stimulated Raman scattering, stimulated Brillouin scattering, nonlinear kinetic effect, magnetized plasma, autoresonance

Yuanzhi ZHOU, Chunyang ZHENG, Zhanjun LIU, Lihua CAO, Ruijin CHENG, Xiantu HE. Suppression of Stimulated Raman Scattering and Stimulated Brillouin Scattering in Weakly Magnetized Plasmas[J]. Chinese Journal of Computational Physics, 2023, 40(2): 136-146.

Figures/Tables 9

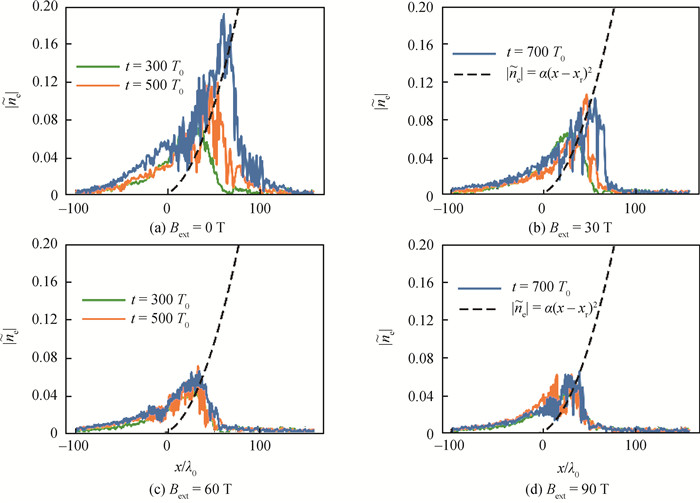

Fig.1 Snapshot of the spatial evolution of EPWs in different Bext when I0 = 5 × 1015 W ·cm-2

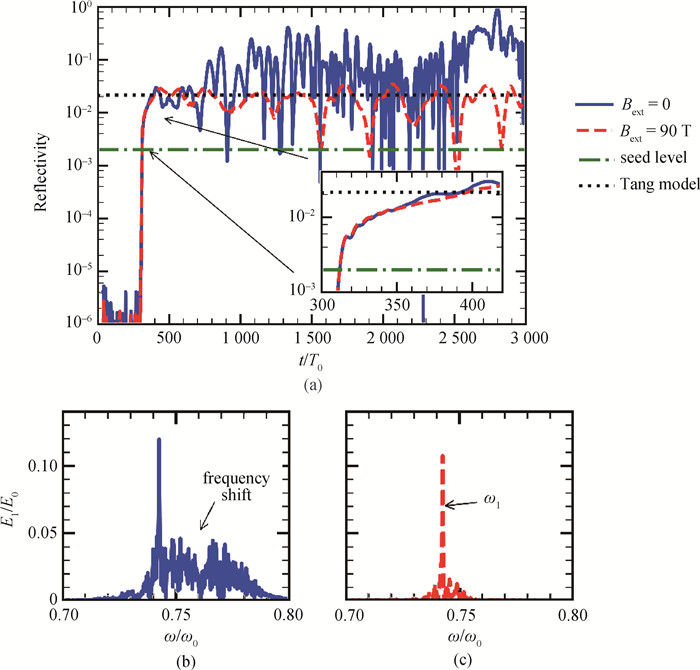

Fig.2 (a) Reflectivity of the scattered light at the left boundary when I0 = 5 × 1015 W ·cm-2. The green dash-dot line and black dotted line represent the initial seed level and the level expected by kinetic amplification respectively. T0 is the period of pump light. Frequency distributions of the scattered light waves at the left boundary when (b) Bext=0 or (c) Bext=90 T.

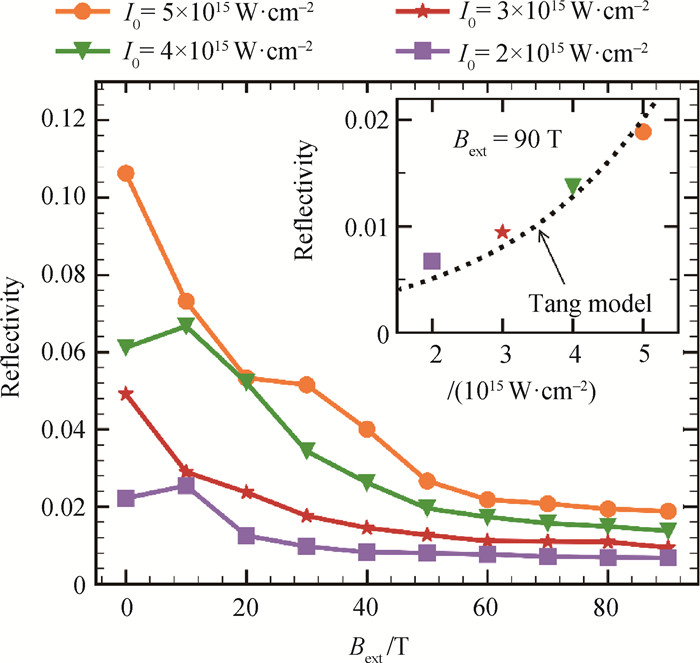

Fig.3 Time averaged SRS reflectivity under different magnetic fields and different pump lights (The seed light intensity is 1/500 of the pump light, and the simulation time is 3.5 ps.)

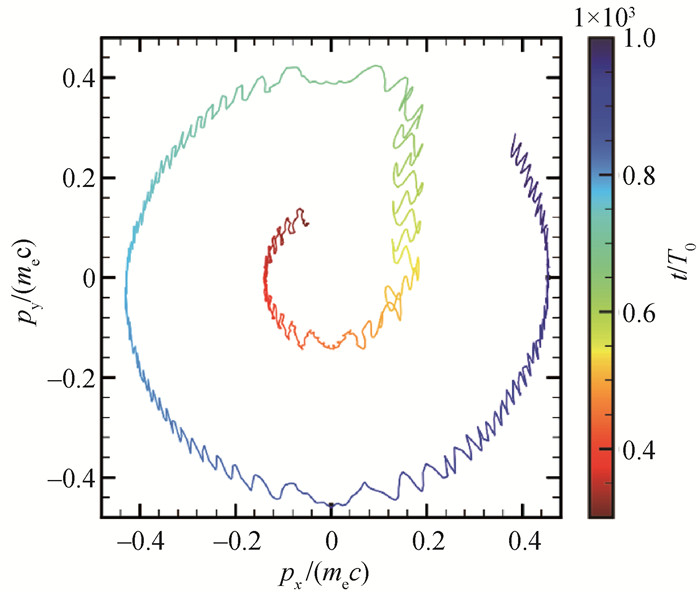

Fig.4 Orbit of an electron in the particle-in-cell (PIC) (ωL/ωc=87.4, ωB/ωc=15.7, vpL/c=0.15.)

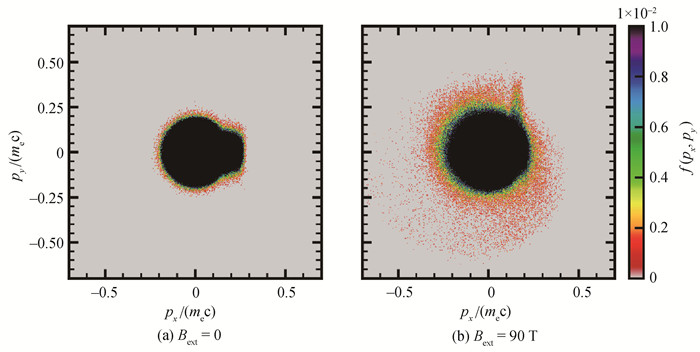

Fig.5 The electron distribution in px-py space at t=600 T0

Table 1 Main parameters of SBS and SRS

散射机制	kλ_De	ω/ω₀	γ₀/ω₀	ν_LD	G
SBS	0.367	0.997	5.63 × 10^-4	-0.104ω_a	3.65
SRS	0.313	0.276	2.25 × 10^-3	-0.0144ω_L	4.46

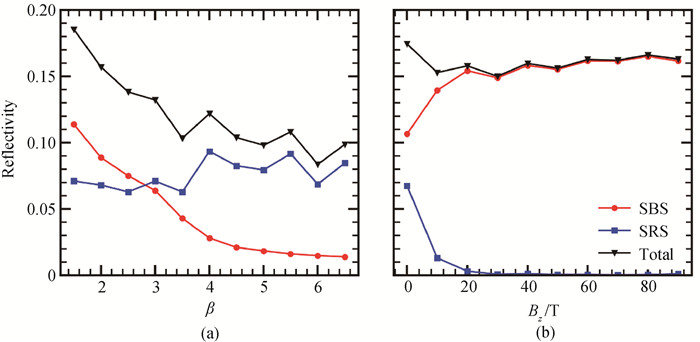

Fig.6 (a) The reflectivity changes with the bandwidth of the pump light when Bext= 0; (b) The reflectivity changes with the intensity of transverse magnetic field when the incident light is monochromatic

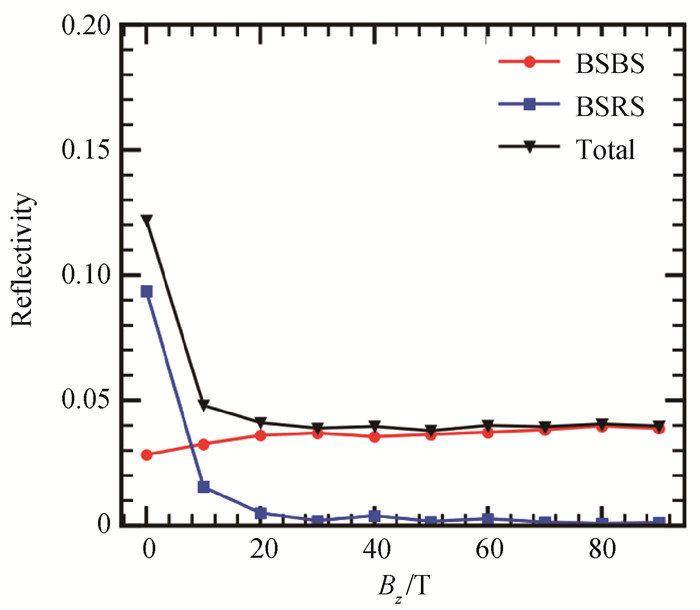

Fig.7 When the fixed bandwidth is 2 × 10-3ω0, the reflectivity of SRS and SBS changes with the intensity of transverse magnetic field

Table 2 Transmittivity in different schemes

无抑制方案	2 × 10^-3带宽	20 T横向磁场	带宽+磁场
0.788	0.837	0.850	0.941
