Nonlocal Electron Heat Conduction for Radiation Hydrodynamics Code

doi:10.19596/j.cnki.1001-246x.8616

Abstract

Abstract:

Accurate electron heat conduction model is essential for understanding energy transport and dissipation during inertial confinement fusion and celestial burst process, and guiding the design of fusion capsule and experiment design of laboratory astrophysics. We successfully couple the non-local electron heat conduction model to the radiation hydrodynamics code, the simulation results of which in two analytical tests are basically consistent with the results calculated by the Fokker-Planck code. Applying the coupled code to the interaction between nanosecond laser and solid targets, we find that the non-local effect is mainly manifest in the time-dependent flux limited effect of the coronal critical surface in the early stage and the gradually enhanced preheating effect of the ablation surface in the late stage. These results are of great significance to clearly understand the laser energy deposition and transmission, and the generation and development of hydrodynamic instability in inertial confinement fusion, especially in direct drive.

Key words: nonlocal electron heat conduct, Schurtz-Nicola?-Busquet model, flux limited effect, preheat

Wenqiang YUAN, Zhonghai ZHAO, Bin QIAO. Nonlocal Electron Heat Conduction for Radiation Hydrodynamics Code[J]. Chinese Journal of Computational Physics, 2023, 40(2): 232-240.

Figures/Tables 4

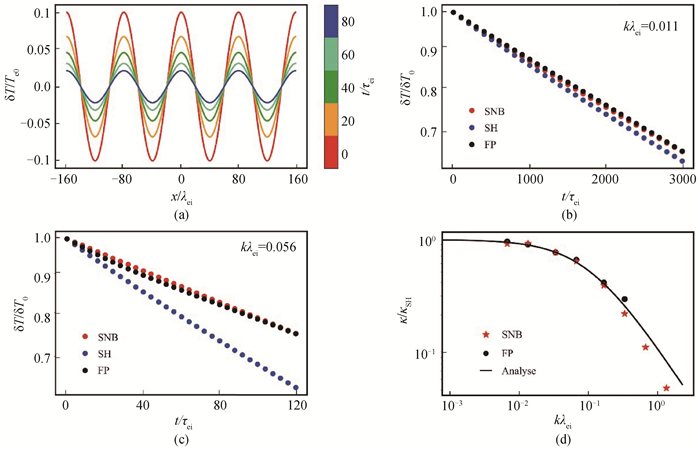

Fig.1 Results of Epperlein-Short test (a) evolution of temperature perturbation, decay of temperature perturbation obtained by SNB, SH and FP models when (b) kλei=0.011, (c) kλei=0.056, respectively; (d) the relationship between the deviation κ/κSH of the non-local heat conduction coefficient and the classical coefficient and the characteristic non-local parameter kλei. (The solid black line represents the analytical fitting result, κFP/κSH=1/(1+50kλei) in Ref.[20].)

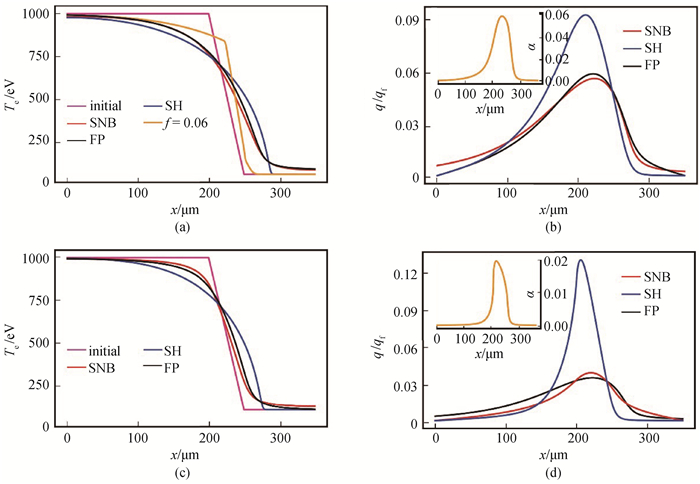

Fig.2 Simulation results of heat-bath problem, (a), (b) are spatial distributions of electron temperature and heat flux of low Z material (Z = 2) under different models (SNB, SH, FP), where the pink curve in (a) is the initial temperature distribution with the other curves at 80 ps and subgraph in (b) shows the distribution of the non-local parameter α; (c) and (d) are the corresponding graphs of high Z material (Z = 50)

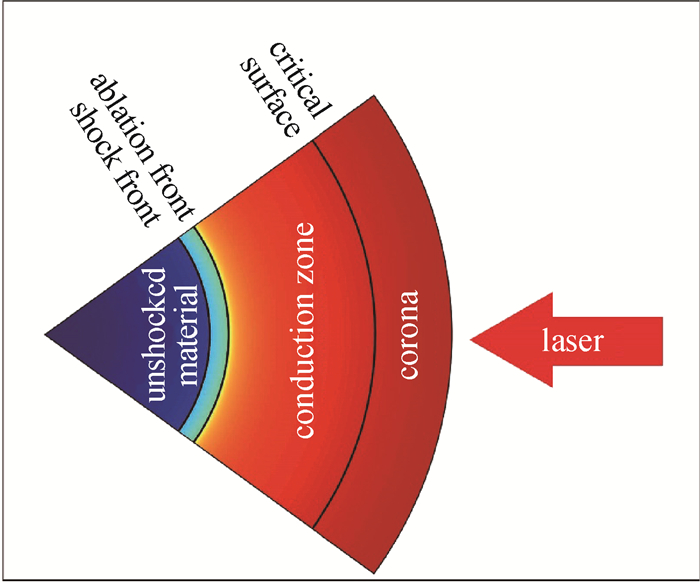

Fig.3 Schematic diagram of ns laser interaction with solids (According to the different dominant physics, it is divided into three interfaces and four regions: coronal region, critical surface, conduction zone, ablation surface, shocked ablator, shock front, and unshocked material.)

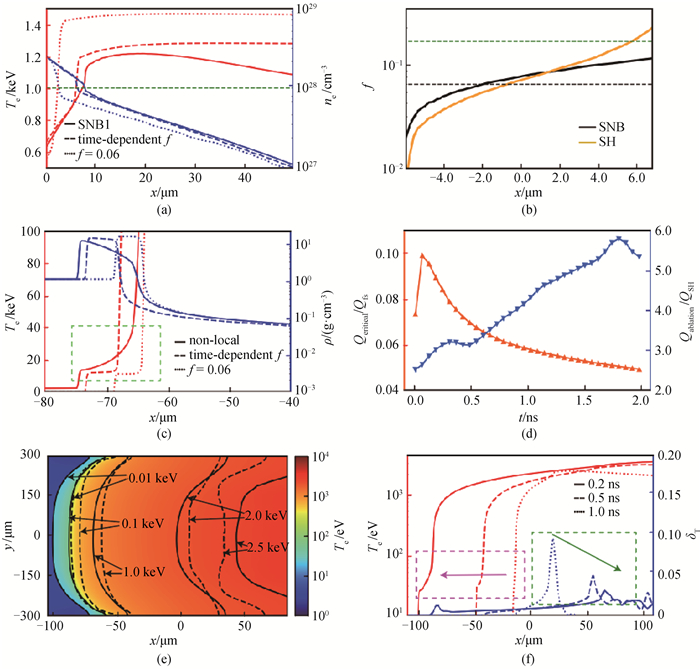

Fig.4 Simulation results of laser-plastic interaction (a) Electron temperature and number density distribution of corona under SNB, time-dependent limiting f and f = 0.06 models at 0.1 ns. (The red line represents temperature and the blue line represents number density.); (b) flux limited factor of conduction zone at 0.1 ns under SNB and SH models; (c) distribution of electron temperature and fluid density near the critical density surface at 1 ns; (d) the evolution of flux limited factor f at critical surface and the preheating effect at ablation surface; (e) map of electron temperature in 2D simulation with SNB model, where the solid lines are temperature contours while dashed lines are corresponding contours in simulations with f = 0.06 model; (f) profiles of electron temperature and Knudsen number at 0.2, 0.5 and 1.0 ns along the central axis of 2D simulations

References 30

1	CRAXTON R S , ANDERSON K S , BOEHLY T R , et al. Direct-drive inertial confinement fusion: A review[J]. Physics of Plasmas, 2015, 22 (11): 110511.
2	MICHEL D T , DAVIS A K , GONCHAROV V N , et al. Measurements of the conduction-zone length and mass ablation rate in cryogenic direct-drive implosions on OMEGA[J]. Phys Rev Lett, 2015, 114 (5): 155002.
3	REGAN S P , EPSTEIN R , GONCHAROV V N , et al. Laser absorption, mass ablation rate, and shock heating in direct-drive inertial confinement fusion[J]. Physics of Plasmas, 2007, 14 (5): 056305. DOI
4	CHEN G G , CHANG T Q , ZHANG J , et al. Numerical simulation for laser-target nonequilibrium coupling[J]. Chinese Journal of Computation Physics, 1998, 15 (4): 409- 418.
5	BEDOGNI R . The electron thermal conduction in young supernova remnants[J]. A&A, 1988, 190, 320- 332.
6	RESSLER S M , LASKAR T . Thermal electrons in gamma-ray burst afterglows[J]. The Astrophysical Journal, 2017, 845 (2): 150- 156. DOI
7	ROBERG G T , DRAKE J F , REYNOLDS C S , et al. Suppression of electron thermal conduction in the high β intracluster medium of galaxy clusters[J]. The Astrophysical Journal, 2016, 830 (1): L9. DOI
8	CAO Q , XIAO D , YANG X J , WANG J G . Numerical simulation on nonlinear evolution of Magneto-Rayleigh-Taylor instability[J]. Chinese Journal of Computational Physics, 2021, 38 (1): 5- 15.
9	FAN Z F , LUO J S . High-order finite difference method for simulation of ablative Rayleigh-Taylor instability[J]. Chinese Journal of Computational Physics, 2008, 25 (6): 701- 704. DOI
10	SCHURTZ G , GARY S , HULIN S , et al. Revisiting nonlocal electron-energy transport in inertial-fusion conditions[J]. Phys Rev Lett, 2007, 98 (4): 095002.
11	HU S X , SMALYUK V A , GONCHAROV V N , et al. Validation of thermal-transport modeling with direct-drive, planar-foil acceleration experiments on OMEGA[J]. Phys Rev Lett, 2008, 101 (4): 055002.
12	HENCHEN R J , SHERLOCK M , ROZMUS W , et al. Observation of nonlocal heat flux using thomson scattering[J]. Phys Rev Lett, 2018, 102 (6): 125001.
13	SPITZER Harm . Transport phenomena in a completely ionized gas[J]. Phys Rev, 1953, 89, 977- 981. DOI
14	GREGORI G , GLENZER S H , KNIGHT J , et al. Effect of nonlocal transport on heat-wave propagation[J]. Phys Rev Lett, 2004, 92 (20): 205006. DOI
15	MALONE R C , MCCRORY R L , MORSE R L . Indications of strongly flux-limited electron thermal conduction in laser-target experiments[J]. Phys Rev Lett, 1975, 34 (12): 721- 724. DOI
16	DELETTREZ J . Thermal electron transport in direct-drive laser fusion[J]. Canadian Journal of Physics, 1986, 64 (8): 932- 943. DOI
17	MORA P , LUCIANI J . Nonlocal electron transport in laser created plasmas[J]. Laser and Particle Beams, 1994, 12 (3): 387- 400. DOI
18	BELL A R , EVANS R G , NICHOLAS D J . Elecron energy transport in steep temperature gradients in laser-produced plasmas[J]. Phys Rev Lett, 1981, 46 (4): 243- 246. DOI
19	SCHURTZ G P , NICOLAÏ PH D , BUSQUET M . A nonlocal electron conduction model for multidimensional radiation hydrodynamics codes[J]. Physics of Plasmas, 2000, 7 (10): 4238- 4249. DOI
20	CAO D , MOSES G , DELETTREZ J . Improved non-local electron thermal transport model for two-dimensional radiation hydrodynamics simulations[J]. Physics of Plasmas, 2005, 22 (8): 082308.
21	BRODRICK J P , KINGHAM R J , MARINAKM M , et al. Testing nonlocal models of electron thermal conduction for magnetic and inertial confinement fusion applications[J]. Physics of Plasmas, 2017, 24 (9): 092309. DOI
22	Li K , HUO W Y . Nonlocal electron heat transport under the non-Maxwellian distribution function[J]. Physics of Plasmas, 2020, 27 (6): 062705. DOI
23	MAROCCHINO A , TZOUFRAS M , ATZEBI S , et al. Comparison for non-local hydrodynamic thermal conduction models[J]. Physics of Plasmas, 2013, 20 (2): 022702. DOI
24	FALK K , HOLEC M , FONTES C J , et al. Measurement of preheat due to nonlocal electron transport in warm dense matter[J]. Phys Rev Lett, 2018, 120 (2): 025002. DOI
25	MAROCCHINO A , RAVASIO A , LEVY A , et al. Transition from nonlocal electron transport to radiative regime in an expanding blast wave[J]. Appl Phys Lett, 2018, 112 (26): 264104. DOI
26	SHERLOCK M , BRODRICK J P , RIDGER C P . A comparison of non-local electron transport models for laser-plasmas relevant to inertial confinement fusion[J]. Physics of Plasmas, 2017, 24 (8): 082706. DOI
27	LUCIANI J F , MORA P , VIRMONT J . Nonlocal heat transport due to steep temperature gradients[J]. Phys Rev Lett, 1983, 51 (18): 1664- 1667. DOI
28	EPPERLEIN E M , SHORT R W . A practical nonlocal model for electron heat transport in laser plasmas[J]. Physics of Fluids B: Plasma Physics, 1991, 3 (11): 3092- 3098. DOI
29	KINGHAM R J , BELL A R . An implicit Vlasov-Fokker-Planck code to model non-local electron transport in 2-D with magnetic fields[J]. Journal of Computational Physics, 2004, 194 (1): 1- 34. DOI
30	RIDGERS C P , KINGHAM R J , THOMAS A G R . Magnetic cavitation and the reemergence of nonlocal transport in laser plasmas[J]. Phys Rev Lett, 2008, 100 (7): 075003. DOI
