Dynamics Analysis and Circuit Implementation of the Memristive Lorenz Chaotic System

doi:10.19596/j.cnki.1001-246x.8649

Abstract

Abstract:

Memristor plays an important role in modeling nonlinear circuits and systems. Based on the proposed smooth quadratic generic memristor, this paper proposes a memristor-based Lorenz chaotic system. Different from the chaotic system on account of memristor feedback, this system takes a variable of the original Lorenz chaotic system as an inner state variable of memristor, so as to ensure that the system dimension does not increase. Stability analysis shows that the system has the same equilibrium point and stability as the original Lorenz system, namely, one unstable saddle point and two unstable saddle foci. By means of bifurcation diagram, Lyapunov exponent spectra, and phase plot, the dynamics of the proposed memristive system are revealed. The simulated results show that the memristive Lorenz chaotic system possesses coexisting bistable mode and self-similar bifurcation structures. What is more interesting is that the amplitude of the system can be regulated by changing the inner parameters of the generic memristor. Finally, the equivalent circuits of memristor and memristive system are designed and also synthesized by analog components. Simulation results confirm the correctness of the numerical simulations.

Key words: generic memristor, chaotic dynamics, Lorenz chaotic system, bistable mode, circuit implementation

CLC Number:

O415.5

Shuang ZHAO, Xiangjun CHEN, Yunzhen ZHANG. Dynamics Analysis and Circuit Implementation of the Memristive Lorenz Chaotic System[J]. Chinese Journal of Computational Physics, 2024, 41(2): 268-276.

Figures/Tables 8

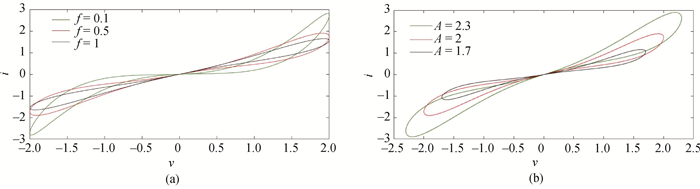

Fig.1 Pinched hysteresis loops of the generic memristor at (a) input voltage A=2 with frequency f=0.1, 0.5, and 1; (b) input frequency f=0.5 with voltage A=1.7, 2, and 2.3

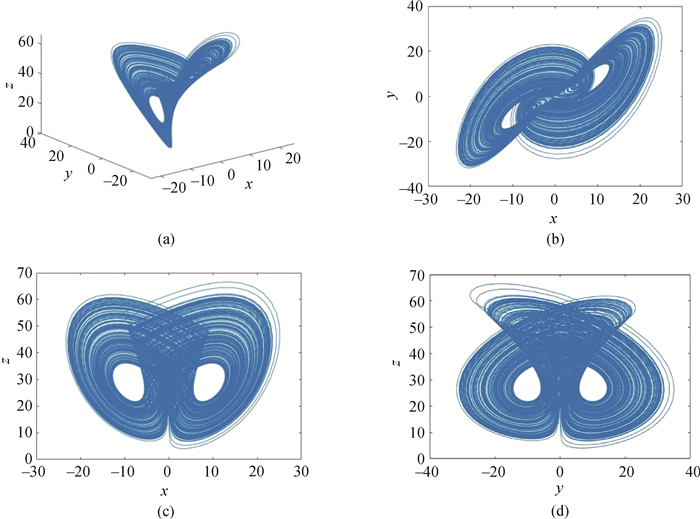

Fig.2 Phase plots of the memristive Lorenz chaotic system (a) x-y-z phase space; (b) x-y phase plane; (c) x-z phase plane; (d) y-z phase plane

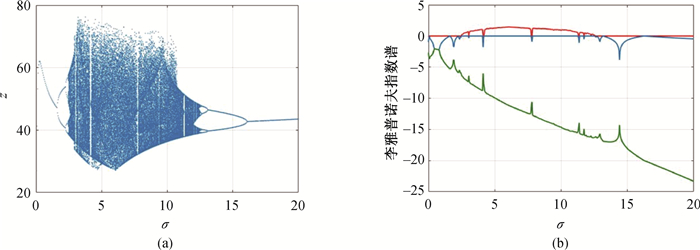

Fig.3 Bifurcation behaviors with the change of parameter σ (a) bifurcation diagram; (b) Lyapunov exponent spectra

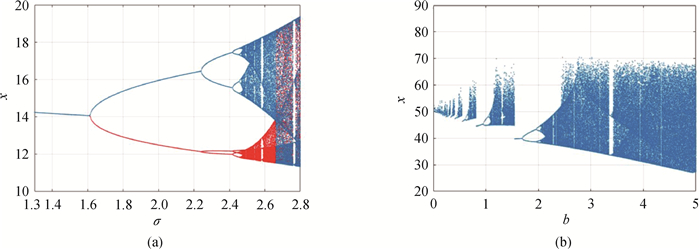

Fig.4 Two kinds of special bifurcation behaviors (a) coexisting bifurcation with the change of σ; (b) bifurcation behaviors with the change of parameter b

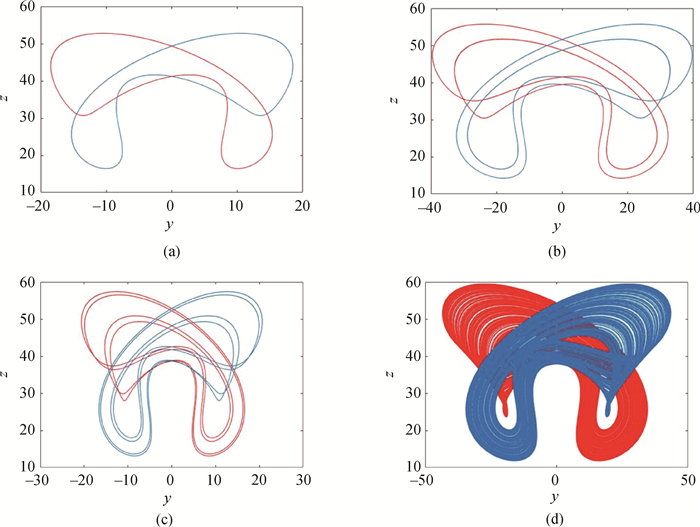

Fig.5 Coexisting attractor behaviors (a) σ = 2; (b) σ = 2.3; (c) σ = 2.44; (d) σ = 2.6

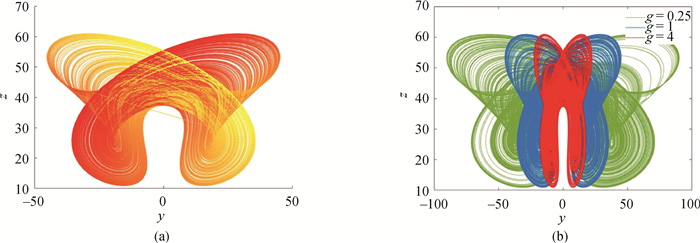

Fig.6 Butterfly attractors with (a) σ = 2.7 and g = 1; (b) σ = 2.7 and different values of g

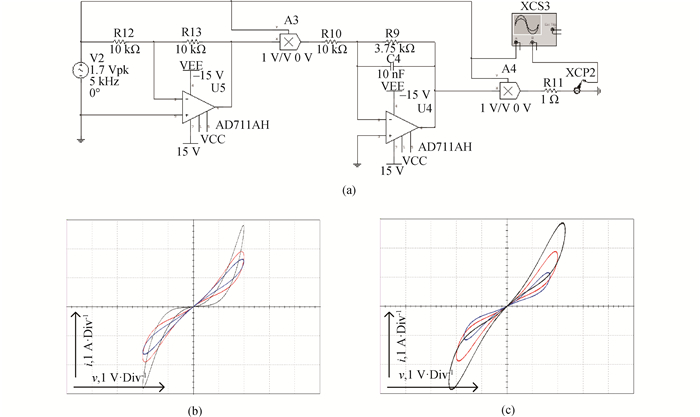

Fig.7 (a) Equivalent circuit of generic memristor and its pinched hysteresis loops: (b) input voltage A = 2 with frequency F = 1 kHz, 5 kHz, and 10 kHz; (c) input frequency F = 5 kHz with voltage A = 1.7 V, 2 V and 2.3 V

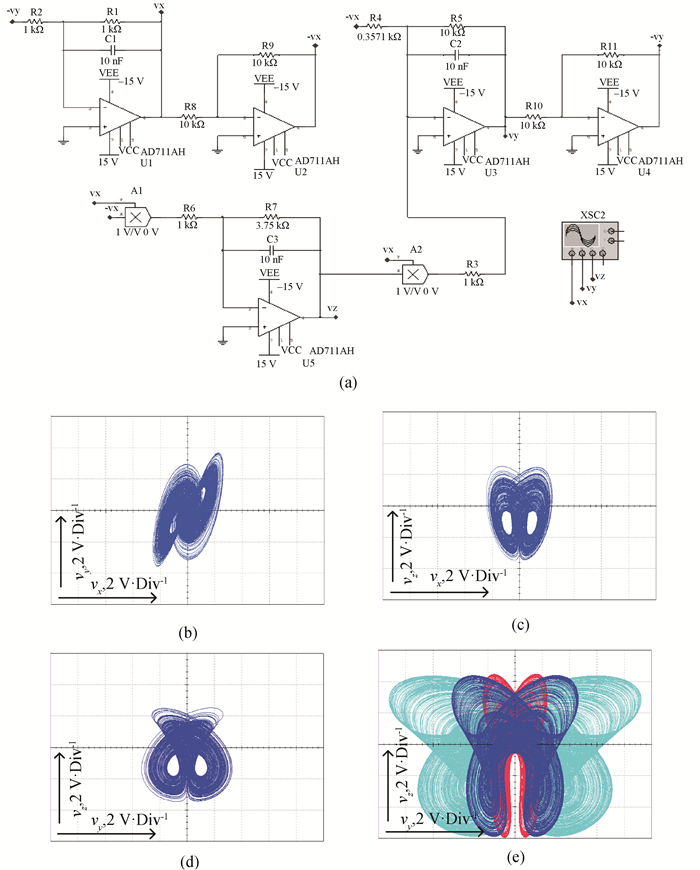

Fig.8 (a) System equivalent circuit diagram and phase diagram verification: (b) x-y phase plane verification; (c) x-z phase plane verification; (d) y-z phase plane verification; (e) amplitude control verification

References 19

1	LORENZ E N . Deterministic nonperiodic flow[J]. Journal of the Atmospheric Sciences, 1963, 20 (2): 130- 141. DOI
2	RÖSSLER O E . An equation for continuous chaos[J]. Physics Letters A, 1976, 57 (5): 397- 398. DOI
3	SPROTT J C . Some simple chaotic flows[J]. Physical Review E, 1994, 50 (2): R647- R650. DOI
4	CHEN Guanrong , UETA T . Yet another chaotic attractor[J]. International Journal of Bifurcation and Chaos, 1999, 9 (7): 1465- 1466. DOI
5	LV Jinhu , CHEN Guanrong . A new chaotic attractor coined[J]. International Journal of Bifurcation and Chaos, 2002, 12 (3): 659- 661. DOI
6	周倩, 韦笃取. 场耦合忆阻神经网络的电活动[J]. 计算物理, 2020, 37 (6): 750- 756.
7	唐利红, 贺宗梅, 姚延立. 具有隐藏超级多稳定性的磁感应HR神经元及其电路实现[J]. 计算物理, 2022, 39 (5): 589- 597.
8	XU Quan , JU Zhutao , DING Shoukui , et al. Electromagnetic induction effects on electrical activity within a memristive Wilson neuron model[J]. Cognitive Neurodynamics, 2022, 16 (5): 1221- 1231. DOI
9	罗佳, 孙亮, 乔印虎. 忆阻突触耦合环形Hopfield神经网络动力学分析及其电路实现[J]. 计算物理, 2022, 39 (1): 109- 117.
10	BAO Han , YU Xihong , XU Quan , et al. Three-dimensional memristive Morris-Lecar model with magnetic induction effects and its FPGA implementation[J]. Cognitive Neurodynamics, 2023, 17 (4): 1079- 1092. DOI
11	刘丽君, 韦笃取. 忆阻Rulkov神经网络同步研究[J]. 计算物理, 2023, 40 (3): 389- 400.
12	刘兴策, 刘俊俏. 五维洛伦兹型忆阻混沌系统及其电路实现[J]. 大连工业大学学报, 2022, 41 (3): 220- 227.
13	阮静雅, 孙克辉, 牟俊. 基于忆阻器反馈的Lorenz超混沌系统及其电路实现[J]. 物理学报, 2016, 65 (19): 25- 35.
14	张琳琳, 张烁. 基于Lorenz系统的忆阻混沌系统分析[J]. 电子质量, 2016, (8): 1- 5. DOI
15	HUANG Lilian , LIU Shuai , XIANG Jianhong , et al. Design and multistability analysis of five-value memristor-based chaotic system with hidden attractors[J]. Chinese Physics B, 2021, 30 (10): 100506. DOI
16	曹可, 赖强, 赖聪. 含多吸引子的忆阻混沌系统的分析与实现[J]. 深圳大学学报(理工版), 2022, 39 (4): 480- 488.
17	秦铭宏, 赖强, 吴永红. 具有无穷共存吸引子的简单忆阻混沌系统的分析与实现[J]. 物理学报, 2022, 71 (16): 160502.
18	JIANG Yicheng , LI Chunbiao , LIU Zuohua , et al. Simplified memristive lorenz oscillator[J]. IEEE Transactions on Circuits and Systems Ⅱ-Express Briefs, 2022, 69 (7): 3344- 3348.
19	ZHANG Yunzhen , PING Yuan , ZHANG Zhili , et al. Recent advances in dimensionality reduction modeling and multistability reconstitution of memristive circuit[J]. Complexity, 2021, 2021, 2747174.
