First-principles Study on the Influence of Alloying Elements on Galvanic Corrosion of Ternary L12-Al-Zr-X Aluminum Alloys Surface

doi:10.19596/j.cnki.1001-246x.8678

Abstract

Abstract:

The galvanic corrosion of aluminum alloy mainly depends on the potential difference between the second phase and matrix. The greater the potential difference, the stronger the corrosion driving force. Based on AlZr binary alloy, we calculated the work functions of the (100), (110) and (111) planes of 19 ternary precipitates L1₂-Al_xZr_yX_z(X=Pd, Pt, Au, K, Rb, Sr, Ba, Ca, Yb, La, Ce, Y, Er, Sc, Zr, Ti, Cd, Hf, In) comprehensively by using the first principle calculations. The relationship between the work functions and the electronegativity of doped atoms was analyzed, and the fundamental reason for the influence of doped atoms on the surface galvanic corrosion performance of L1₂ type Al-Zr-X ternary aluminum alloy is clarified from the electronic level. Through calculation, we find that when different doped crystal surfaces are exposed to the surface, the potential difference between the phase and the matrix is also different due to the varying work functions. The doped atoms Hg, Cd, Zr, Ti, Hf can increase the work functions of the (100) surface of L1₂-Al_xZr_yX_z ternary precipitates, Hg, Cd, In, Ti, Hf can increase the work function of the (110) surface, and Pd, Pt, Au, In, Sc, Rb, Sr, Yb, Y, Er, K, Ba, La, Ce and Ca could decrease the work function of the (111) surface. These will lead to the further reduction of the potential difference between the phase and matrix. In addition, the linear positive correlation between the electronegativity of doped atoms and the work function of the compound is revealed. In contrast, In, Cd, Hg atoms whose electronegativity is close to Al and doping the site of Al, and Ti, Hf atoms whose electronegativity is close to Zr and doping the site of Zr have less influence on the work function of the phase, and the potential difference between their compounds and aluminum matrix is small, which is beneficial to improving the corrosion resistance of materials. Other doped atoms have greater influence on the work function of the phase. Research results have explained some of the experimental results of corrosion resistance studies, which provided a theoretical reference for optimizing the design of alloy composition and improving the corrosion resistance of aluminum alloy materials.

Key words: galvanic corrosion, aluminum alloys, L1₂ phase, alloy atoms, first-principles computations

CLC Number:

TG171

Qingzhou ZHANG, Dawei FAN, Linghong LIU. First-principles Study on the Influence of Alloying Elements on Galvanic Corrosion of Ternary L1₂-Al-Zr-X Aluminum Alloys Surface[J]. Chinese Journal of Computational Physics, 2023, 40(6): 699-711.

Figures/Tables 9

Table 1 Work function (W) and surface energy (Esurf) of different surfaces of Al matrix

Surface	W/eV		W_exp/eV	E_surf/(J·m^-2)
(100)	4.34	4.30^[48]	4.41^[47]	1.03	0.96^[17]
(110)	4.09	4.09^[48]	4.28^[47]	1.04	1.02^[17]
(111)	4.02	4.02^[48]	4.24^[47]	0.84	0.73^[17]

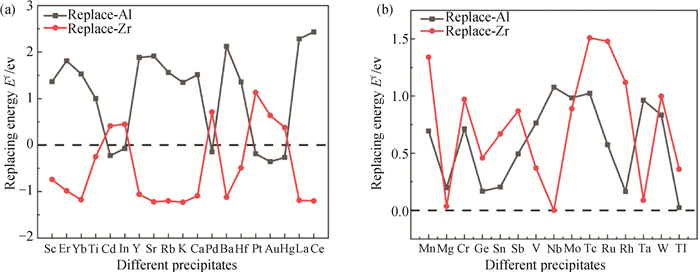

Fig.1 Substitution formation enthalpy Ef of the Al/Zr sites in the precipitated phase of L12-Al3Zr binary by X atoms (the dotted line indicates Ef=0) (a) the substitution of Al/Zr atoms by X atom; (b) the substitution of Al/Zr atoms not by X atoms

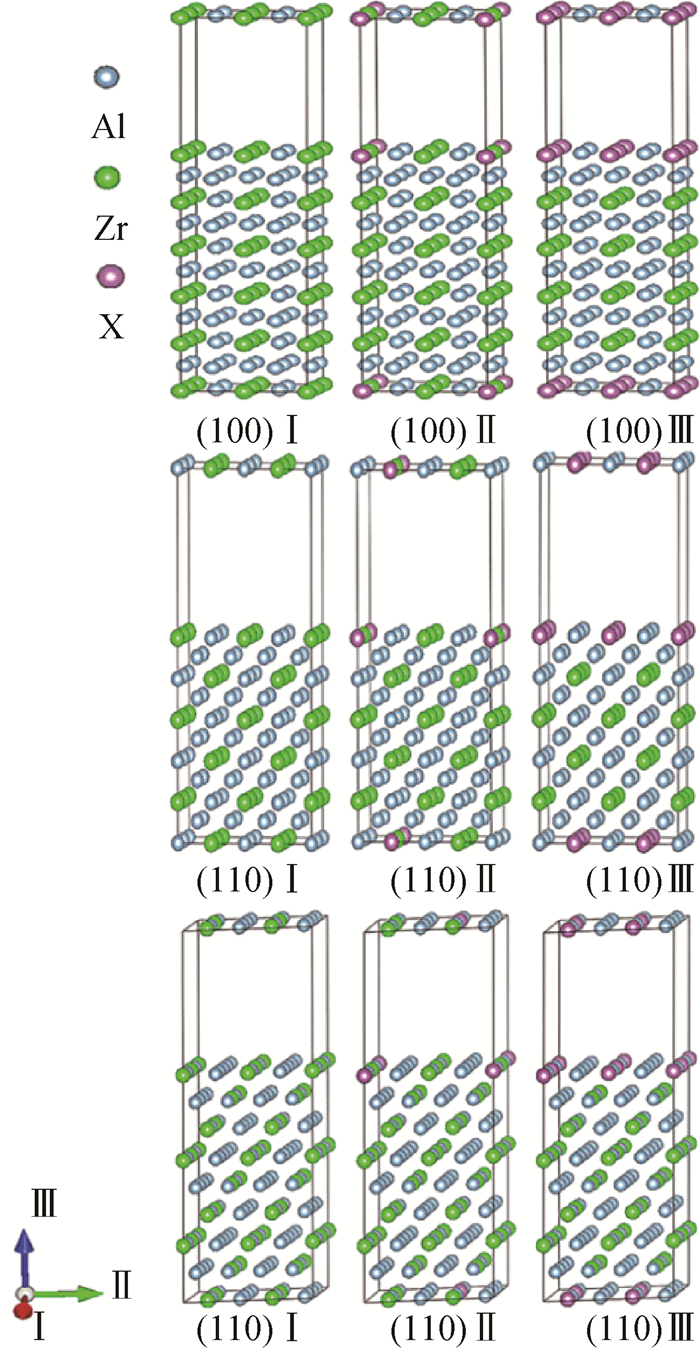

Fig.2 L12-AlxZryXz supercell structure with (100) (110) (111) three different surfaces Ⅰ, Ⅱ and Ⅲ the conditions before doping, doping of X atom with low concentration and doping of X atom with high concentration respectively (Each supercell with a vacuum layer of 1.2 nm.)

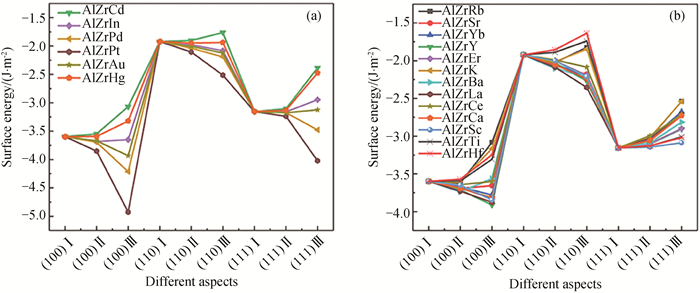

Fig.3 Surface energy of L12-AlxZryXz structures under different doping conditions (a) the Al sites in the L12-Al3Zr precipitated phase by X atoms; (b) the Zr sites in the L12-Al3Zr precipitated phase by X atoms

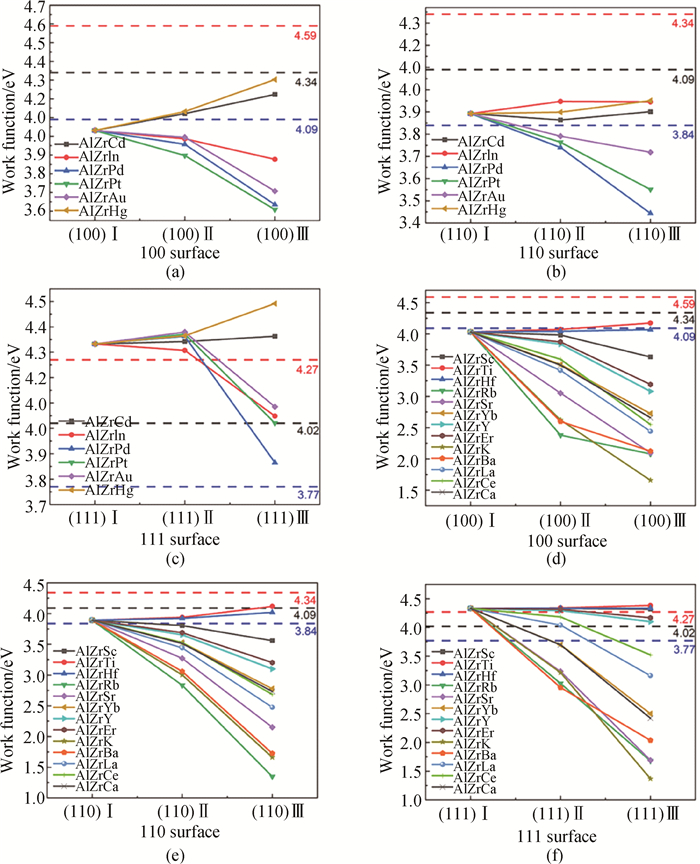

Fig.4 Work function of L12-AlxZryXz structure under different doping conditions (a) (100), (b) (110) and (c) (111) surfaces of the L12-AlxZryXz structure (X atoms occupy the Al sites in the L12-Al3Zr precipitated phase.); (d) (100), (e) (110) and (f) (111) surfaces of the L12-AlxZryXz structure (X atoms occupy the Zr sites in the L12-Al3Zr precipitated phase. The black dashed line represents the work function value of the corresponding surface of Al matrix in the figure, and the red/blue dashed line respectively represents the reference line higher than/lower than the black dashed line work function of 250 meV.)

Table 2 Electronegativity of different atoms

atom	electronegativity^[56]	atom	electronegativity^[56]
In	1.49	Er	1.11
Al	1.47	Y	1.11
Cd	1.46	La	1.08
Hg	1.44	Yb	1.06
Pt	1.44	Ce	1.06
Au	1.42	Ca	1.04
Pd	1.35	Sr	0.99
Ti	1.32	Ba	0.97
Hf	1.23	K	0.91
Zr	1.22	Rb	0.89
Sc	1.20

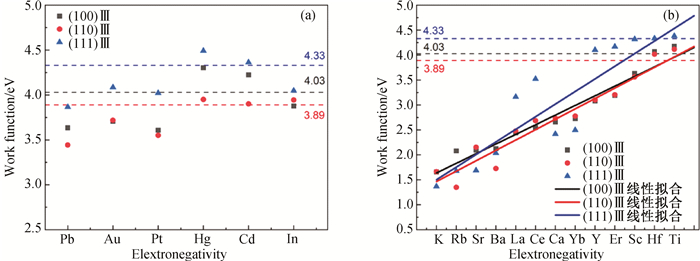

Fig.5 Relation between the Ⅲ surface work function of L12-AlxZryXz structure and electronegativity of doping atoms (The electronegativity of doping atoms gradually increases from left to right, where the black/red/blue dashed lines represent the surface work function values of (100)Ⅲ, (110)Ⅲ and (111)Ⅲ of L12-Al3Zr precipitated phases, respectively.) (a) the Al sites in the L12-Al3Zr precipitated phase by X atoms; (b) the Zr sites in the L12-Al3Zr precipitated phase by X atoms

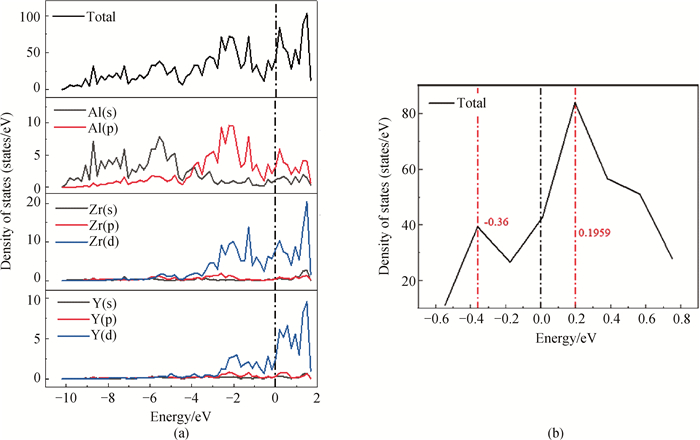

Fig.6 Total density of states (TDOS) and partial density of states (PDOS) on the (100)Ⅲ surface of L12-AlxZryYz precipitated phase (a) (100)Ⅲ surface structure of L12-Al-Zr-Y precipitated phase; (b) enlarged views of the pseudogap

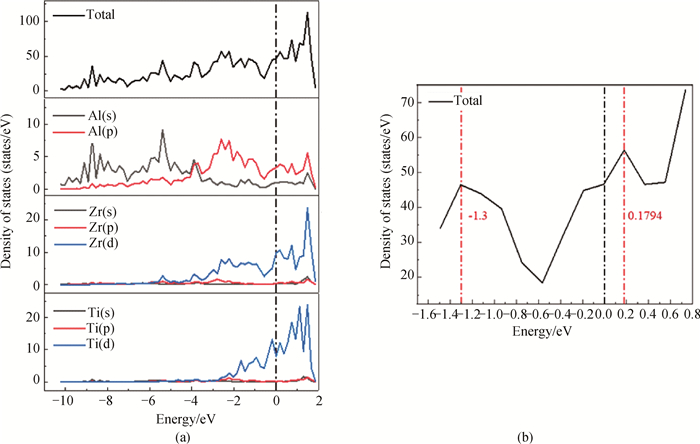

Fig.7 Total density of states (TDOS) and partial density of states (PDOS) on the (100)Ⅲ surface of L12-AlxZryTiz precipitated phase (a) (100)Ⅲ surface structure of L12-Al-Zr-Ti precipitated phase; (b) enlarged views of the pseudogap

References 57
