Efficient Asynchronous Performance Prediction for Heterogeneous Systems

doi:10.19596/j.cnki.1001-246x.8759

Abstract

Abstract:

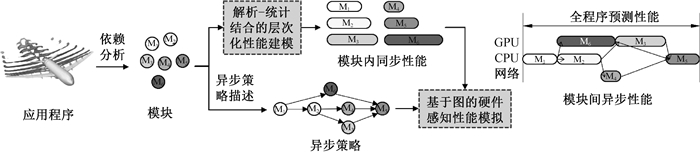

An efficient asynchronous performance prediction method is proposed to guide the design of asynchronous strategies. This method decomposes the performance behavior of synchronous and asynchronous execution and achieves fast and accurate prediction through hierarchical modeling, graph-based simulation and other techniques. Based on this method, the performance of HPL on the Sunway TaihuLight supercomputer is predicted. The experimental results show that the method achieves an accuracy of 96.61% on average for 4 million cores, with a prediction cost as low as milliseconds.

Key words: heterogeneous high-performance computers, performance modeling, asynchronous strategy

CLC Number:

TP302.7

Yuyang JIN, Zixuan MA, Jidong ZHAI. Efficient Asynchronous Performance Prediction for Heterogeneous Systems[J]. Chinese Journal of Computational Physics, 2024, 41(1): 40-51.

Figures/Tables 12

References 25

1	DONGARRA J J , MEUER H W , STROHMAIER E . TOP500 supercomputer sites[J]. Supercomputer, 1997, 13 (1): 89- 111.
2	YASHIRO H, TERAI M, YOSHIDA R, et al. Performance analysis and optimization of nonhydrostatic icosahedral atmospheric model (NICAM) on the K computer and TSUBAME2.5[C]//Proceedings of the Platform for Advanced Scientific Computing Conference. Lausanne, Switzerland: Association for Computing Machinery, 2016: 1-8.
3	徐小文, 莫则尧, 武林平. 迭代方法中基于渐近规模的通信与计算比分析[J]. 计算机学报, 2013, 36 (4): 782- 789.
4	任健, 武林平, 申卫东. 基于JASMIN框架多物理耦合程序的性能优化及分析[J]. 计算物理, 2015, 32 (4): 431- 436.
5	范宣华, 王柯颖, 肖世富, 等. 强脉动压力下飞行器随机振动分析算法与并行实现[J]. 计算物理, 2021, 38 (2): 192- 198. DOI
6	于晨阳, 范宣华, 王柯颖, 等. 基于PANDA平台的多点基础激励谐响应的并行计算[J]. 计算物理, 2018, 35 (4): 443- 450. DOI
7	水超洋, 于献智, 王银山, 等. 国产异构系统上HPL的优化与分析[J]. 软件学报, 2021, 32 (8): 2319- 2328.
8	刘芳芳, 王志军, 汪荃, 等. 国产异构系统上的HPCG并行算法及高效实现[J]. 软件学报, 2021, 32 (8): 2341- 2351.
9	AO Yulong, YANG Chao, WANG Xinliang, et al. 26 PFLOPS stencil computations for atmospheric modeling on sunway TaihuLight[C]//2017 IEEE International Parallel and Distributed Processing Symposium (IPDPS). Orlando, FL, USA: IEEE, 2017: 535-544.
10	蔡颖, 张存波, 刘旭, 等. 二维球坐标系中子输运方程的一种并行SN算法[J]. 计算物理, 2022, 39 (2): 143- 152. DOI
11	MICIKEVICIUS P. 3D finite difference computation on GPUs using CUDA[C]//Proceedings of 2nd workshop on general purpose processing on graphics processing units. Washington, D.C., USA: Association for Computing Machinery, 2009: 79-84.
12	ZHANG Hao, ZHENG Zeyu, XU Shizhen, et al. Poseidon: an efficient communication architecture for distributed deep learning on GPU clusters[C]//Proceedings of the 2017 USENIX Conference on USENIX Annual Technical Conference. Santa Clara, CA, USA: USENIX Association, 2017: 181-193.
13	CULLER D, KARP R, PATTERSON D, et al. LogP: Towards a realistic model of parallel computation[C]//Proceedings of the fourth ACM SIGPLAN symposium on Principles and practice of parallel programming. San Diego, California, USA: Association for Computing Machinery, 1993: 1-12.
14	BARNES B J, ROUNTREE B, LOWENTHAL D K, et al. A regression-based approach to scalability prediction[C]//Proceedings of the 22nd annual international conference on Supercomputing. Island of Kos, Greece: Association for Computing Machinery, 2008: 368-377.
15	BHATTACHARYYA A, HOEFLER T. PEMOGEN: Automatic adaptive performance modeling during program runtime[C]//2014 23rd International Conference on Parallel Architecture and Compilation Techniques (PACT). Edmonton, AB, Canada: IEEE, 2014: 393-404.
16	RODRIGUES A F , HEMMERT K S , BARRETT B W , et al. The structural simulation toolkit[J]. ACM SIGMETRICS Performance Evaluation Review, 2011, 38 (4): 37- 42.
17	CASANOVA H. Simgrid: A toolkit for the simulation of application scheduling[C]//Proceedings First IEEE/ACM International Symposium on Cluster Computing and the Grid. Brisbane, QLD, Australia: IEEE, 2001: 430-437.
18	ZHAI Jidong , CHEN Wenguang , ZHENG Weimin . PHANTOM: Predicting performance of parallel applications on large-scale parallel machines using a single node[J]. ACM Sigplan Notices, 2010, 45 (5): 305- 314.
19	JIN Yuyang, WANG Haojie, ZHONG Runxin, et al. PerFlow: A domain specific framework for automatic performance analysis of parallel applications[C]//Proceedings of the 27th ACM SIGPLAN Symposium on Principles and Practice of Parallel Programming. Seoul, Republic of Korea: Association for Computing Machinery, 2022: 177-191.
20	DONGARRA J J , LUSZCZEK P , PETITET A . The LINPACK benchmark: Past, present and future[J]. Concurrency and Computation: Practice and Experience, 2003, 15 (9): 803- 820.
21	CALOTOIU A, BECKINSALE D, EARL C W, et al. Fast multi-parameter performance modeling[C]//2016 IEEE International Conference on Cluster Computing (CLUSTER). Taipei, Taiwan: IEEE, 2016: 172-181.
22	GABRIEL E, FAGG G E, BOSILCA G, et al. Open MPI: Goals, concept, and design of a next generation MPI implementation[C]//Recent Advances in Parallel Virtual Machine and Message Passing Interface: 11th European PVM/MPI Users' Group Meeting. Budapest, Hungary: Springer, 2004: 97-104.
23	THAKUR R , RABENSEIFNER R , GROPP W . Optimization of collective communication operations in MPICH[J]. The International Journal of High Performance Computing Applications, 2005, 19 (1): 49- 66.
24	BAR-NOY A, KIPNIS S. Designing broadcasting algorithms in the postal model for message-passing systems[C]//Proceedings of the fourth annual ACM symposium on Parallel algorithms and architectures. San Diego, California, USA: Association for Computing Machinery, 1992: 13-22.
25	ELLER P R, HOEFLER T, GROPP W. Using performance models to understand scalable Krylov solver performance at scale for structured grid problems[C]//Proceedings of the ACM International Conference on Supercomputing. Phoenix, Arizona: Association for Computing Machinery, 2019: 138-149.

软件参数	含义
P	描述进程网格的行数
Q	描述进程网格的列数，进程规模应等于P×Q
N	问题规模，表示求解N×N的矩阵
NB	分块大小，表示将矩阵划分为NB×NB的块矩阵
BCASTs	广播算法，包括1rg、1rM、2rg、2rM、Lng和LnM算法
SWAP	行交换算法，包括bin-exch、spreadroll和mix算法

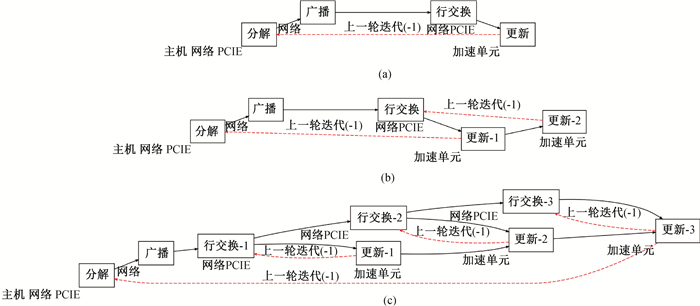

DEPTHs	前瞻深度(Loop-ahead depth)，表示提前进行分解操作的迭代轮数，可以描述不同的异步策略

软件参数	含义
P	描述进程网格的行数
Q	描述进程网格的列数，进程规模应等于P×Q
N	问题规模，表示求解N×N的矩阵
NB	分块大小，表示将矩阵划分为NB×NB的块矩阵
BCASTs	广播算法，包括1rg、1rM、2rg、2rM、Lng和LnM算法
SWAP	行交换算法，包括bin-exch、spreadroll和mix算法
DEPTHs	前瞻深度(Loop-ahead depth)，表示提前进行分解操作的迭代轮数，可以描述不同的异步策略

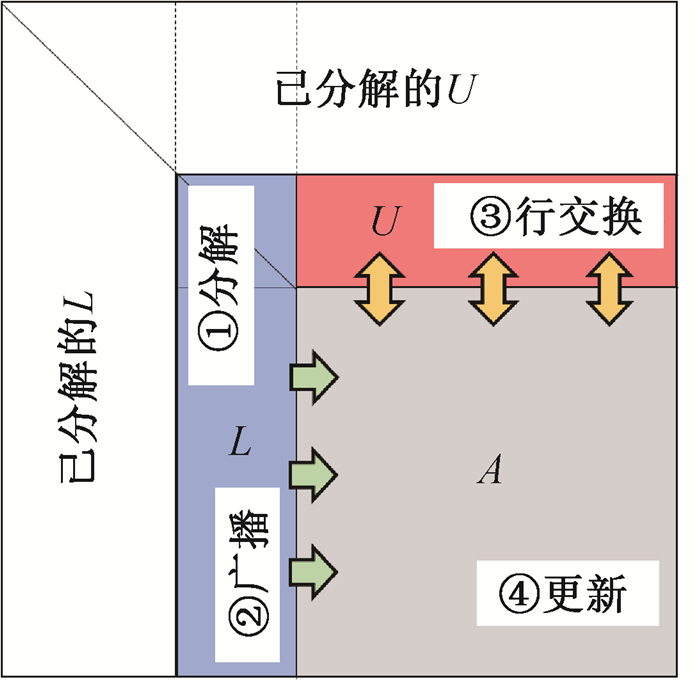

模块	应用层关键特征模型
分解	计算量 = mp×NB²
	访存量(mp+NB)×NB
	通信量 = 2NB
	通信次数 = log P
广播	通信量 = mp×NB
广播	$\text { 通信次数}= \begin{cases}(Q-1) / 2, & 1 \mathrm{rg} \\ \frac{1}{2} \log Q+Q^{-1}+1, & \operatorname{Lng}\end{cases}$
行交换	$\text { 通信量}=\eta \times n q \times N B, \eta= \begin{cases}2, & \text { binexch } \\ 3, & \text { spreadroll }\end{cases}$
行交换	$\text { 通信次数}=\frac{1}{P} \log P+2$
更新	计算量 = 2×mp×nq×NB
更新	访存量 = 2×mp×NB

模块	应用层关键特征模型
分解	计算量 = mp×NB²
	访存量(mp+NB)×NB
	通信量 = 2NB
	通信次数 = log P
广播	通信量 = mp×NB
广播	$\text { 通信次数}= \begin{cases}(Q-1) / 2, & 1 \mathrm{rg} \\ \frac{1}{2} \log Q+Q^{-1}+1, & \operatorname{Lng}\end{cases}$
行交换	$\text { 通信量}=\eta \times n q \times N B, \eta= \begin{cases}2, & \text { binexch } \\ 3, & \text { spreadroll }\end{cases}$
行交换	$\text { 通信次数}=\frac{1}{P} \log P+2$
更新	计算量 = 2×mp×nq×NB
更新	访存量 = 2×mp×NB

进程规模	HPL软件输入参数				实测结果/%	预测结果/%	误差/%
进程规模	N	P	Q	NB	实测结果/%	预测结果/%	误差/%
32	168 960	4	8	384	82.78	84.40	1.96
256	491 520	16	16	384	83.31	84.26	1.14
1 024	970 752	32	32	384	82.52	83.93	1.71
4 096	1 941 504	64	64	384	81.06	83.65	3.20
16 384	3 833 856	64	256	384	78.26	81.36	3.96
32 768	5 505 024	128	256	384	79.00	83.50	5.70
65 536	7 667 712	128	512	384	75.34	79.90	6.05
