Sparse General Matrix-matrix Multiplication for Sunway Manycore Architecture

doi:10.19596/j.cnki.1001-246x.8766

Abstract

Abstract:

A parallel algorithm for sparse general matrix-matrix multiplication (SpGEMM), swSpGEMM, targeting the new generation Sunway many-core architecture is proposed. The algorithm addresses the load balance issue caused by the distribution of nonzeros in input matrix, using a light weight parallel task partitioning. For the irregular memory access and inefficient instruction pipelining in accumulating the product, a hierarchical sparse accumulator has been proposed to maximize the utilization of local memory with different input matrix features and to relieve the instruction dependency in integer searching, resulting in more efficient use of the computing capability of the hardware. On large matrices from the SuiteSparse sparse matrix collection, the algorithm outperforms MKL on two Intel Xeon GOLD 6132 processors by 21.1% and cuSPARSE on NVIDIA A100 by 95.3%.

Key words: Sunway many-core architecture, sparse matrix computation, matrix-matrix multiplication

CLC Number:

O4-39

Kan LIU, Lei YANG, Wei XUE, Wenguang CHEN. Sparse General Matrix-matrix Multiplication for Sunway Manycore Architecture[J]. Chinese Journal of Computational Physics, 2024, 41(1): 22-32.

Figures/Tables 10

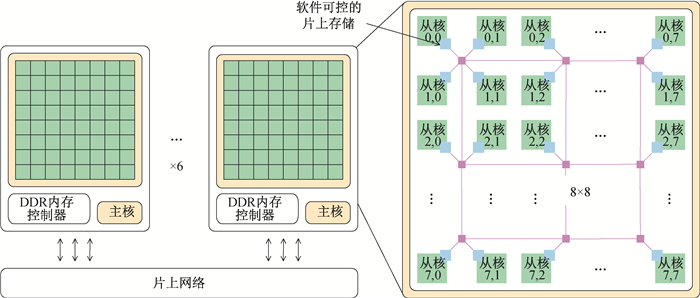

Fig.1 The architecture of SW26010-Pro

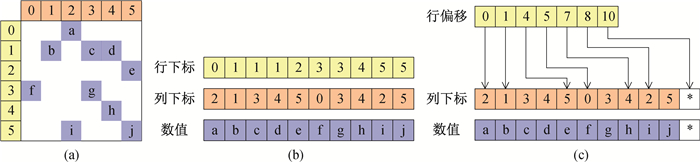

Fig.2 An example of sparse matrix representation (a)sparse matrix; (b) COO; (c) CSR

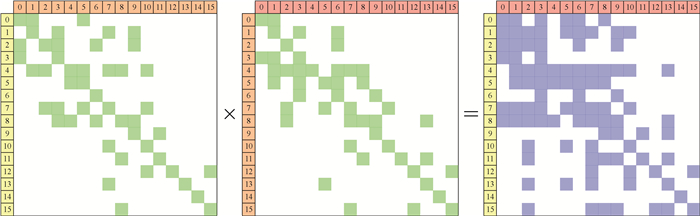

Fig.3 An example of SpGEMM

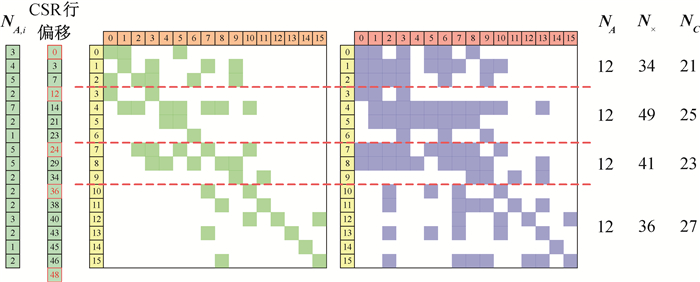

Fig.4 An example of partition according to the number of nonzeros A

Fig.5 An example of partition according to the number of intermediate products

Table 1 Experimental platforms

	平台1	平台2	平台3
处理器	申威26010-Pro 6核组6主核+384从核	Intel Xeon Gold 6132 2芯片28核56线程	NVIDIA A100-PCIe
双精度浮点计算能力	13.8 TFlop·s^-1	2.33 TFlop·s^-1 Base	9.7 TFlop·s^-1 19.5 TFlop·s^-1 Tensor Core
内存容量	96 GB	96 GB	82 GB GPU
内存带宽	307 GB·s^-1	256 GB·s^-1	1.9 TB·s^-1
基础软件	swgcc	icc 2019	CUDA 11.4 GCC 10.2.1

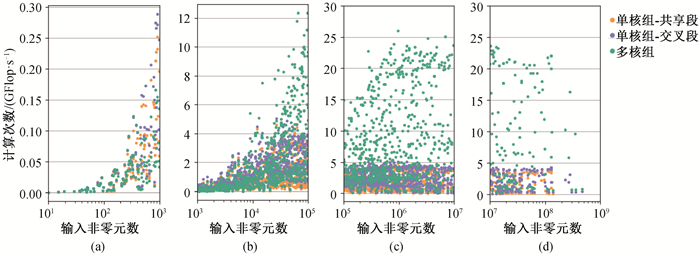

Fig.6 The floating-point performance of swSpGEMM (a) nnz 101~103; (b) nnz 103~105; (c) nnz 105~107; (d) nnz 107~109

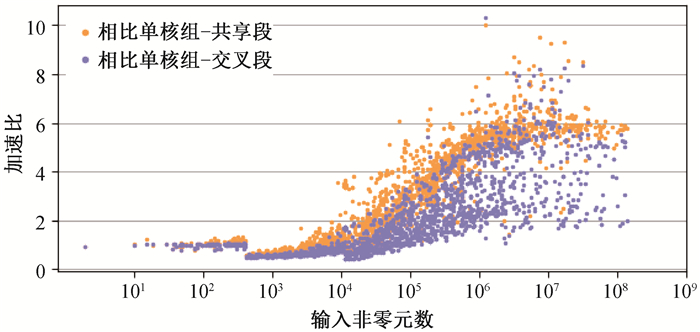

Fig.7 The floating-point performance of swSpGEMM

Fig.8 Performance between swSpGEMM and standard library on other platforms (a) nnz 101~103; (b) nnz 103~105; (c) nnz 105~107; (d) nnz 107~109

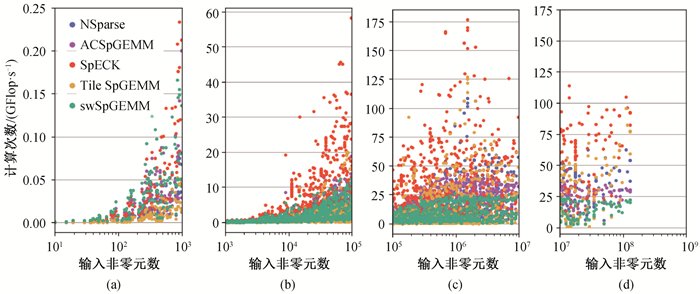

Fig.9 Performance between swSpGEMM and the state-of-the-art algorithms on GPU (a) nnz 101~103; (b) nnz 103~105; (c) nnz 105~107; (d) nnz 107~109

References 25
