SEMD: A Cross-platform Automatic Performance Optimization Programming Tool for Real Numerical Simulation Software

doi:10.19596/j.cnki.1001-246x.8777

Abstract

Abstract:

Aiming at the lack of reusability and portability in the manual optimization of software, we propose and implement SEMD, a cross-platform automatic performance optimization programming tool for numerical simulation software. It abstracts numerical computing loop programming using high-level semantics, which is prevalent in the field of numerical simulation, completely shielding underlying hardware features and performance optimization implementations. Therefore, any numerical subroutines written based on SEMD can attain automatic cross-platform performance portability. Our tests demonstrate that SEMD's performance optimization effects exceed those of comparable products on three different processor architectures, including X86, ARM and GPU. Furthermore, SEMD has been successfully applied in the development of four real numerical simulation software programs in the fields of structure, fluid, and electromagnetic, resulting in an average performance improvement of 164% on hotspot subroutines.

Key words: automatic performance optimization, performance portability, numerical computing loops, programming interface

CLC Number:

TP312

Peng ZHANG, Aiqing ZHANG, Zeyao MO, Jingtao WANG. SEMD: A Cross-platform Automatic Performance Optimization Programming Tool for Real Numerical Simulation Software[J]. Chinese Journal of Computational Physics, 2024, 41(1): 52-63.

Figures/Tables 17

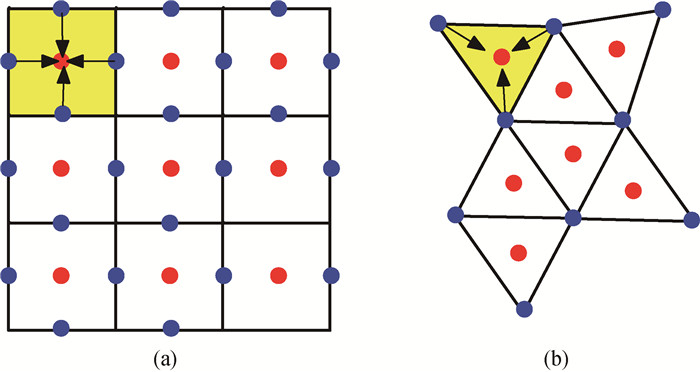

Fig.1 Schematic diagram of SEMD computing pattern (a) grid structure; (b)non-grid structure

Table 1 Conceptual definitions related to the SEMD interface

概念	含义
离散实体	网格单元上的离散位置，分为单元中心(Cell), 单元结点(Node), 单元棱心(Edge)等不同类型
实体集	由相同类型的离散实体构成的集合
场量	与离散实体分布相关的数据量，如物理场、网格坐标场等
参量	与离散实体分布无关的数据量，如物理参数等
单元计算格式	单次循环迭代内，场量与参量间的数值计算序列

Table 2 Definition format for primary data interface of SEMD

接口名称	接口定义形式
场量	FieldData<属性…>(参数…) 属性：数据类型、实体集类型、内存布局方式、内存管理方式参数：内存地址、实体集
参量	ParamData<属性…>(参数…) 属性：数据类型、内存布局方式、内存管理方式参数：索引范围、内存地址
实体集	EntitySet<属性…>(参数…) 属性：实体类型、索引空间类型、网格类型参数：索引空间、网格

Fig.2 Example of SEMD define_e_subroutine interface

Fig.3 Example of SEMD call_e_subroutine interface

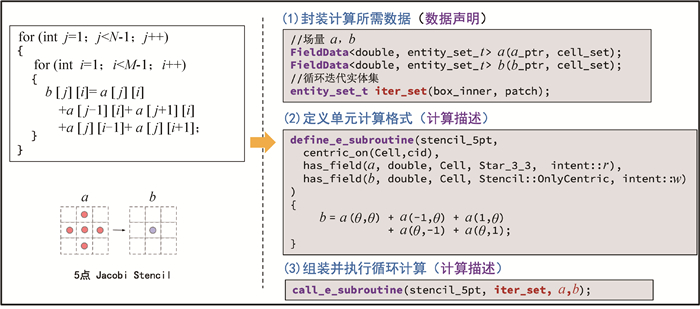

Fig.4 Programming example of SEMD interface: 5 point Jacobi-stencil loop

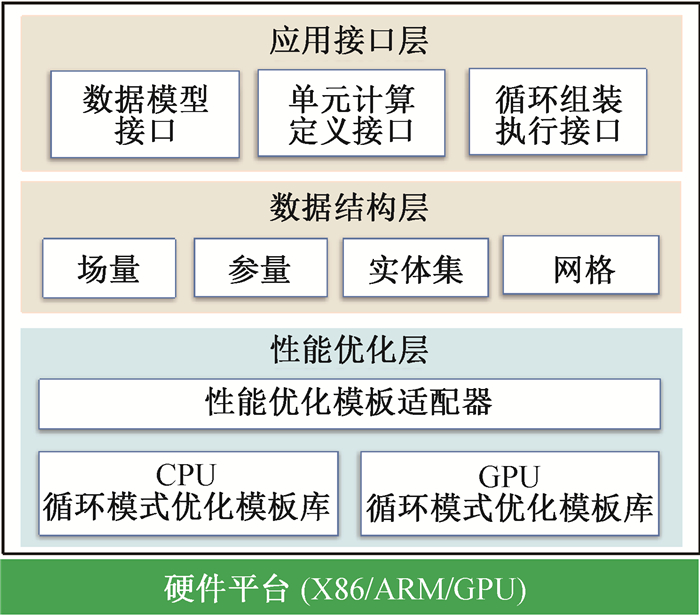

Fig.5 The software architecture of SEMD

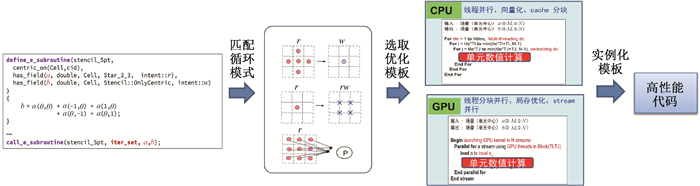

Fig.6 SEMD automatic performance optimization workflow diagram

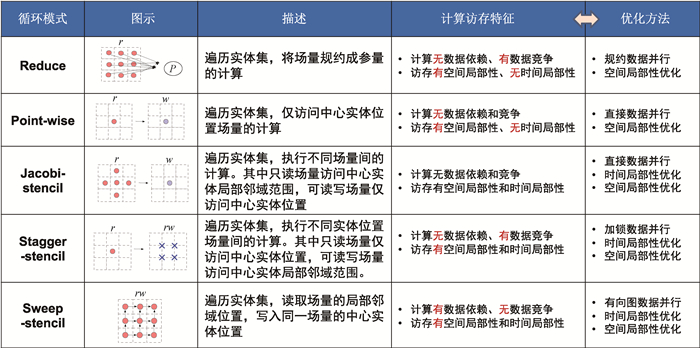

Fig.7 Classification of loop patterns based on "Compute-Memory Access" characteristics

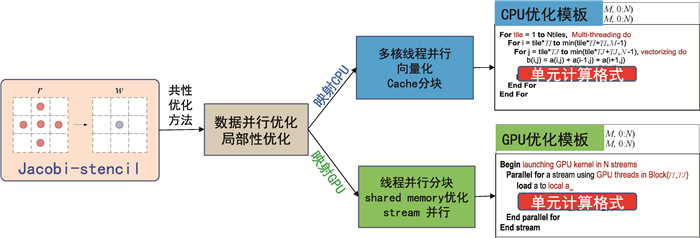

Fig.8 Schematic diagram of customization process for performance optimization template of Jacobi-stencil pattern

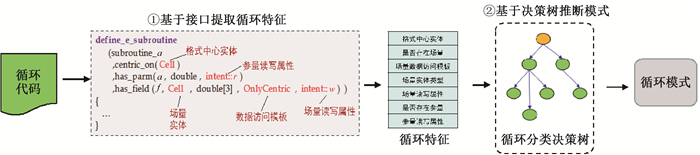

Fig.9 Automatic adaptation mechanism of loop patterns

Table 3 The computational scale of the test cases varies across different platforms

算例	网格计算规模
算例	CPU(串行)	CPU(并行)	GPU
Jacobi2D	1 000×1 000	2 000×2 000	2 000×2 000
Heat2D	1 000×1 000	2 000×2 000	2 000×2 000
Pointwise3D	100×100×100	200×200×200	200×200×200
Jacobi3D	100×100×100	200×200×200	200×200×200
Heat3D	100×100×100	200×200×200	200×200×200

Fig.10 Serial performance results of SEMD and Kokkos, RAJA on X86 CPU

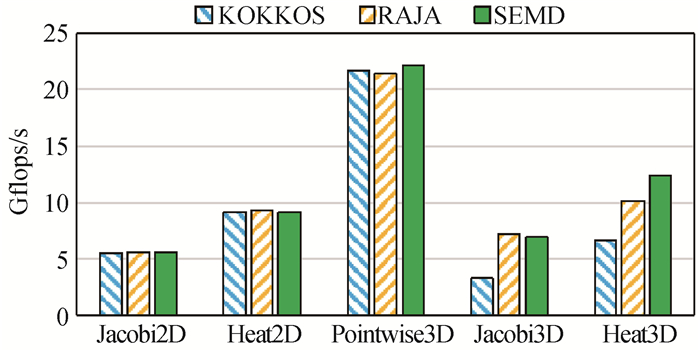

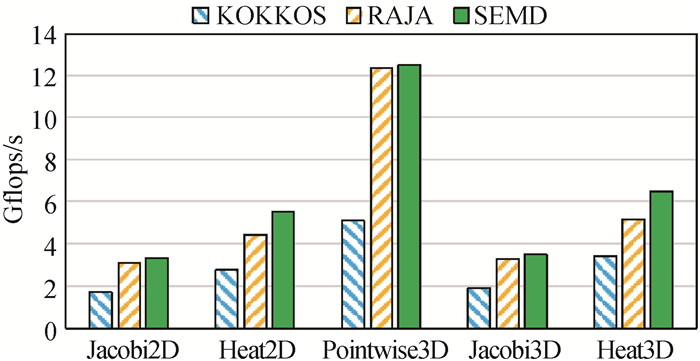

Fig.11 Parallel performance results of SEMD and Kokkos, RAJA on X86 CPU(12 Cores)

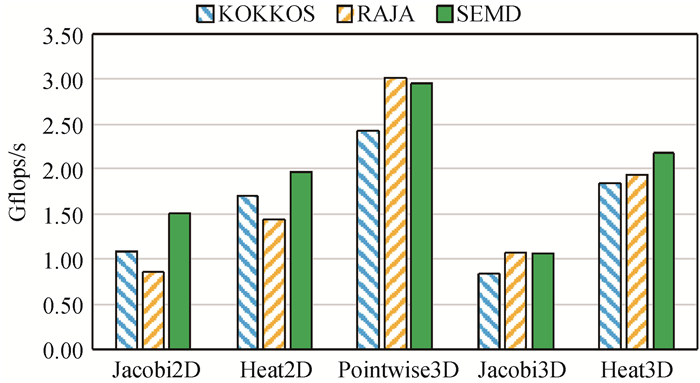

Fig.12 Serial performance results of SEMD and Kokkos, RAJA on ARM CPU

Fig.13 Parallel scaling results of SEMD and Kokkos, RAJA on ARM CPU

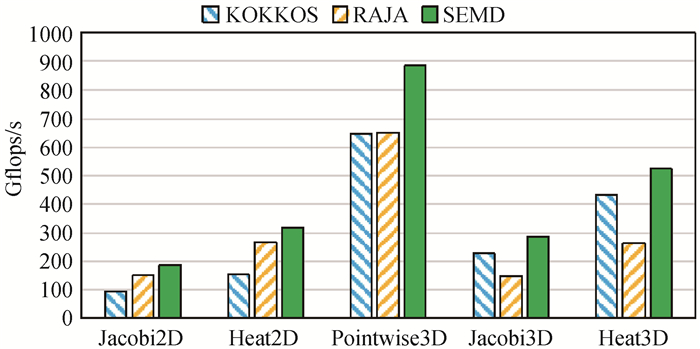

Fig.14 Performance results of SEMD and Kokkos, RAJA on GPU
