Application-oriented Preconditioning of Seepage Mechanics

doi:10.19596/j.cnki.1001-246x.8791

Abstract

Abstract:

The seepage mechanics model comprises multiple nonlinearly coupled partial differential equations. In various applications, seepage mechanics problems exhibit distinct characteristics and the corresponding solution methods are also very different. This paper focuses on the representative mathematical models used in oil and gas reservoir development. It introduces the mathematical formulation and application characteristics of multiphase multicomponent seepage mechanics equations within porous media, along with efficient techniques for solving their discretized linear equation systems, including commonly employed preconditioning methods. Additionally, this study appropriately modifies standard test cases and evaluates the shared-memory parallel efficiency of these preconditioning methods.

Key words: seepage mechanics, Darcy equation, poroelasticity equation, incomplete LU decomposition, algebraic multigrid method

CLC Number:

O246

Chunsheng FENG, Shizhe LI, Shenghao LIU, Chensong ZHANG, Li ZHAO. Application-oriented Preconditioning of Seepage Mechanics[J]. Chinese Journal of Computational Physics, 2024, 41(1): 98-109.

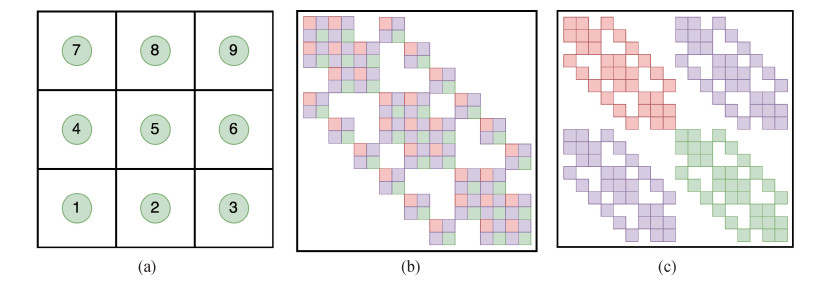

Figures/Tables 7

References 37

1	BEAR J .Dynamics of fluids in porous media[J].Soil Science,1975,120(2):162-163. DOI
2	袁益让.计算石油地质等领域的一些新进展[J].计算物理,2003,20(4):283-290. DOI
3	程林松, 肖双爱.稠油油藏蒸汽-泡沫驱油数值模拟方法[J].计算物理,2003,20(5):463-466. DOI
4	AZIZ K , SETTARI A .Petroleum reservoir simulation[M].London: Applied Science Publishers,1979.
5	CHEN Zhangxin , HUAN Guanren , MA Yuanle .Computational methods for multiphase flows in porous media[M].Philadelphia: Society for Industrial and Applied Mathematics,2006.
6	ABOU-KASSEM J H , ISLAM M R , ALI S M F .Petroleum reservoir simulation[M].2nd edAmsterdam: Gulf Professional Publishing,2020.
7	DOGRU A H, FUNG L S K, MIDDYA U, et al. A next-generation parallel reservoir simulator for giant reservoirs[C]//SPE Reservoir Simulation Symposium. The Woodlands, Texas: SPE, 2009: SPE-119272-MS.
8	WANG H F .Theory of linear poroelasticity with applications to geomechanics and hydrogeology[M].Princeton: Princeton University Press,2000.
9	DOUGLAS J Jr , PEACEMAN D W , RACHFORD H H Jr , et al.A method for calculating multi-dimensional immiscible displacement[J].Transactions of the AIME,1959,216(1):297-308. DOI
10	DARCY H .Les fontaines publiques de la ville de Dijon[M].Paris: Dalmont,1856.
11	叶继根, 吴向红.油气藏三维三相组分模型软件研制与应用[J].计算物理,2000,17(5):548-552. DOI
12	PENG D , ROBINSON D B .A rigorous method for predicting the critical properties of multicomponent systems from an equation of state[J].AIChE Journal,1977,23(2):137-144. DOI
13	QIAO Changhe. General purpose compositional simulation for multiphase reactive flow with a fast linear solver[D]. Pennsylvania: Pennsylvania State University, 2015.
14	BIOT M A .General theory of three-dimensional consolidation[J].Journal of Applied Physics,1941,12(2):155-164. DOI
15	BIOT M A .Theory of elasticity and consolidation for a porous anisotropic solid[J].Journal of Applied Physics,1955,26(2):182-185. DOI
16	张晨松.油藏数值模拟中的线性解法器[J].数值计算与计算机应用,2022,43(1):1-26.
17	BEHIE A , VINSOME P K W .Block iterative methods for fully implicit reservoir simulation[J].Society of Petroleum Engineers Journal,1982,22(5):658-668. DOI
18	BEHIE G A , FORSYTH P A Jr .Incomplete factorization methods for fully implicit simulation of enhanced oil recovery[J].SIAM Journal on Scientific and Statistical Computing,1984,5(3):543-561. DOI
19	CHOW E , PATEL A .Fine-grained parallel incomplete LU factorization[J].SIAM Journal on Scientific Computing,2015,37(2):C169-C193. DOI
20	BRANDT A, MCCORMICK S F, RUGE J. Algebraic multigrid (AMG) for automatic multigrid solution with application to geodetic computations[R]. Fort Collins: Institute for Computational Studies, 1983.
21	STVBEN K, CLEES T, KLIE H, et al. Algebraic multigrid methods (AMG) for the efficient solution of fully implicit formulations in reservoir simulation[C]//SPE Reservoir Simulation Symposium. Houston, Texas, U.S.A. : SPE, 2007: SPE-105832-MS.
22	VANěK P , MANDEL J , BREZINA M .Algebraic multigrid by smoothed aggregation for second and fourth order elliptic problems[J].Computing,1996,56(3):179-196. DOI
23	WALLIS J R. Incomplete gaussian elimination as a preconditioning for generalized conjugate gradient acceleration[C]//SPE Reservoir Simulation Symposium. San Francisco, California: SPE, 1983: SPE-12265-MS.
24	ROY T , JÖNSTHÖVEL T B , LEMON C , et al.A constrained pressure-temperature residual (CPTR) method for non-isothermal multiphase flow in porous media[J].SIAM Journal on Scientific Computing,2020,42(4):B1014-B1040. DOI
25	CAI Mingchao , ZHANG Guoping .Comparisons of some iterative algorithms for Biot equations[J].International Journal of Evolution Equations,2015,10(3/4):267-282.
26	ADLER J H, GASPAR F J, HU Xiaozhe, et al. Robust block preconditioners for Biot's model[C]//International Conference on Domain Decomposition Methods: Domain Decomposition Methods in Science and Engineering XXIV. Svalbard, Norway: Springer, 2018: 3-16.
27	HONG Qingguo , KRAUS J , LYMBERY M , et al.Parameter-robust convergence analysis of fixed-stress split iterative method for multiple-permeability poroelasticity systems[J].Multiscale Modeling & Simulation,2020,18(2):916-941.
28	BERGAMASCHI L , FERRONATO M , GAMBOLATI G .Mixed constraint preconditioners for the iterative solution of FE coupled consolidation equations[J].Journal of Computational Physics,2008,227(23):9885-9897. DOI
29	CHRISTIE M A , BLUNT M J .Tenth SPE comparative solution project: A comparison of upscaling techniques[J].SPE Reservoir Evaluation & Engineering,2001,4(4):308-317.
30	ODEH A S .Comparison of solutions to a three-dimensional black-oil reservoir simulation problem (includes associated paper 9741)[J].Journal of Petroleum Technology,1981,33(1):13-25. DOI
31	KILLOUGH J E, KOSSACK C A. Fifth comparative solution project: evaluation of miscible flood simulators[C]//SPE Symposium on Reservoir Simulation. San Antonio, Texas: SPE, 1987: SPE-16000-MS.
32	SAAD Y .Iterative methods for sparse linear systems[M].2nd edPhiladelphia: Society for Industrial and Applied Mathematics,2003.
33	冯春生. 油藏数值模拟中面向异构体系的多水平法及高效解法器研究[D]. 湘潭: 湘潭大学, 2014.
34	ZHAO Li , FENG Chunsheng , ZHANG Chensong , et al.Parallel multi-stage preconditioners with adaptive setup for the black oil model[J].Computers & Geosciences,2022,168,105230.
35	ZHAO Li , LI Shizhe , ZHANG Chensong , et al.An improved multistage preconditioner on GPUs for compositional reservoir simulation[J].CCF Transactions on High Performance Computing,2023,5(2):144-159. DOI
36	ReservoirTeam. OpenCAEPoro: An open-sourse multicomponent multiphase porous media flow simulator[EB/OL]. (2023-02-05)[2023-08-29]. https://github.com/OpenCAEPlus/OpenCAEPoro.
37	FaspTeam. FASP solver project[EB/OL]. (2023-07-11)[2023-08-29]. https://github.com/FaspDevTeam/faspsolver.

解法器	CPR-FGMRES(30)
线程数	1	2	4	8	16
时间步数	53	53	53	53	53
牛顿迭代次数	214	214	214	214	214
线性迭代次数	5 322	5 322	5 322	5 322	5 322
解法器时间/s	5 738.62	3 125.07	1 795.88	1 140.44	935.73
并行加速比	1.00	1.84	3.20	5.03	6.13

解法器	CPR-FGMRES(30)
线程数	1	2	4	8	16
时间步数	53	53	53	53	53
牛顿迭代次数	214	214	214	214	214
线性迭代次数	5 322	5 322	5 322	5 322	5 322
解法器时间/s	5 738.62	3 125.07	1 795.88	1 140.44	935.73
并行加速比	1.00	1.84	3.20	5.03	6.13

解法器	CPR-FGMRES(30)
线程数	1	2	4	8	16
时间步数	267	267	267	267	267
牛顿迭代次数	1 083	1 083	1 083	1 083	1 083
线性迭代次数	16 389	16 393	16 390	16 389	16 388
解法器时间/s	5 605.10	3 067.03	1 801.19	1 177.64	915.39
并行加速比	1.00	1.83	3.11	4.76	6.12

解法器	CPR-FGMRES(30)
线程数	1	2	4	8	16
时间步数	267	267	267	267	267
牛顿迭代次数	1 083	1 083	1 083	1 083	1 083
线性迭代次数	16 389	16 393	16 390	16 389	16 388
解法器时间/s	5 605.10	3 067.03	1 801.19	1 177.64	915.39
并行加速比	1.00	1.83	3.11	4.76	6.12

解法器	CPR-FGMRES(30)
线程数	1	2	4	8	16
时间步数	147	147	147	147	147
牛顿迭代次数	362	362	362	362	362
线性迭代次数	3 741	3 737	3 735	3 736	3 741
解法器时间/s	2 685.36	1519.28	931.29	637.65	512.10
并行加速比	1.00	1.77	2.88	4.21	5.24
