Novel Adaptive Preconditioner for Contact Problem in Fuel Rod

doi:10.19596/j.cnki.1001-246x.8868

Abstract

Abstract:

The contact problem between the fuel core block and the cladding is a key point in the simulation of nuclear reactor fuel rods, and the inclusion of a contact model increases the difficulty of solving the set of algebraic equations. By analyzing the sparse structure of the Jacobi matrix before and after contact, a novel adaptive preprocessing method based on the contact pressure judgment criterion is constructed. The full Jacobi matrix is used as the preprocessing matrix for the Preconditioned Jacobian-free Newton-Krylov (PJFNK) method when the contact pressure is zero, and the block diagonal of the Jacobi matrix is used as the preprocessing matrix when the contact pressure is non-zero. Numerical experiments show that the adaptive preprocessing method in this paper can effectively improve the simulation efficiency, and the total solution time is reduced by 15.2%~33.1% compared with the existing methods in Multiphysics Object-Oriented Simulation Environment(MOOSE).

Key words: MOOSE, PJFNK, fuel rod, mechanical contact, adaptive preconditioning

CLC Number:

O242.1

Weizhen LIU, Zhenhai LIU, Yong XIN, Shuyu YE, Shiquan ZHANG. Novel Adaptive Preconditioner for Contact Problem in Fuel Rod[J]. Chinese Journal of Computational Physics, 2024, 41(5): 596-606.

Figures/Tables 10

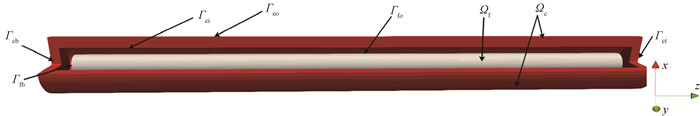

Fig.1 Solution region of fuel rod

Table 1 Material parameters of fuel rods

参数	热膨胀系数/K^-1	蠕变系数/(Pa^-n·s^-1)	应力指数	激活能/(J·mol^-1)	密度/(kg·m^-3)
燃料芯块	1.0×10^-5	4.531 3×10^-25	4	552 334	10 431.0
包壳	1.0×10^-6	9.032 0×10^-33	4	270 000	6 551.0

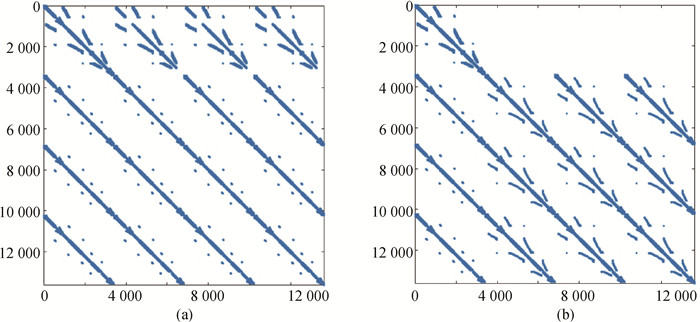

Fig.2 Sparse structure of Jacobian matrix (a) before contact; (b) after contact

Table 2 Specifications of fuel rods

参数	数值	参数	数值
燃料芯块半径/mm	2.78	包壳内径/mm	2.801
包壳外径/mm	3.27	燃料芯块高度/cm	10
包壳高度/cm	11	单侧气腔高度/mm	3
冷却剂温度/K	576	换热系数/(W·(m²·K)^-1)	7 500

Fig.3 Grid profile of fuel rods (Scaling: height compression by 2 times, radius by 3 times.)

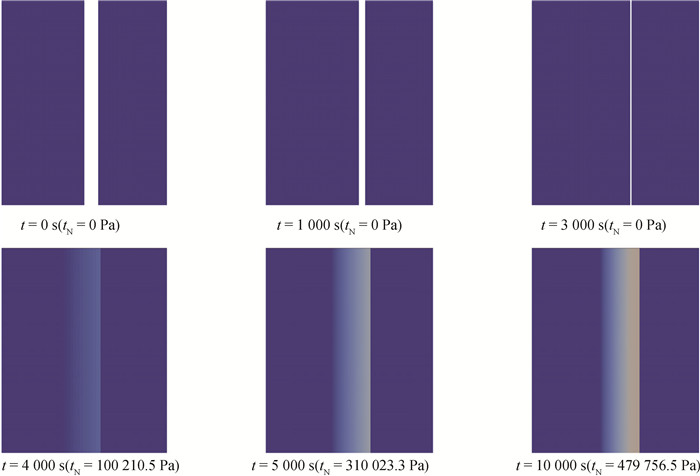

Fig.4 Gap variation and contact pressure at different time steps

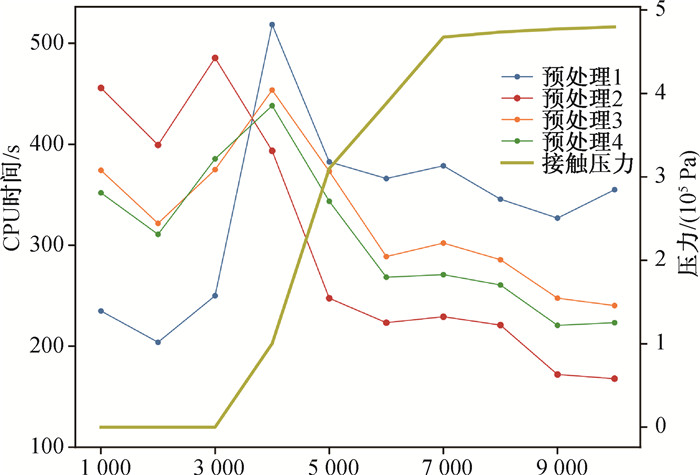

Fig.5 The time taken by the individual preprocessing matrix in each time step

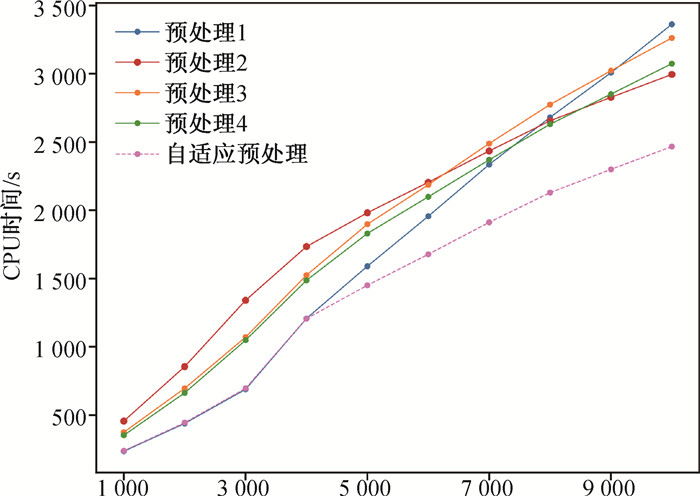

Fig.6 Cumulative CPU times for different preprocessing matrices

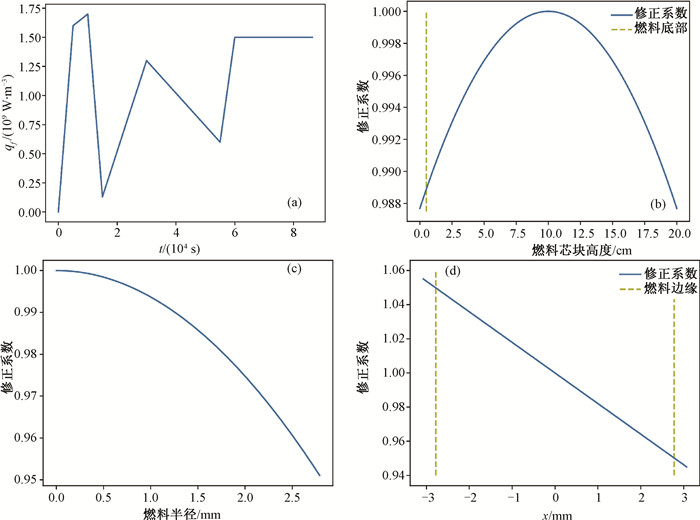

Fig.7 Heat source and correction factor (a) heat source over time; (b) correction factor for heat source along axial direction; (c) correction factor for heat source along radius; (d) correction factor for heat source along x-axis

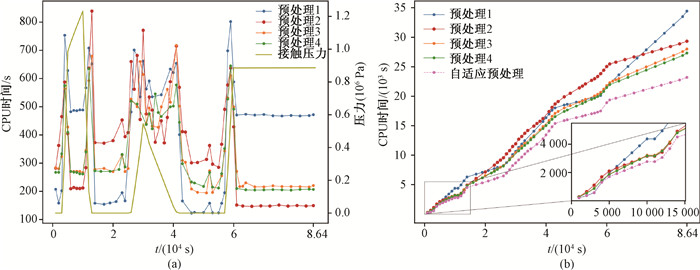

Fig.8 Solution results for different preprocessing matrices with simulation time of one day (a) time spent and contact pressure for different time steps; (b) cumulative CPU time spent
