A VOF-LPT Coupling Method for Simulating Jet Atomization

doi:10.19596/j.cnki.1001-246x.8460

Abstract

Abstract:

We evaluate several VOF(Volume of Fluid) methods for interfacial reconstruction. A VOF-LPT(Lagrangian Particle Tracking) coupling method is applied in OpenFOAM, an open source CFD package, to achieve both simulation accuracy and computational efficiency. This method simulates accurately from continuous liquid to discrete small droplets for jet atomization. It provides a feasible and efficient simulation scheme for simulation of jet atomization process on large scales.

Key words: jet atomization, volume of fluid, multiphase flow, Lagrangian particle tracking

Zi-feng LI, Ning YANG. A VOF-LPT Coupling Method for Simulating Jet Atomization[J]. Chinese Journal of Computational Physics, 2022, 39(4): 440-452.

Figures/Tables 16

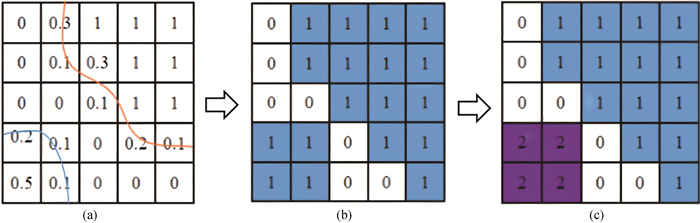

Fig.1 3D coupling algorithm (phase field threshold αt = 0.1, computing time t = ti) (a) initial phase field; (b) labeling liquid grid; (c) droplet identification and numbering

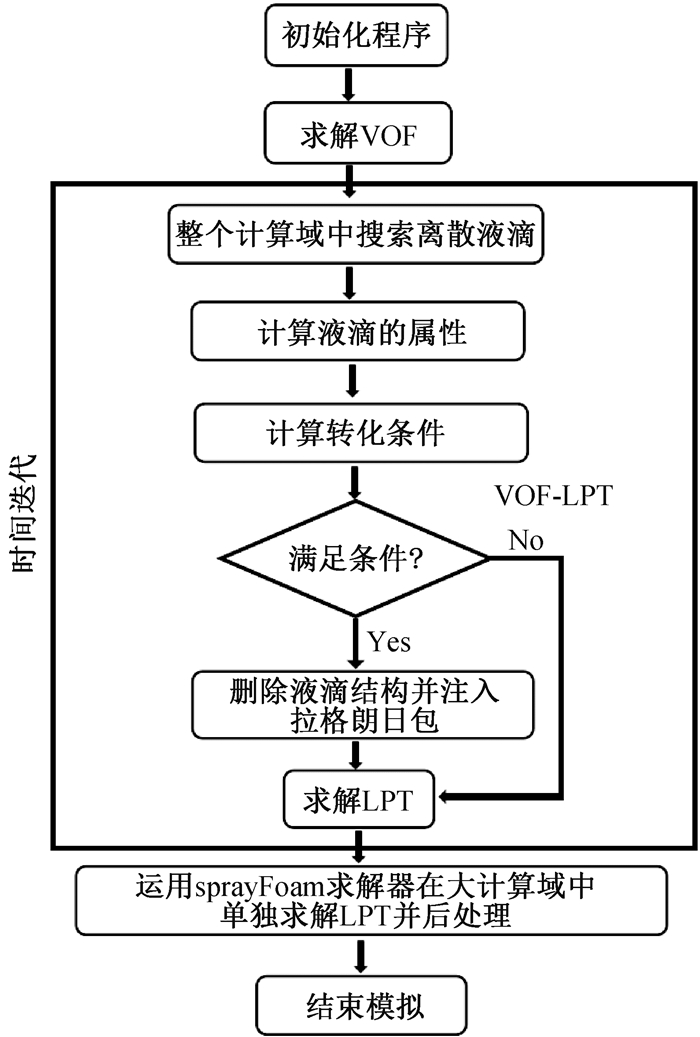

Fig.2 Algorithm logic diagram of VOF-LPT

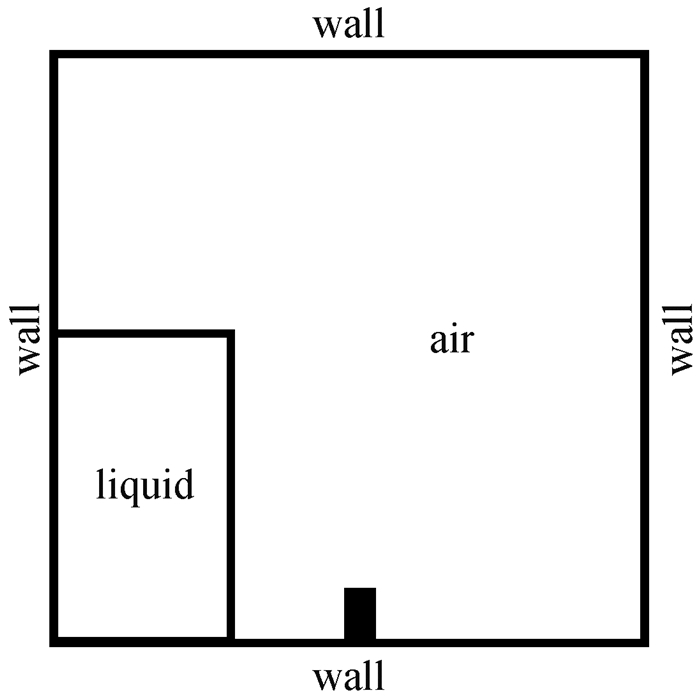

Fig.3 Initial condition of dambreak simulation

Table 1 CPU time (in unit: s) of interface reconstruction methods (with 6 cores) at different mesh resolution

	粗网格(9070 Cells)	中等网格(36288 Cells)	细网格(145152 Cells)
MULES	20.2	483.2	5 032
Isoadvector	68.3	397.7	5 373
PLIC-RD	43.6	400.2	4 202

Fig.4 Dambreak simulation with different interface reconstruction method (a) medium grid; (b) fine grid

Fig.5 Phase field conservation error parameters in different interface capture methods

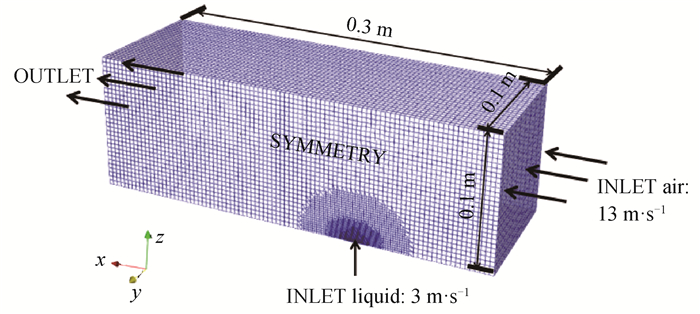

Fig.6 Mesh and boundary conditions in jet atomization simulation

Table 2 Computation time for 0.03 s physical time in jet atomization simulation (with 10 cores)

界面重构方法	计算时间/s
MULES	52 667
Isoadvector	39 326
PLIC-RDF	48 539

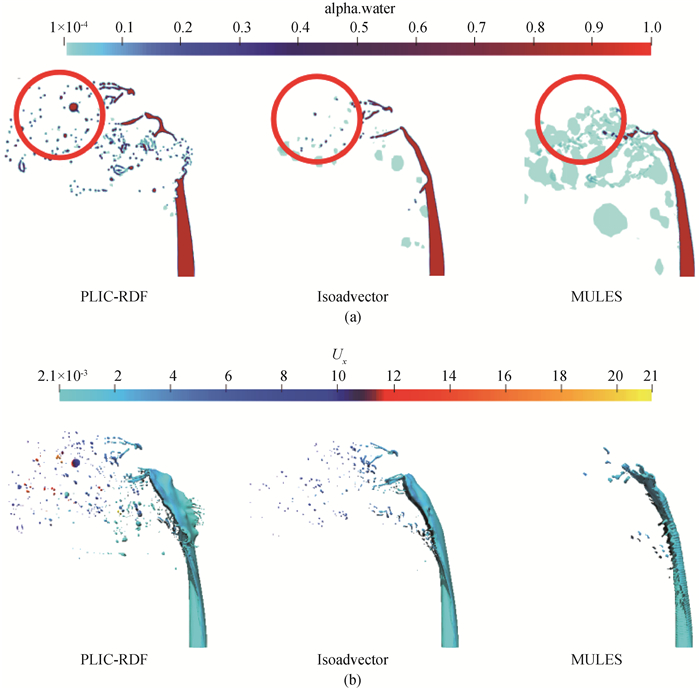

Fig.7 Jet atomization simulation with different interfacial reconstruction methods (a) phase field ɑ; (b) contours of ɑ = 0.5 colored by velocity Ux

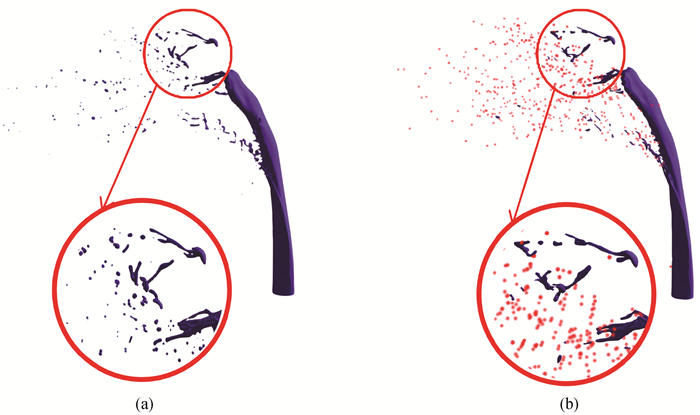

Fig.8 Discrete droplets satisfying transformation threshold (a) VOF results before transformation; (b) droplet distribution after transformation

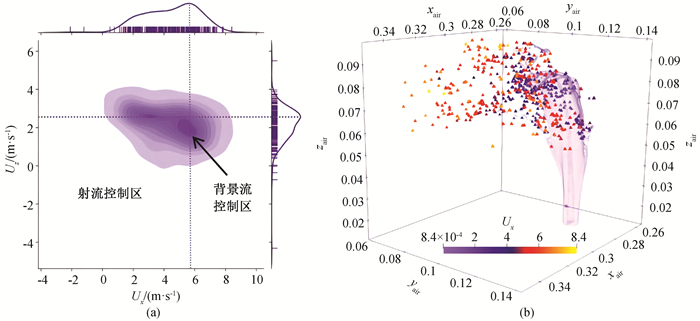

Fig.9 (a) Number density distribution in (Ux, Uz) plane; (b) Ux velocity distribution of discrete droplets

Fig.10 Initial conditions for the simulation of impact jet flow (D = 635 m, Uj=18.5 m ·s-1, 2α = 60°, We = 2 987, Re = 11 724)

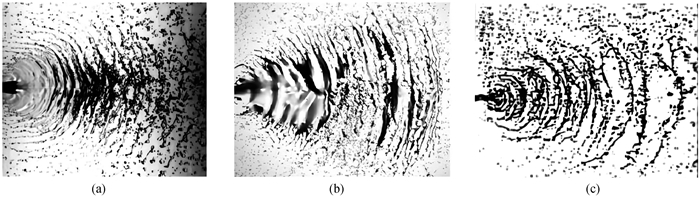

Fig.11 VOF-LPT simulation of impact jet flow (a) pure VOF of Chen et al; (b) VOF-LPT in this work; (c) experiment of Ryan et al

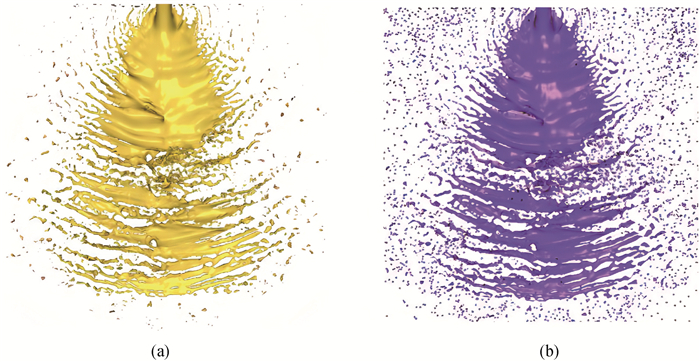

Fig.12 Liquid structure before or after the identification and capture of discrete droplets (a) VOF; (b) VOF-LPT

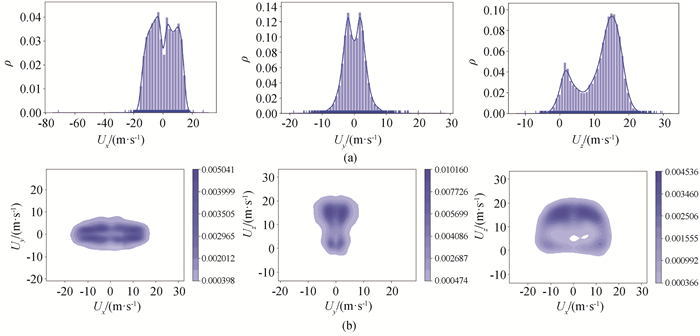

Fig.13 (a) Droplet probability density distributions of discrete droplet velocity components; (b) Joint density distributions of pairwise combination of velocities of discrete droplets

Fig.14 Scale-dependent coupling of VOF, VOF-LPT and LPT simulation for jet atomization
