Node-wise Non-structural Expansion Model for Flexible Matching of Public Utilities

doi:10.19596/j.cnki.1001-246x.8511

Abstract

Abstract:

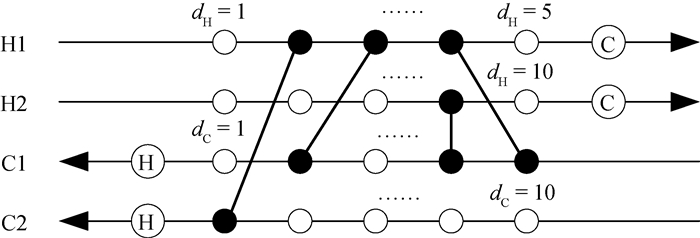

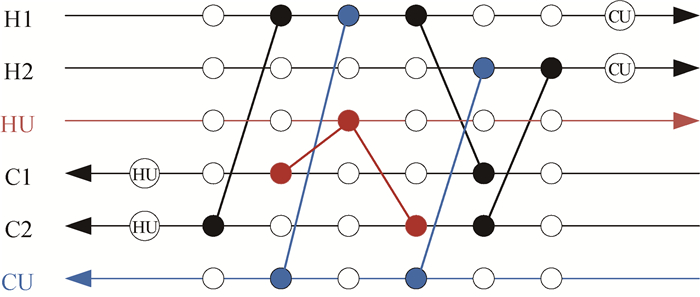

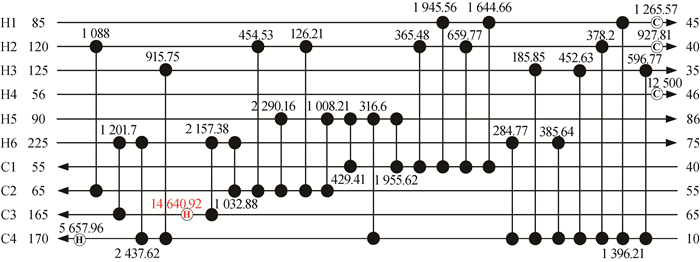

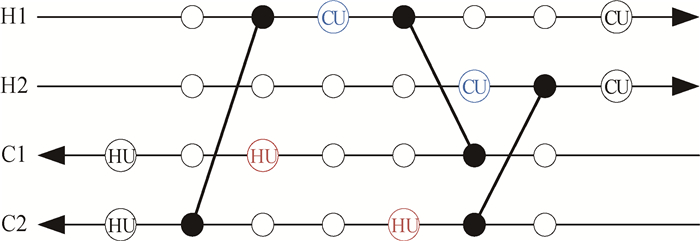

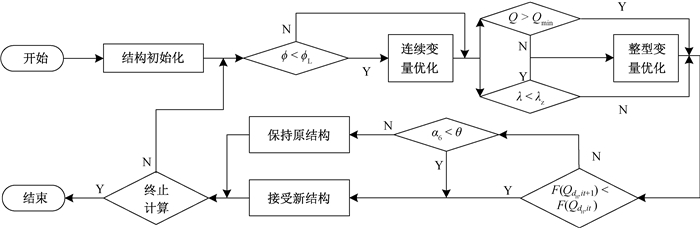

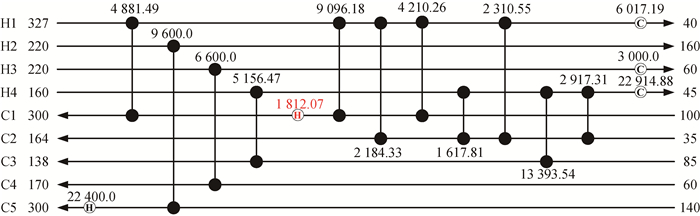

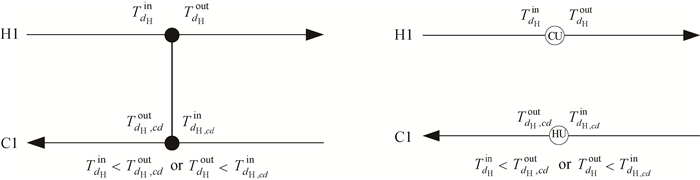

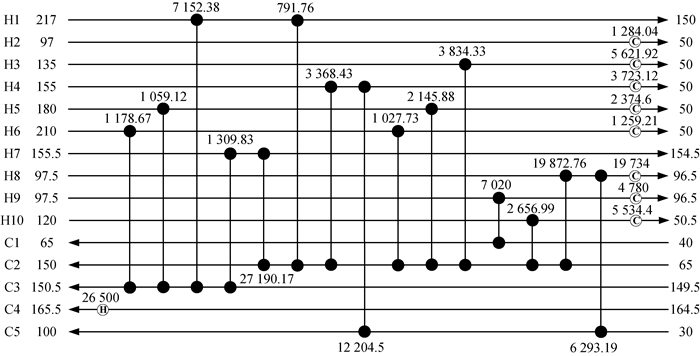

An extended node unstructured model is established, and an additional cold and hot stream is set up to match with the conventional hot and cold stream to determine the generation of cold and hot internal utilities, so as to realize independent matching of utilities at any position on the cold and hot flow unit and improve the degree of freedom of the model. A forced evolution random walk algorithm was introduced to optimize three practical engineering examples 9SP, 10SP and 15SP, which saved 5 600＄·a^-1, 848＄·a^-1 and 4 455＄·a^-1, respectively, compared with the optimal literature. It shows that application of the extended model obtains more economical heat exchange network designs, and has a stronger universality as well.

Key words: node-wise non-structural model, heat exchange network optimization, internal utilities, optimization

Xinyu HAN, Huanhuan DUAN, Guomin CUI, Yuan XIAO, Qiguo YANG, Guanhua ZHANG. Node-wise Non-structural Expansion Model for Flexible Matching of Public Utilities[J]. Chinese Journal of Computational Physics, 2022, 39(6): 707-716.

Figures/Tables 13

References 21

1	夏涛, 贾涛, 程杰. 群智优化算法同步综合换热网络[J]. 北京化工大学学报(自然科学版), 2009, 36 (1): 97- 101.
2	张飞龙, 申玲, 卢小平, 等. 基于热容流率的换热网络夹点设计法[J]. 现代化工, 2012, 32 (5): 111- 113.
3	YEE T F , GROSSMANN I E , KRAVANJA Z . Simultaneous optimization models for heat integration-Ⅲ. Process and heat exchanger network optimization[J]. Computers & Chemical Engineering, 1990, 14 (11): 1185- 1200.
4	PARIYANI A , GUPTA A , GHOSH P . Design of heat exchanger networks using randomized algorithm[J]. Computers & Chemical Engineering, 2006, 30 (6/7): 1046- 1053.
5	彭富裕, 崔国民, 陈上, 等. 基于改进的SWS模型的换热网络优化研究[J]. 工程热物理学报, 2016, 37 (9): 1973- 1983.
6	PAVÃO L V , COSTA C B B , RAVAGNANI M A S S . An enhanced stage-wise superstructure for heat exchanger networks synthesis with new options for heaters and coolers placement[J]. Industrial & Engineering Chemistry Research, 2018, 57 (7): 2560- 2573.
7	陆贞, 崔国民, 张勤, 等. 棋盘模型在换热网络优化中的应用[J]. 化学工程, 2007, 35 (6): 16- 19.
8	XIAO Y , KAYANGE H A , CUI G . Heat integration of energy system using an integrated node-wise non-structural model with uniform distribution strategy[J]. International Journal of Heat and Mass Transfer, 2020, 152 (5): 119497.
9	JIANG Y W , CUI G M , BAO Z K , et al. A heat exchange network optimization strategy for internal utility evolution[J]. Chinese Journal of Computational Physics, 2020, 37 (3): 341- 351.
10	肖媛, 崔国民, 李帅龙. 一种新的用于换热网络全局优化的强制进化随机游走算法[J]. 化工学报, 2016, 67 (12): 5140- 5147.
11	CHRISTOPHER B , GEORG F , LUO X . Efficient synthesis of heat exchanger networks combining heuristic approaches with a genetic algorithm[J]. Heat Mass Transfer, 2011, 47 (8): 1019- 1026.
12	张红亮, 崔国民, 朱玉双. 特殊换热网络算例优化与分析[J]. 化工进展, 2018, 37 (5): 1692- 1701.
13	XU Y , CUI G M , DENG W D , et al. Relaxation strategy for heat exchanger network synthesis with fixed capital cost[J]. Applied Thermal Engineering, 2019, 152, 184- 195.
14	HUO Z , ZHAO L , YIN H . Simultaneous synthesis of structural-constrained heat exchanger networks with and without stream splits[J]. Canadian Journal of Chemical Engineering, 2013, 91 (5): 830- 842.
15	YERRAMSETTY K M , MURTY C V S . Synthesis of cost-optimal heat exchanger networks using differential evolution[J]. Computers and Chemical Engineering, 2008, 32 (8): 1861- 1876.
16	ZHANG C W , CUI G M , CHEN S . An improved chaotic ant colony algorithm for synchronized synthesis of heat exchange networks[J]. Chinese Journal of Computational Physics, 2017, 34 (2): 193- 204.
17	XIAO Y , CUI G M . A novel random walk algorithm with compulsive evolution for heat exchanger network synthesis[J]. Applied Thermal Engineering, 2017, 115 (3): 1118- 1127.
18	LI J , CUI G M , CHEN J X , et al. Synchronized integrated heat exchange network with forced evolutionary random walk algorithm using three-layer protection strategy[J]. Chinese Journal of Computational Physics, 2019, 36 (1): 69- 79.
19	TRIVEDIK K , O'NEILL B K , ROACH J R , et al. A new dual-temperature design method for the synthesis of heat exchanger networks[J]. Computers & Chemical Engineering, 1989, 13 (6): 667- 685.
20	ZHANG D T , CUI G M , LI W Z , et al. Improved RWCE algorithm with integer/continuous variable separation optimization strategy to protect efficient structures[J]. Chinese Journal of Computational Physics, 2021, 38 (1): 89- 98.
21	JIN Y , CUI G M , CAO M , et al. Combination of periodic advantageous structure refinement and search path enhancement to improve the evolution capability of heat exchange network structure[J]. Chinese Journal of Computational Physics, 2020, 37 (6): 725- 733.

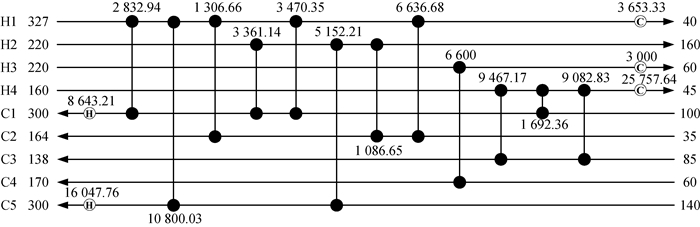

	Hot utility/kW	Cold utility/kW	Units	Total area/m²	TAC/(＄·a^-1)	Reduce/%
Ref.[11]	23 900	31 620	14	18 132	2 920 933	0.3
Ref.[14]	23 880	31 600	11	18 449	2 935 831	0.81
Ref.[12]	24 135	31 855	15	17 844	2 918 341	0.21
Ref.[13]	24 396	30 120	15	17 760	2 917 682	0.19
本文	24 207	31 927	16	17 658	2 912 082

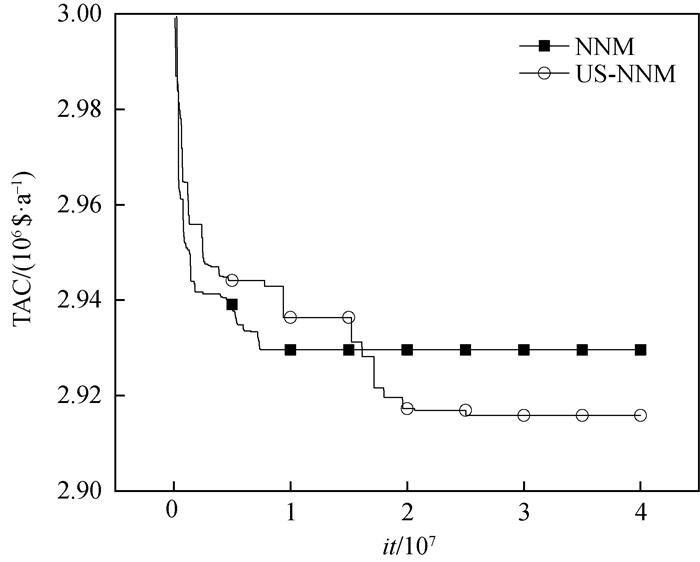

	Hot utility/kW	Cold utility/kW	Units	Total area/m²	TAC/(＄·a^-1)	Reduce/%
Ref.[11]	23 900	31 620	14	18 132	2 920 933	0.3
Ref.[14]	23 880	31 600	11	18 449	2 935 831	0.81
Ref.[12]	24 135	31 855	15	17 844	2 918 341	0.21
Ref.[13]	24 396	30 120	15	17 760	2 917 682	0.19
本文	24 207	31 927	16	17 658	2 912 082

	Hot utility/kW	Cold utility/kW	Units	Total area/m²	TAC/(＄·a^-1)	Reduce/%
Ref.[12]	20 389	14 784	19	55 449	5 587 625	0.038
Ref.[5]	20 342	14 736.5	21	55 620	5 592 478	0.124
Ref.[16]	20 403	14 797	21	55 741	5 606 692	0.378
Ref.[17]	20 371	14 764	22	55 516	5 589 493	0.071
Ref.[18]	20 472	14 865	21	55 270	5 586 365	0.015
本文	20 299	14 693	29	55 587	5 585 517

	Hot utility/kW	Cold utility/kW	Units	Total area/m²	TAC/(＄·a^-1)	Reduce/%
Ref.[12]	20 389	14 784	19	55 449	5 587 625	0.038
Ref.[5]	20 342	14 736.5	21	55 620	5 592 478	0.124
Ref.[16]	20 403	14 797	21	55 741	5 606 692	0.378
Ref.[17]	20 371	14 764	22	55 516	5 589 493	0.071
Ref.[18]	20 472	14 865	21	55 270	5 586 365	0.015
本文	20 299	14 693	29	55 587	5 585 517

	Hot utility/kW	Cold utility/kW	Units	Total area/m²	TAC/(＄·a^-1)	Reduce/%
Ref.[19]	43 280	61 150	29	14 069	5 613 283	8.92
Ref.[20]	28 134	46 005	24	22 622	5 219 119	2.05
Ref.[21]	26 500	44 311	25	24 128	5 116 806	0.09
本文	26 500	44 311.5	24	24 280	5 112 351
