Morphological Evolution and Growth Kinetics in Primary Crystallization of Amorphous: Phase Field Method

doi:10.19596/j.cnki.1001-246x.8461

Abstract

Abstract:

Influence of diffusion coefficient on crystallization process is considered in a crystallization physical model. A phase field method is employed to study influence of random nucleation rates and nucleation radii on microstructure and growth kinetics in primary crystallization process. It shows that the number of grain crystal of primary crystallization increases with the increase of initial nucleation rate, and the crystal size of primary crystallization decreases with the increase of initial nucleation rate. The crystallization fraction increases with evolution time and initial nucleation rate. The greater the initial nucleation rate, the higher the crystallization fraction. With different initial nucleation radii, the quantity and size of grains in the primary crystallization process remains basically unchanged with the increase of evolutionary time. The crystallization fraction increases with the increase of evolutionary time. The growth index corresponding to different initial nucleation rates and initial nucleation radii is less than 1, which means random nucleation rate and random nucleation radius have no significant effect on the crystallization mode. The crystallization modes are primary crystallization. Control of random nucleation rate and initial nucleation radius changes effectively microstructure of the primary crystallization. The grain size and crystallization fraction affect properties of the alloy directly.

Key words: primary crystallization, phase field method, growth kinetics, initial nucleation rate, initial nucleation radius

Jin WANG, Wen-jing MA, Yu-zhou LIU, Mei-ni LÜ, Kai-jing ZHANG. Morphological Evolution and Growth Kinetics in Primary Crystallization of Amorphous: Phase Field Method[J]. Chinese Journal of Computational Physics, 2022, 39(4): 403-410.

Figures/Tables 9

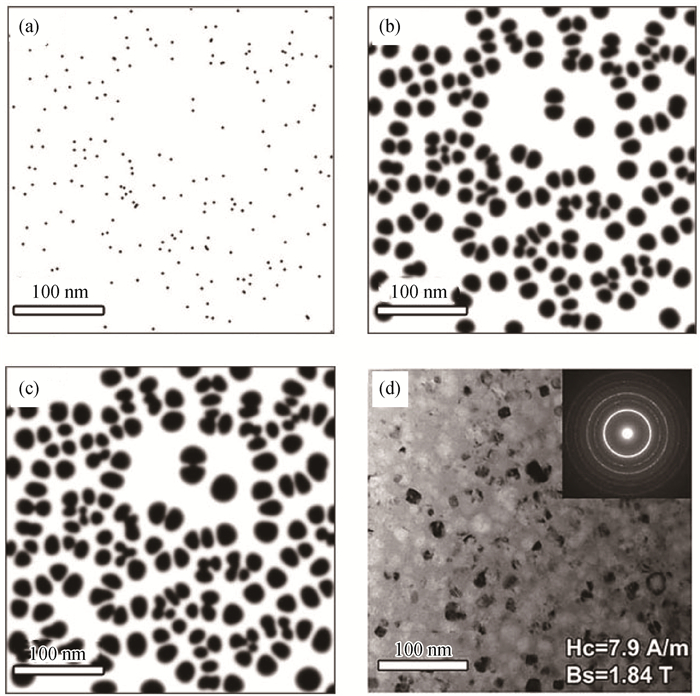

Fig.1 (a), (b), (c) Primary crystallization simulation results and (d) TEM image of crystallized Fe83.7B14.8Cu1.5 alloy[25]

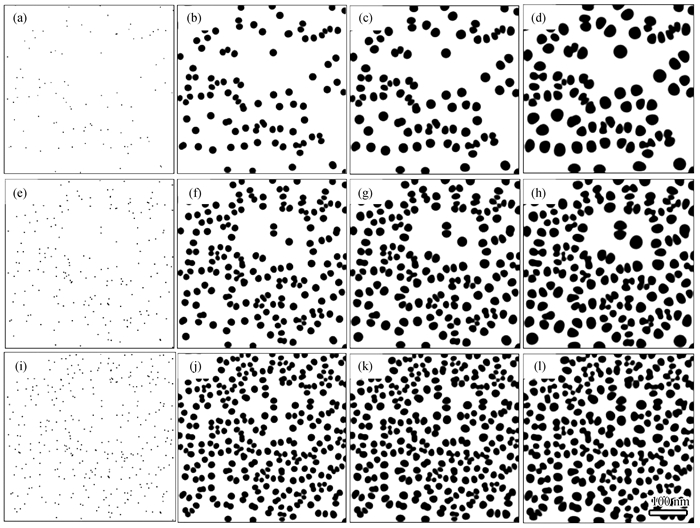

Fig.2 Morphological evolution of primary crystallization of amorphous under different initial nucleation rates (a)~(d) 0.34%, (e)~(h) 0.98%, (i)~(l)1.63% at time steps (a), (e), (i) t = 0;(b), (f), (j) t = 0.4 × 104; (c), (g), (k) t = 0.6 × 104; (d), (h), (t) t = 1.0 × 104

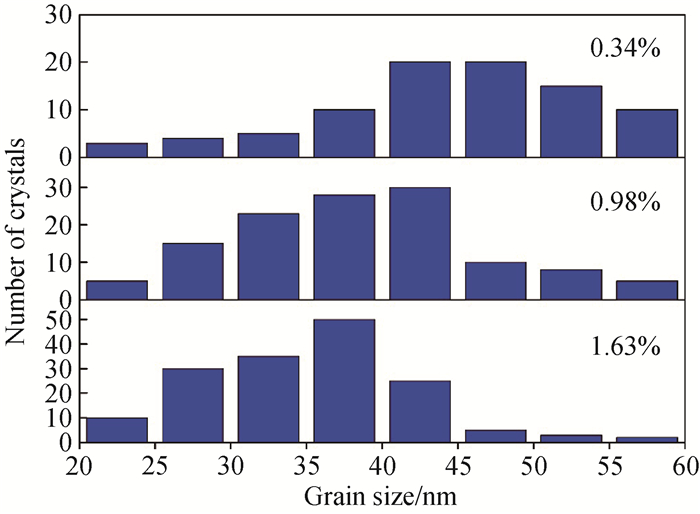

Fig.3 Number of crystals vs grain size under different initial nucleation rates

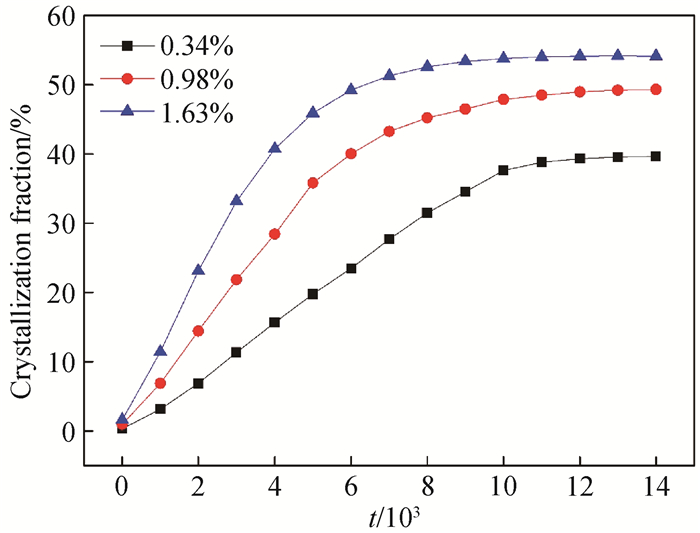

Fig.4 Crystallization fraction of primary crystallization as functions of simulation time

Table 1 Exponential fittings of crystallization fraction evolution of primary crystallization with different initial nucleation rates

random nucleation rate/%	k	n
0.34	0.028 78	0.764 01
0.98	0.322 24	0.536 81
1.63	1.516 23	0.385 78

Fig.5 Morphological evolution of primary crystallization of amorphous under different initial nucleation radii (a)~(d) 2 nm, (e)~(h) 5 nm, (i)~(l)10 nm; at time steps (a), (e), (i) t = 0; (b), (f), (j) t = 0.4 × 104; (c), (g), (k) t = 0.6 × 104; (d), (h), (l) t = 1.0 × 104

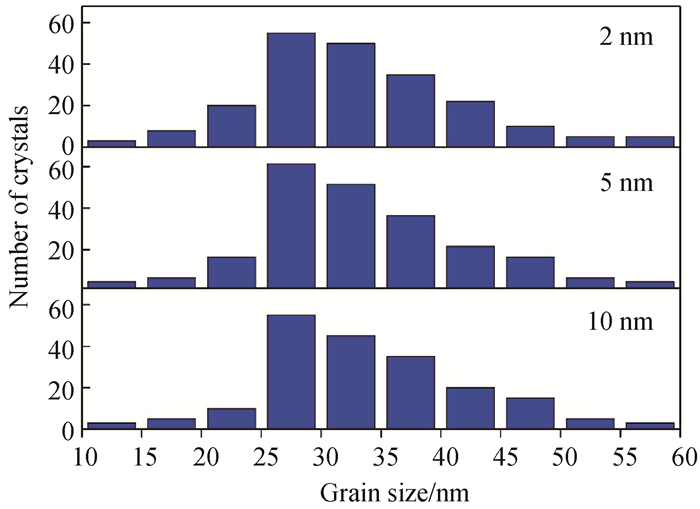

Fig.6 Number of crystals vs grain size under different initial nucleation radii

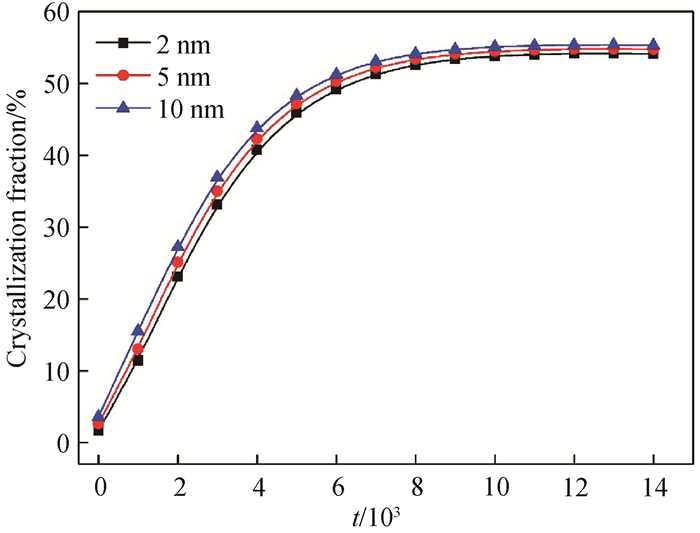

Fig.7 Crystallization fraction of primary crystallization as functions of simulation time

Table 2 Exponential fittings of volume fraction evolution of primary crystallization of amorphous under different initial nucleation radii

initial nucleation radii/nm	k	n
2	1.516 23	0.385 78
5	1.902 32	0.362 77
10	2.476 83	0.335 65
