Several Kinds of Soliton Solution of Nonlinear Schrödinger Equation: Local Discontinuous Petrov-Galerkin Method

doi:10.19596/j.cnki.1001-246x.8515

Abstract

Abstract:

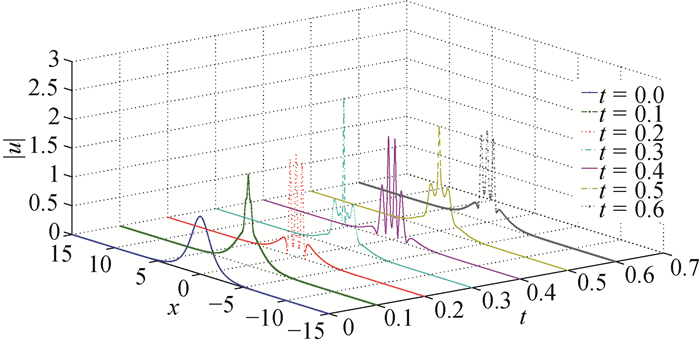

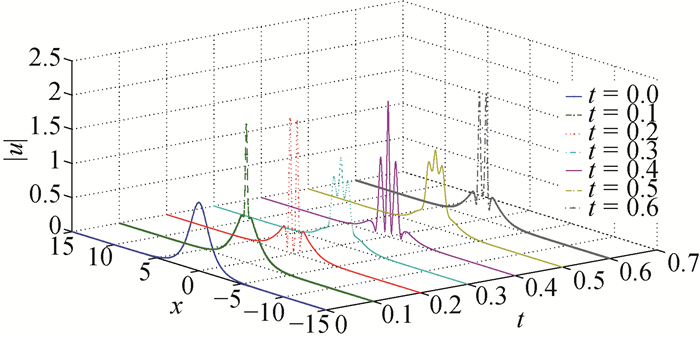

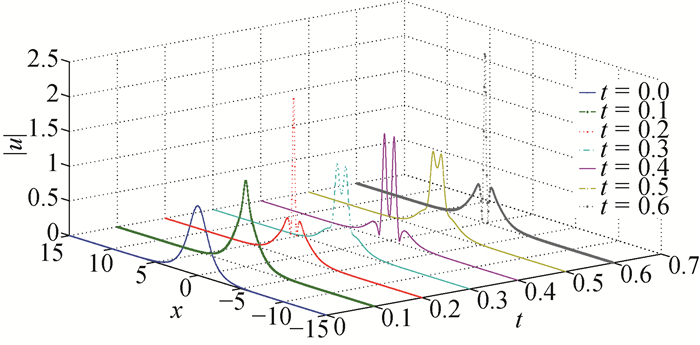

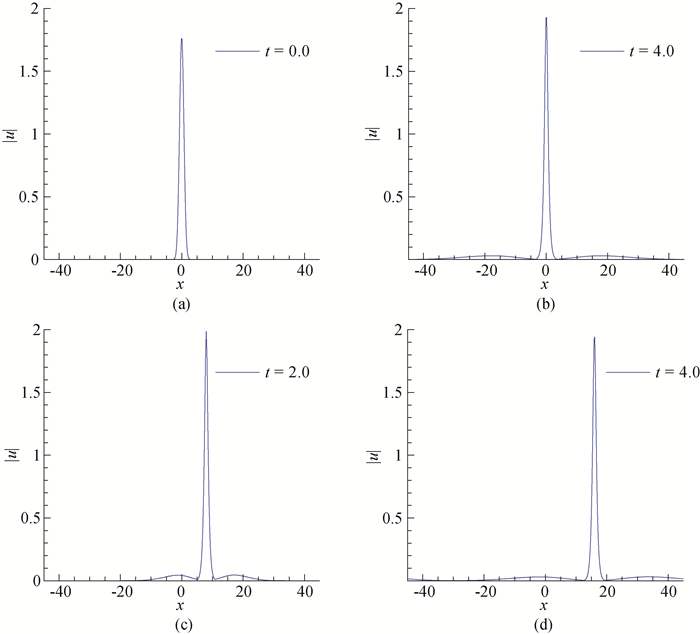

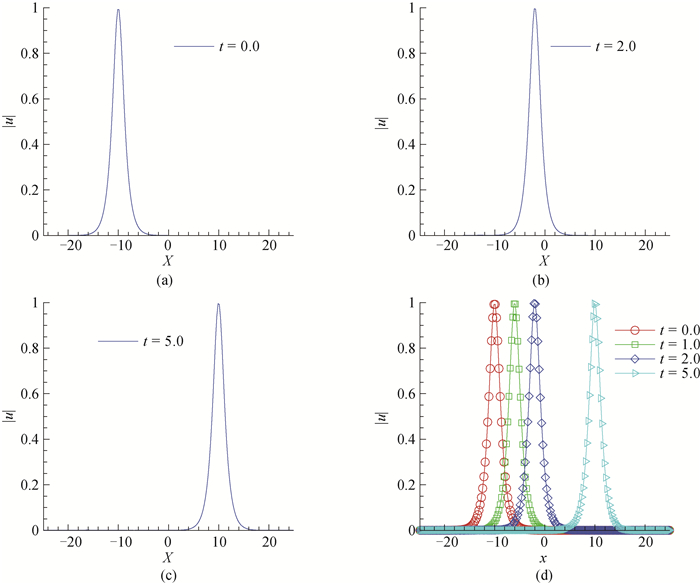

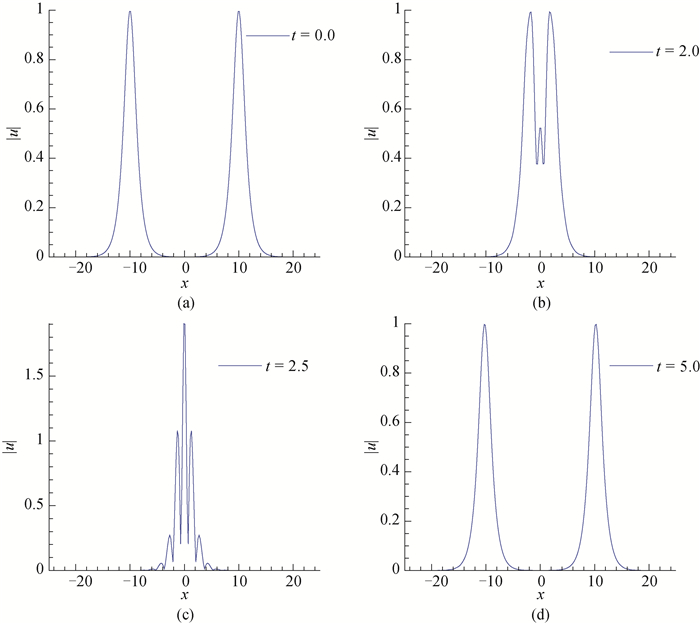

A local discontinuous Petrov-Galerkin method is developed for nonlinear Schrödingerequations. Several kinds of solitons are simulated and related phenomena are discussed, such as the soliton propagation and collision, birth of solitons including standing soliton and mobile soliton, the bound state of N solitons. The algorithm simulates some narrow structures in soliton related phenomenon. Numerical examples show that the algorithm has high accuracy and can reach the optimal convergence order. Compared with local discontinuous Galerkin method, the local discontinuous Petrov-Galerkin method has high computational efficiency and simple computational formula.

Key words: local discontinuous Petrov-Galerkin method, nonlinear Schrödinger equation, soliton, bound state of N solitons

Guozhong ZHAO, Xijun YU, Ziming DONG, Hongping GUO, Pengyun GUO, Shumin LI. Several Kinds of Soliton Solution of Nonlinear Schrödinger Equation: Local Discontinuous Petrov-Galerkin Method[J]. Chinese Journal of Computational Physics, 2022, 39(6): 641-650.

Figures/Tables 13

References 21

1	ZHANG F Y , AN X L . A conservative finite difference scheme for nonlinear Schrödinger equation involving quintic terms[J]. Math Numer Sinica, 2022, 44 (1): 63- 70.
2	WANG J , HUANG Y Q . Fully discrete Galerkin finite element method for the cubic nonlinear Schrödinger equation[J]. Numer Math Theor Meth Appl, 2017, 10 (3): 670- 687.
3	ZHAO Y M , SHI D Y , WANG F L . High accuracy analysis of a new mixed finite element method for nonlinear Schrödinger equation[J]. Math Numer Sinica, 2015, 37 (2): 162- 177.
4	HU H . Two-grid method for two-dimensional nonlinear Schrödinger equation by finite element method[J]. Numer Meth Part D E, 2018, 34 (2): 385- 400. DOI
5	XU Y , SHU C W . Local discontinous Galerkin methods for nonlinear Schrödinger equations[J]. J Comput Phys, 2005, 205, 72- 97. DOI
6	DONG B , SHU C W , WANG W . A new multiscale discontinuous Galerkin method for the one-dimensional stationary Schrödinger equation[J]. J Comput Phys, 2016, 66, 321- 345.
7	CASTILLO P , GOMEZ S . Conservative super-convergent and hybrid discontinuous Galerkin methods applied to nonlinear Schrödinger equations[J]. Appl Math Comput, 2020, 371, 124950.
8	LU W , HUANG Y , LIU H L . Mass preserving discontinuous Galerkin methods for Schrödinger equations[J]. J Comput Phys, 2015, 282, 210- 226. DOI
9	ZHANG R P , YU X J , LI M J , et al. A conservative local discontinuous Galerkin method for the solution of nonlinear Schrödinger equation in two dimensions[J]. Sci China Math, 2017, 60, 2515- 2530. DOI
10	BAO W Z , CAI Y Y . Uniform error estimates of finite difference methods for the nonlinear Schrödinger equation with wave operator[J]. SIAM J Numer Anal, 2012, 50 (2): 492- 521. DOI
11	REED W H, HILL T R. Triangular mesh methods for the neutron transport equation[R]. Los Alamos Scientific Laboratory Report LA-UR-73-479, 1973.
12	COCKBURN B , SHU C W . The Runge-Kutta local projection P1-discontinuous Galerkin finite element method for scalar conservation laws[J]. Math Model Numer Anal (M2AN), 1991, 25 (3): 337- 361. DOI
13	COCKBURN B , SHU C W . The local discontinuous Galerkin methods for time dependent convection-diffusion equation[J]. SIAM J Numer Anal, 1998, 35, 2440- 2463. DOI
14	CHEN D W , YU X J . RKCVDFEM for one-dimensional hyperbolic conservation laws[J]. Chinese J Comput Phys, 2009, 26 (4): 501- 509.
15	CHEN D W , YU X J , CHEN Z X . The Runge-Kutta control volume discontinuous finite element method for systems of hyperbolic conservation laws[J]. Int J Numer Meth Fluids, 2011, 67, 711- 786.
16	ZHAO G Z , YU X J , GUO P Y . Discontinuous Petrov-Galerkin method for one-dimensional compressible Euler equations in Lagrangian coordinates[J]. Chinese Phys B, 2013, 22 (5): 050206. DOI
17	ZHAO G Z , YU X J . The high order control volume discontinuous Petrov-Galerkin finite element method for the hyperbolic conservation laws based on Lax-Wendroff time discretization[J]. Appl Math Comput, 2015, 252, 175- 188.
18	ZHAO G Z , YU X J , GUO H M . Lax-Wendroff Control volume method for solving the compressible Euler equations based on different numerical fluxes[J]. Mathematic Applicata, 2017, 30 (4): 737- 749.
19	ZHAO G Z , YU X J , GUO H M . A discontinuous Petrov-Galerkin method for two-dimensional compressible gas dynamic equations in Lagrangian coordinates[J]. Chinese J Comput Phys, 2017, 34 (3): 294- 308.
20	ZHAO G Z , YU X J , GUO H P , et al. A local discontinuous Petrov-Galerkin method for partial differential equations with high order derivatives[J]. Chinese J Comput Phys, 2019, 36 (5): 517- 532.
21	SHU C W . Total-variation-diminishing time discretizations[J]. SIAM J Sci Stat Comput, 1998, 9, 1073- 1084.

p^k	grid	‖e_u‖_L¹	Order	‖e_u‖_L²	Order	‖e_u‖_L^∞	Order
p₁	20	6.358 7×10^-2		2.843 0×10^-2		1.411 7×10^-2
	40	1.594 3×10^-2	1.995 8	7.121 3×10^-3	1.997 2	3.633 0×10^-3	1.958 2
	80	3.999 5×10^-3	1.995 0	1.785 3×10^-3	1.995 9	9.215 8×10^-4	1.979 0
	160	1.002 1×10^-3	1.996 8	4.471 8×10^-4	1.997 3	2.320 7×10^-4	1.989 5
p₂	20	7.591 4×10^-4		4.373 1×10^-4		2.204 2×10^-4
	40	9.387 9×10^-5	3.015 5	5.404 4×10^-5	3.016 5	2.734 7×10^-5	3.010 8
	80	1.156 0×10^-5	3.021 7	6.666 6×10^-6	3.019 1	3.367 5×10^-6	3.021 6
	160	1.444 0×10^-6	3.001 0	8.328 3×10^-7	3.000 9	4.206 3×10^-7	3.001 1

p^k	grid	‖e_u‖_L¹	Order	‖e_u‖_L²	Order	‖e_u‖_L^∞	Order
p₁	20	6.358 7×10^-2		2.843 0×10^-2		1.411 7×10^-2
	40	1.594 3×10^-2	1.995 8	7.121 3×10^-3	1.997 2	3.633 0×10^-3	1.958 2
	80	3.999 5×10^-3	1.995 0	1.785 3×10^-3	1.995 9	9.215 8×10^-4	1.979 0
	160	1.002 1×10^-3	1.996 8	4.471 8×10^-4	1.997 3	2.320 7×10^-4	1.989 5
p₂	20	7.591 4×10^-4		4.373 1×10^-4		2.204 2×10^-4
	40	9.387 9×10^-5	3.015 5	5.404 4×10^-5	3.016 5	2.734 7×10^-5	3.010 8
	80	1.156 0×10^-5	3.021 7	6.666 6×10^-6	3.019 1	3.367 5×10^-6	3.021 6
	160	1.444 0×10^-6	3.001 0	8.328 3×10^-7	3.000 9	4.206 3×10^-7	3.001 1

p^k	grid	‖e_u‖_L¹	Order	‖e_u‖_L²	Order	‖e_u‖_L^∞	Order
p₁	20	5.048 0×10^-2		2.272 2×10^-2		1.114 2×10^-2
	40	1.406 9×10^-2	1.843 2	6.296 4×10^-3	1.851 5	3.182 4×10^-3	1.807 8
	80	3.750 0×10^-3	1.907 6	1.675 3×10^-3	1.910 1	8.612 9×10^-4	1.885 6
	160	9.699 0×10^-4	1.950 9	4.329 7×10^-4	1.952 1	2.243 2×10^-4	1.940 9
p₂	20	8.871 8×10^-4		4.526 9×10^-4		2.763 0×10^-4
	40	1.002 9×10^-4	3.145 1	5.405 3×10^-5	3.066 1	3.017 3×10^-5	3.194 9
	80	1.207 7×10^-5	3.053 9	6.722 1×10^-6	3.007 4	3.580 9×10^-6	3.074 8
	160	1.475 8×10^-6	3.032 6	8.358 5×10^-7	3.007 6	4.338 9×10^-7	3.045 0

p^k	grid	‖e_u‖_L¹	Order	‖e_u‖_L²	Order	‖e_u‖_L^∞	Order
p₁	20	5.048 0×10^-2		2.272 2×10^-2		1.114 2×10^-2
	40	1.406 9×10^-2	1.843 2	6.296 4×10^-3	1.851 5	3.182 4×10^-3	1.807 8
	80	3.750 0×10^-3	1.907 6	1.675 3×10^-3	1.910 1	8.612 9×10^-4	1.885 6
	160	9.699 0×10^-4	1.950 9	4.329 7×10^-4	1.952 1	2.243 2×10^-4	1.940 9
p₂	20	8.871 8×10^-4		4.526 9×10^-4		2.763 0×10^-4
	40	1.002 9×10^-4	3.145 1	5.405 3×10^-5	3.066 1	3.017 3×10^-5	3.194 9
	80	1.207 7×10^-5	3.053 9	6.722 1×10^-6	3.007 4	3.580 9×10^-6	3.074 8
	160	1.475 8×10^-6	3.032 6	8.358 5×10^-7	3.007 6	4.338 9×10^-7	3.045 0

p^k	grid	‖e_u‖_L²-LDPG	‖e_u‖_L²-LDG	‖e_u‖_L^∞-LDPG	‖e_u‖_L^∞-LDG
p₁	20	2.84×10^-2	6.26×10^-3	1.41×10^-2	2.36×10^-2
	40	7.12×10^-3	1.59×10^-3	3.63×10^-3	6.21×10^-3
	80	1.79×10^-3	3.90×10^-4	9.22×10^-4	1.49×10^-3
	160	4.47×10^-4	9.87×10^-5	2.32×10^-4	3.73×10^-4
p₂	20	4.37×10^-4	1.24×10^-4	2.20×10^-4	6.56×10^-4
	40	5.40×10^-5	2.07×10^-5	2.73×10^-5	2.45×10^-4
	80	6.67×10^-6	2.17×10^-6	3.37×10^-6	2.62×10^-5
	160	8.33×10^-7	2.52×10^-7	4.21×10^-7	3.09×10^-6
