Experimental and Numerical Simulation of Boundary Layer Transition in Plane Cascade

doi:10.19596/j.cnki.1001-246x.8600

Abstract

Abstract:

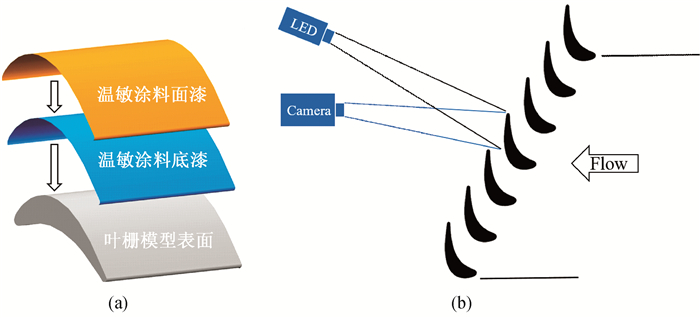

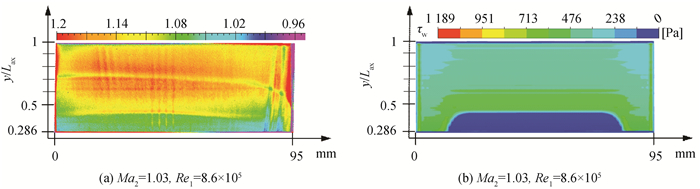

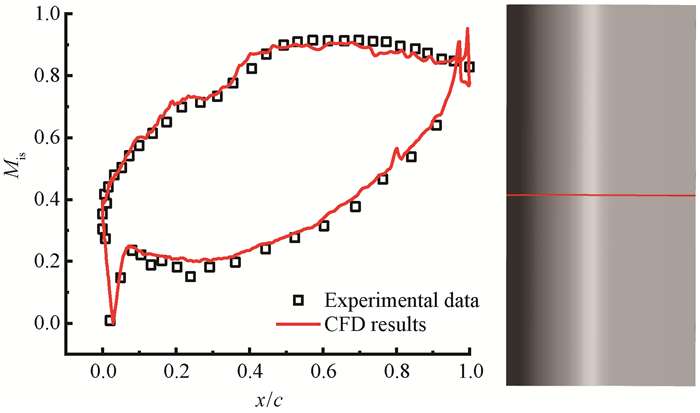

Based on TSP (Temperature Sensitive Paints) technology, the experiment and numerical simulation of the boundary layer transition position of the plane cascade are carried out. The experimental results show that the temperature distribution on the surface of the plane cascade can be obtained by TSP measurement technology, and then the boundary layer transition position can be judged. The verification work was completed by CFD (Computational Fluid Dynamics) numerical method.

Key words: transonic planar cascade, transition, temperature sensitive paints, computational fluid dynamics

Tianye SUN, Baoshan ZHU, Hongbiao WANG. Experimental and Numerical Simulation of Boundary Layer Transition in Plane Cascade[J]. Chinese Journal of Computational Physics, 2023, 40(3): 307-313.

Figures/Tables 11

References 30

1	RESHOTKO E . Boundary-layer stability and transition[J]. Annual Review of Fluid Mechanics, 1976, 8, 311- 349. DOI
2	MOIN P , MAHESH K . Direct numerical simulation: A tool in turbulence research[J]. Annual Review of Fluid Mechanics, 1998, 30, 539- 578. DOI
3	HERBERT T . Secondary instability of boundary layers[J]. Annual Review of Fluid Mechanics, 1988, 20, 487- 526. DOI
4	COULL J , HODSON H . Unsteady turbines boundary-layer transition in low-pressure[J]. Journal of Fluid Mechanics, 2011, 681, 370- 410. DOI
5	ZHONG X , WANG X . Direct numerical simulation on the receptivity, instability, and transition of hypersonic boundary layers[J]. Annual Review of Fluid Mechanics, 2012, 44 (1): 527- 561. DOI
6	PARZIALE N , SHEPHERD J , HORNUNG H G . Differential interferometric measurement of instability in a hypervelocity boundary layer[J]. AIAA Journal, 2013, 51 (3): 750- 754. DOI
7	CAI Linfeng , LI Haoge , CHEN Weifang . Analysis of steady cross-flow instability transition in boundary layer of infinitely extended swept wing[J]. Chinese Journal of Computational Physics, 2019, 36 (2): 175- 181.
8	ZHU D , LIU Z , YUAN X . Mechanism of porous surface delaying hypersonic boundary layer transition[J]. Chinese Journal of Computational Physics, 2016, 33 (2): 163- 169.
9	PAN Honglu , GUAN Faming , YUAN Xiangjiang , et al. Unsteady interaction on flat plate/isolated roughness element in hypersonic flow[J]. Chinese Journal of Computational Physics, 2015, 32 (5): 537- 544. DOI
10	GAN Zhou . Numerical simulation method based on layer flow energy turbulence model[J]. Chinese Journal of Computational Physics, 2013, 30 (2): 169- 179. DOI
11	YU Qiuyang , BAO Yun , WANG Shengye , et al. The DDES method of the B-C transition model simulates the transition large separation flow[J]. Chinese Journal of Computational Physics, 2020, 37 (1): 46- 54.
12	MATSUMURA S, SCHNEIDER S, BERRY S. Flow visualization measurement techniques for high-speed transition research in the Boeing/AFOSR Mach-6 quiet tunnel[C]. Aiaa/asme/sae/asee Joint Propulsion Conference & Exhibit, 2013.
13	KWAK D Y, YOSHIDA K, NOGUCHI M, et al. Boundary layer transition measurement using Preston tube on NEXST-1 flight test[R]. AIAA 2007-4173, 2007.
14	DRAKE A. Oil film interferometry in the development of long endurance aircraft[R]. AIAA 2210-43, 2010.
15	HILFER M, DUFHAUS S, YORITA D, et al. Application of pressure and temperature-sensitive paint on a highly loaded turbine guide vane in a transonic linear cascade[C]. Global Power and Propulsion Society Forum, 2017.
16	FEY U, KONRATH R, KIRMSE T, et al. Advanced measurement techniques for high Reynolds number testing in cryogenic wind tunnels[R]. AIAA 2010-1301, 2010.
17	HAUSMANN F, SCHROEDER W, LIMBERG W. Development of a multi-sensor hot-film measuring technique for transition detection in cruise flight[C]. 40th AIAA Aerospace Sciences Meeting & Exhibit, 2002.
18	ZHU J , GAO Z H , ZHAN H , et al. A high-speed nature laminar flow airfoil and its experimental study in wind tunnel with nonintrusive measurement technique[J]. Chinese Journal of Aeronautics, 2009, 22 (3): 225- 229. DOI
19	HAUSMANN F, SCHROEDER W, LIMBERG W. Development of a multi-sensor hot-film measuring technique for transition detection in cruise flight[C]. 40th AIAA Aerospace Sciences Meeting & Exhibit, 2002.
20	HALSTEAD D, WISLER D, OKIISHI T, et al. Boundary layer development in axial compressors and turbine: Part 1 of 4 composite picture[R]. ASME, 1995: 95-GT-461.
21	CHEN Z , GUO Y C , GAO C . Principle and technology of three-dimensional PIV[J]. Journal of Experiments in Fluid Mechanics, 2006, 20 (4): 77-82+105
22	MEDINA H, BENARD E, HUANG J C, et al. Study of the fluid mechanics of transitional steady and pulsed impinging jets using a high-speed PIV system[R]. AIAA 2008: 2008-766.
23	HORSTMANN K H, REDEKER G, QUAST A, et al. Flight tests with a natural laminar flow glove on a transport aircraft. [R]. AIAA 1990: 90-3044.
24	HORSTMANN K H, QUAST A, REDEKER G. Flight and wind-tunnel investigation on boundary layer transition at reynold number up to 10 to the 7^th[C]//Proceedings of the 16^th ICAS Congress, Israel, 1988, 2: 979-986.
25	HOLMES B J, GALL P D, CROOM C C, et al. A new method for laminar boundary layer transition visualization in flight: Color changes in liquid crystal coatings: NASA-TM-87666[R]. Washington D C: NASA, 1986.
26	MEE D J, WALTON T W, HARRISON S B, et al. A comparison of liquid crystal techniques for transition detection: AIAA-1991-0062[R]. Reston, VA: AIAA, 1991.
27	KAMEDA M. Fast-responding pressure-sensitive paints for unsteady flow measurement[C]. 10^th Pacific Symposium on flow visualization and image processing, Naple, Italy, 2015.
28	GREGORY J W , SAKAUE H , LIU T , et al. Fast pressure-sensitive paint for flow and acoustic diagnostics[J]. Annual Review of Fluid Mechanics, 2014, 46, 303- 330.
29	ZHU Y , CHEN X , WU J , et al. Aerodynamic heating in transitional hypersonic boundary layers: Role of second-mode instability[J]. Physics of Fluids, 2018, 30 (1): 011701.
30	FEY U, EGAMI Y, ENGLER H R, et al. High Reynolds number transition detection by means of temperature sensitive paint[C]. 44^th AIAA Aerospace sciences meeting and exhibit, Reno, Nevada, AIAA 2006: 2006-514.

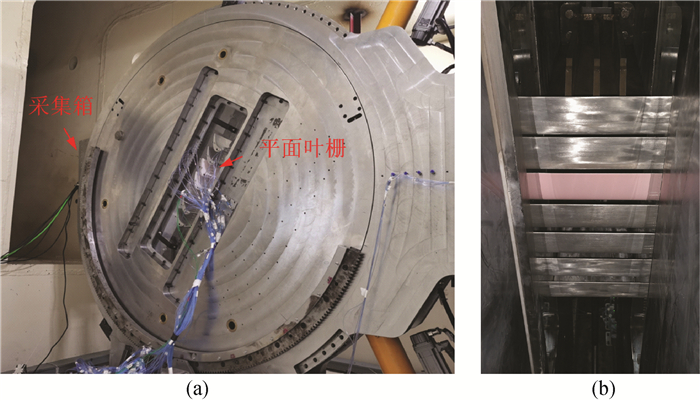

参数	进口气流角/°	叶型安装角/°	叶型稠度	叶型弦长/mm	叶栅展弦比	叶栅叶片数
数值	30	33.3	1.408 45	95	2.0	7

参数	进口气流角/°	叶型安装角/°	叶型稠度	叶型弦长/mm	叶栅展弦比	叶栅叶片数
数值	30	33.3	1.408 45	95	2.0	7

车次	进口总压/kPa	出口静压/kPa	出口马赫数	进口雷诺数/10⁵	进口湍流度/%
1	172	86.7	1.03	8.6	0.3
2	170	72.1	1.2	8.6	0.3
3	59.1	53.1	0.4	3.1	0.3
4	103	51.1	1.05	5.1	0.3

车次	进口总压/kPa	出口静压/kPa	出口马赫数	进口雷诺数/10⁵	进口湍流度/%
1	172	86.7	1.03	8.6	0.3
2	170	72.1	1.2	8.6	0.3
3	59.1	53.1	0.4	3.1	0.3
4	103	51.1	1.05	5.1	0.3

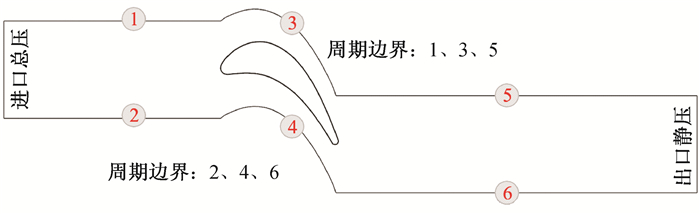

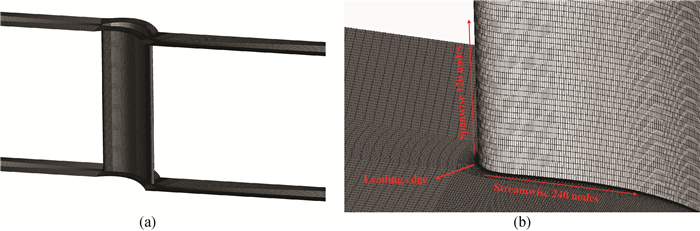

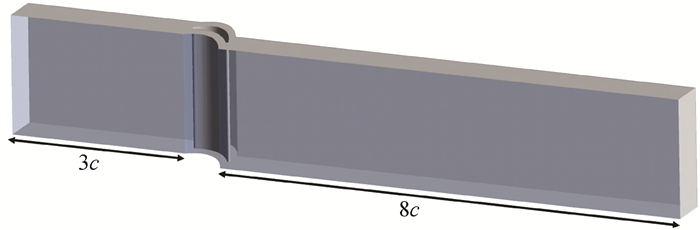

Item	Setting
Inlet boundary condition	Total pressure
Outlet boundary condition	Static pressure
Blade wall condition	No slip wall
Upper and lower surfaces	No slip wall
Advection scheme	High-resolution
Turbulence numeric	High-resolution
Residual convergence criterion	1×10^-5
