Site-bond Percolation Modeling of Real Networks: Generating Function Method

doi:10.19596/j.cnki.1001-246x.8362

Abstract

Abstract:

We propose a site-bond percolation model based on generating function method, and then apply it to four representative concrete networks to observe accuracy of its estimates. Finally, we discuss causes of the inaccuracy and give simple applications. Our site-bond percolation model could be used to anticipate the connectivity of various real networks after site and bond attack and study their entire robustness. Process procedure of the model is simple, and the accuracy of its estimates is acceptable compared with that calculated with the message passing algorithm. Meanwhile, its calculation time is much lower than that of the information passing algorithm. Therefore, it has good application potential.

Key words: complex network, site-bond percolation, generating function, phase transition

Tao FU, Long WU, Chenguang LI. Site-bond Percolation Modeling of Real Networks: Generating Function Method[J]. Chinese Journal of Computational Physics, 2022, 39(2): 212-222.

Figures/Tables 7

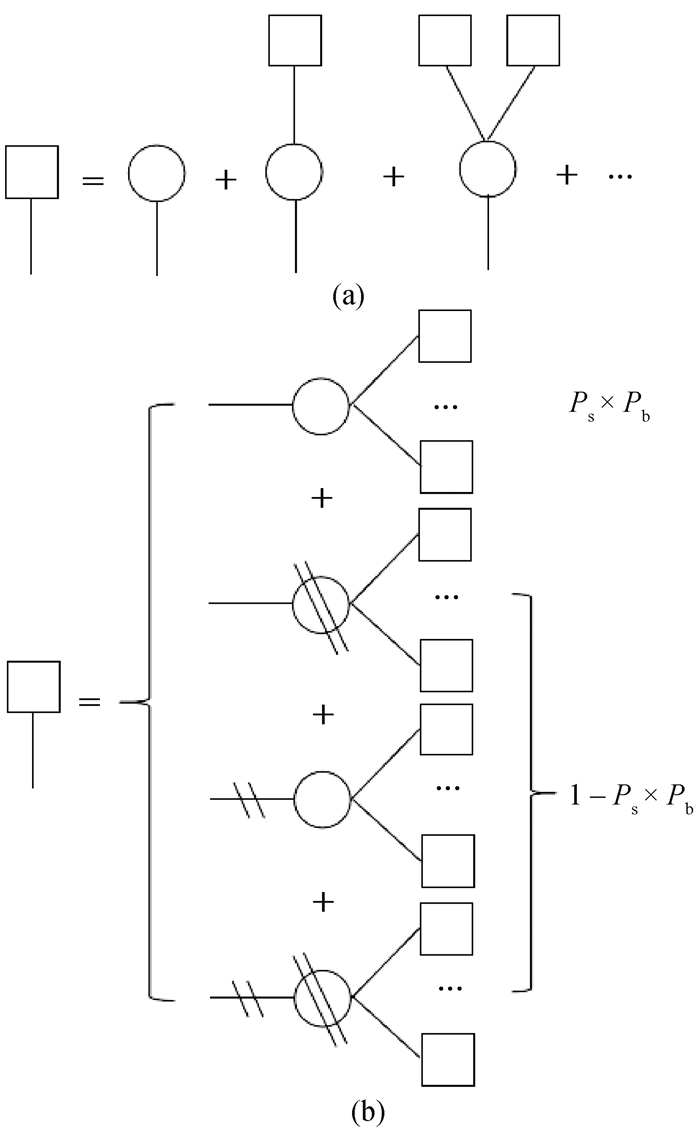

Fig.1 A schematic of the sum rule for connected component reachable by following a randomly chosen edge (H1(x)) (a) The network under no node or edge removal, and (b) the network after node and edge removal (The circles denote nodes and the squares denote components.)

Table 1 Structural characteristics of four real-world networks

	结点数量	密度	结点度平均值	结点度最大值	平均距离	平均簇系数
ER随机网络	10 000	0.000	4.956	15	5.934	0.001
Internet自治系统拓扑片段	10 000	0.001	5.042	1 565	3.457	0.414
美国西部诸州输电网络	4 941	0.001	2.669	19	18.989	0.080
科学家合著网络片段	10 000	0.001	9.290	178	5.007	0.550

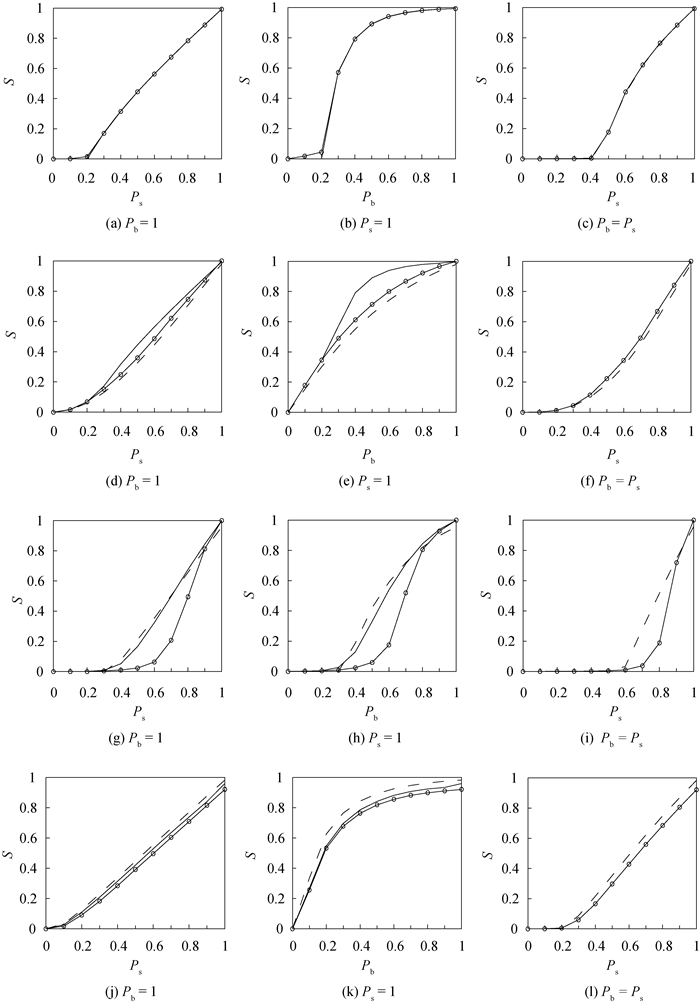

Fig.2 Analytic estimates and simulation values of S (Solid and dashed lines denote estimates of the message passing algorithm in Ref. [17-18] and our model, respectively. Solid-circle lines are from direct numerical simulations on the same networks and averaged over 100 repetitions.) (a)-(c) results for an ER random graph; (d)-(f) results for a part of the structure of the internet at the level of autonomous systems; (g)-(i) results for the western states power grid of the United States; (j)-(l) results for a part of the scientific collaboration networks

Table 2 Site-bond percolation thresholds estimated with message passing algorithm, our model and from direct numerical simulation

	本文模型	信息传播算法	实际模拟值
ER随机网络	0.203	0.203	0.235
Internet自治系统拓扑片段	0.005	0.016	0.018
美国西部诸州输电网络	0.348	0.161	0.570
科学家合著网络片段	0.046	0.025	0.092

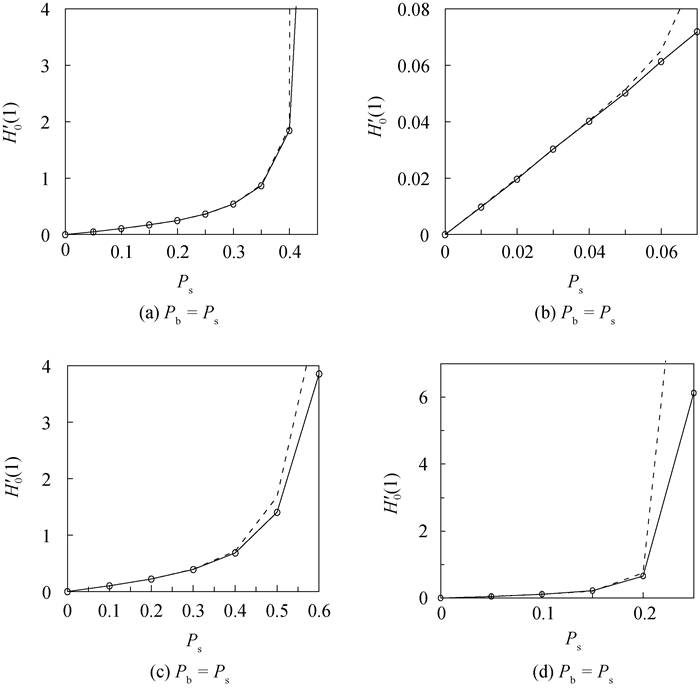

Fig.3 Analytic estimates and simulation values of H′0(1) (Dashed lines denote estimates of our model. Solid-circle lines are from direct numerical simulations on the same networks and averaged over 100 repetitions.) (a) results for an ER random graph; (b) results for a part of the structure of the Internet at the level of autonomous systems; (c) results for the western states power grid of the United States; (d) results for a part of the scientific collaboration networks

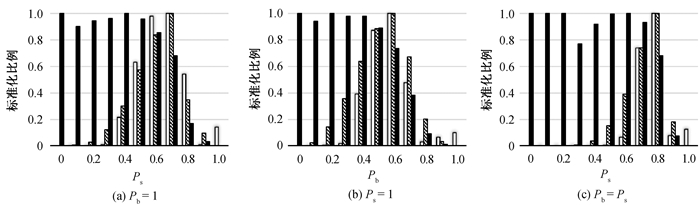

Fig.4 Evolution trend of the absolute value of S discrepancy, the number and the proportion of those nodes with the degree equal to or more than 3 out of the giant component (The colorless filled cylinders denote the absolute value of S discrepancy. The oblique line filled cylinders denote the number of nodes with the degree equal to or more than 3 out of the giant component. And the black filled cylinders represent the proportion of those nodes to all nodes with the degree equal to or more than 3.)

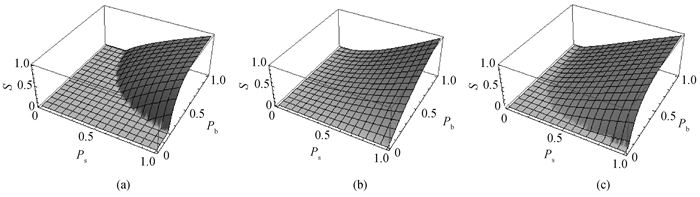

Fig.5 S estimated by the site-bond model under all combined values of Ps and Pb (a) results for an ER random graph; (b) results for a part of the structure of the Internet at the level of autonomous systems; (c) results for a part of the scientific collaboration networks
