Applications of Three-component Mie-GrüNeisen Mixture Model in Underwater Explosion Mitigation Problem

doi:10.19596/j.cnki.1001-246x.8658

Abstract

Abstract:

In this paper, our main concern is the effects of the mitigation layer in the underwater explosion problem. As the explosive gaseous products, water, mitigation layer, and so on constitute a fluid mixture, the physical states of these components are covered by a uniform Mie-Grüneisen equation of states(EOS). Then the Mie-Grüneisen mixture model is applied to simulate the complicated interaction among gaseous product, water and solid layer. In the calculation, the particular parameters of EOS are used to make a distinction among the physical properties of fluid components and the volume fractions are used to identify the interfaces. In addition, the inlet and outlet boundary conditions are implemented here. During the calculation process, the effect of the mitigation layer is investigated here. According to the investigation, it is found that the effect of the layer is decided by the shock impedance of layer material. The pressure of the shock wave will decrease when it penetrates a new medium with lower impedance. On the other side, the penetrated shock wave in the layer is reflected by the structure and produces a second shock wave. During this process, the affection of layer thickness and distance is also studied here. But both two factors are unimportant under the mitigation mechanism.

Key words: mitigation layer, shock wave, Mie-Grüneisen mixture model, equation of States, interface

Zongduo WU, Qingyang MAN, Jin YAN, Jianhua PANG, Yifang SUN. Applications of Three-component Mie-GrüNeisen Mixture Model in Underwater Explosion Mitigation Problem[J]. Chinese Journal of Computational Physics, 2023, 40(5): 556-569.

Figures/Tables 17

Table 1 Mie-Grüneisen state parameters for some materials

	ρ₀/(kg·m^-3)	c₀/(m·s^-1)	s	γ₀	α	适用范围/GPa
水	1 000	1 480	2.560, -1.986, 0.227(s₁, s₂, s₃)	0.5	1.0	0~120
铁(Fe-1018)、钢	7 850	3 574	1.920	1.69	1.0	0~270
聚乙烯塑料	915	2 900	1.481	1.644	1.0	0~50
砂石	1 950	2 450	1.86	1.28	1.0

Table 2 Comparison of equations required in different numerical models

介质数量	多相模型^[33]	五方程模型^[34]	Mie-Grüneisen混合模型
2	7个方程，1个逼近关系式	5个方程，1个逼近关系式	6个方程
3	11个方程，2~3个逼近关系式	7个方程，2~3个逼近关系式	7个方程
4	15个方程，3~6个逼近关系式	9个方程，3~6个逼近关系式	8个方程

Fig.1 The p、u results of TNT-water impact problem

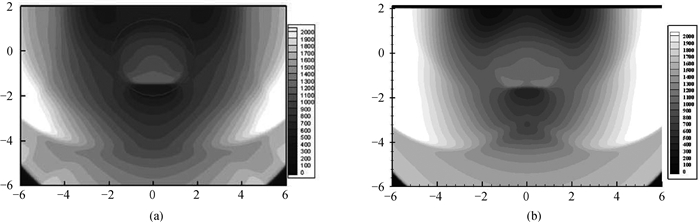

Fig.2 Pressure contours of near-wall bubbles problem (a) Ref.[36]'s results; (b) our results

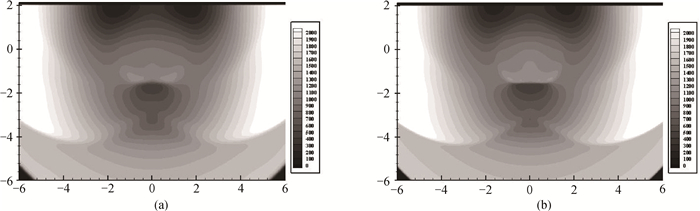

Fig.3 Grid sizes independence in near-wall bubbles problem (a) dx=dy=0.007 5; (b) dx=dy=0.003 75

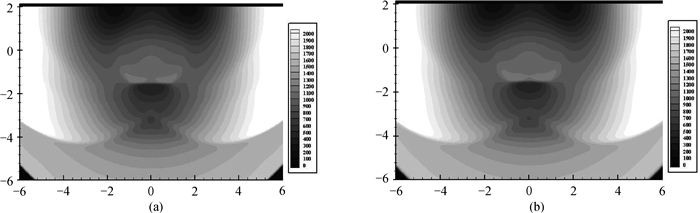

Fig.4 Time step independence in near-wall bubbles problem (a) CFL=0.6; (b) CFL=0.2

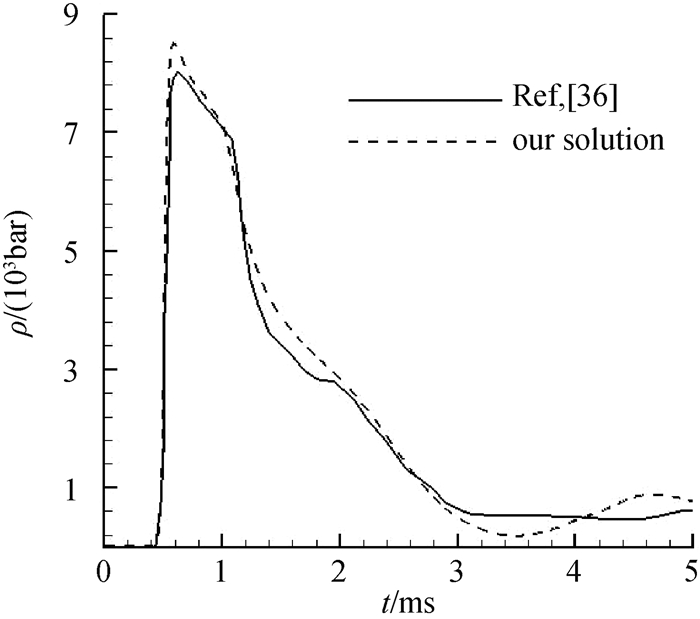

Fig.5 Time evolution of pressure at the rigid body right

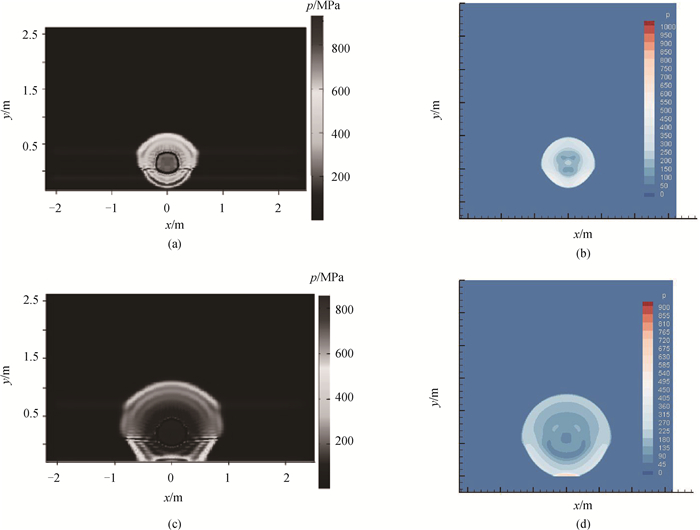

Fig.6 Pressure distribution of shock wave in sand after reflection (a) Ref.[28]'s results at 0.2 ms; (b) our results at 0.2 ms; (c) Ref.[28]'s results at 0.4 ms; (d) our results at 0.4 ms

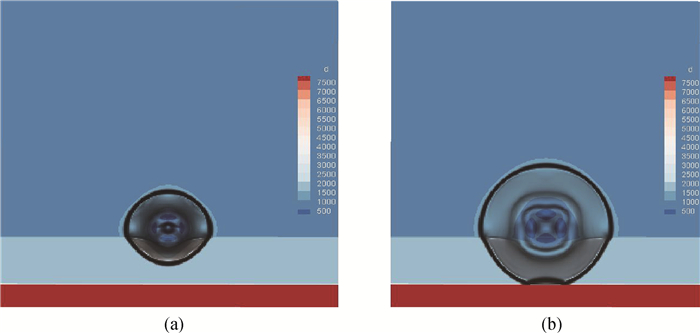

Fig.7 Density distribution at different time instants with the impact of the shock wave on sand (a) our results at 0.2 ms; (b) our results at 0.4 ms

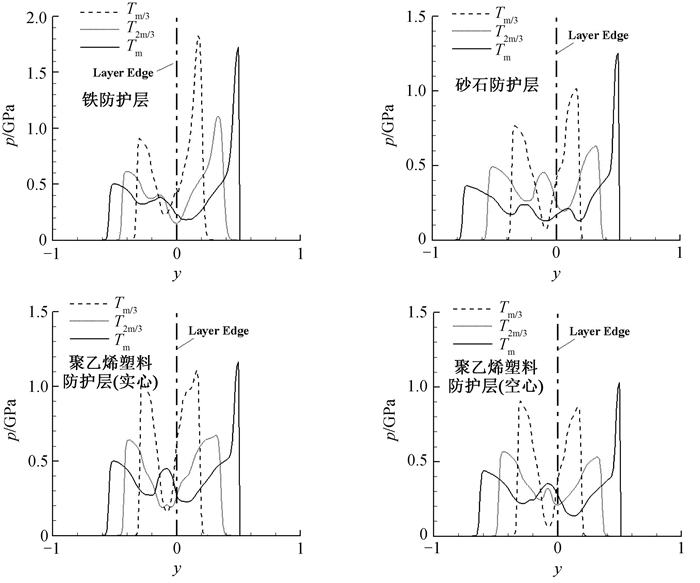

Fig.8 Pressure distribution along the center line x=0.0 for four mitigation cases

Fig.9 Pressure history curves for four mitigation cases

Table 3 The shock impedance contrast of the four mediums under impact

	ρ₀/(kg·m^-3)	冲击波运动时间/ms	冲击波运动距离/m	冲击阻抗SI/(MPa·m·s^-1)
钢铁	7 800	0.138	0.5	28.26
砂石	1 950	0.227	0.5	4.30
聚乙烯塑料(实心)	915	0.139	0.5	3.29
聚乙烯塑料(空心)	750	0.172	0.5	2.33
水	1 000	0.172	0.6~0.075 × 2	2.62

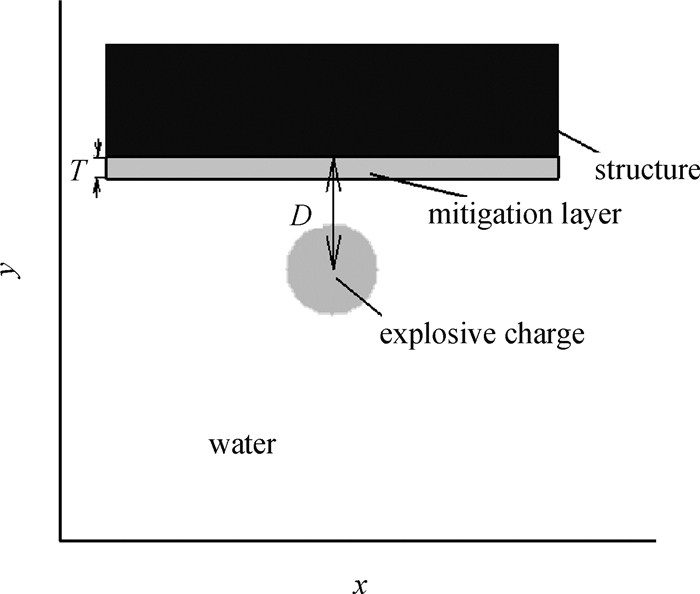

Fig.10 Schematic diagram of explosive charge and mitigation layer

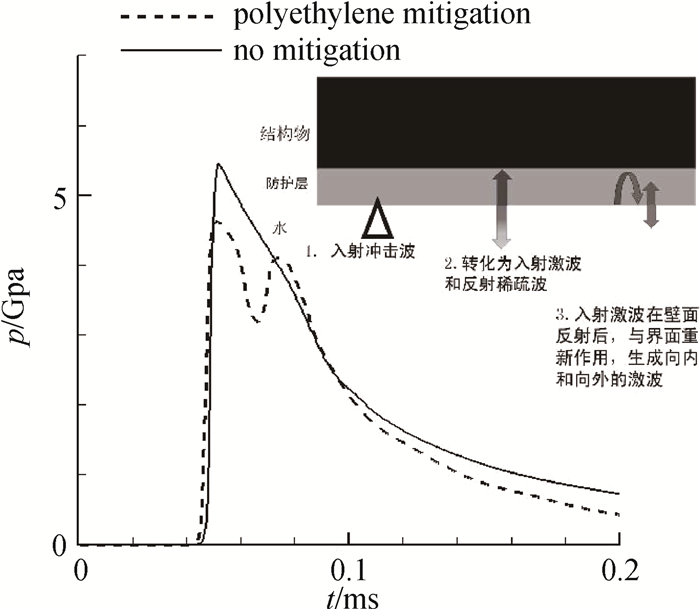

Fig.11 Pressure history curves whether the mitigation layer exists or not

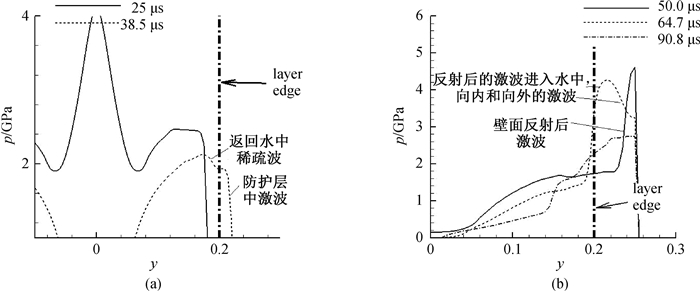

Fig.12 Pressure distribution along the center line x=0.0 at different time instants

Fig.13 Pressure history curves for different layer thickness

Fig.14 Pressure history curves for different layer positions

References 38

1	COLE R H. Underwater explosion[M]. New Jersey: Princeton University Press, 1948.
2	金泽宇. 抗冲覆盖层水下爆炸计算方法研究[D]. 上海: 上海交通大学, 2017.
3	GLASCOE L, McMICHAEL L, VANDERSALL K, et al. Underwater blast experiments and modeling for shock mitigation[C]. 14th International Detonation Symposium, 2010.
4	贾虎, 沈兆武. 空气隔层对水中冲击波的衰减特性[J]. 爆炸与冲击, 2012, 32(1): 61- 66.
5	YIN C Y, LIU J X, JIN Z Y. Experimental and numerical study of the near-field underwater explosion of a circular plate coated by rigid polyurethane foam[J]. Ocean Engineering, 2022, 252, 111248. DOI
6	YANG G D, FAN Y, WANG G H, et al. Mitigation effects of air-backed RC slabs retrofitted with CFRP subjected to underwater contact explosions[J]. Ocean Engineering, 2023, 267, 113261. DOI
7	AHMED H, HOSAM M, AHMED E, et al. Multi-layer protective armour for underwater shock wave mitigation[J]. Defence Technology, 2015, 11(4): 338- 343. DOI
8	孙远翔, 田俊宏. 近场水下爆炸载荷及舰船结构动态响应研究综述[J]. 舰船科学技术, 2019, 41(11): 1- 8.
9	TAYLOR G I. The pressure and impulse of submarine explosion waves on plates[G]//The Scientific Papers of Sir Georey Ingram Taylor. Cambridge: Cambridge University Press, 1963: 287-303.
10	罗泽立, 周章涛, 毛海斌, 等. 水下爆炸强冲击波与平板结构相互作用的理论分析方法[J]. 高压物理学报, 2017, 31(4): 443- 452.
11	XU L, FENG C L, LIU T G. Analysis of impact load on elastic plate in underwater explosions with modified ghost fluid method[J]. Chinses Journal of Computational Physics, 2017, 34(1): 1- 9.
12	王成, SHUC. 爆炸力学高精度数值模拟研究进展[J]. 科学通报, 2015, 60(10): 882- 898.
13	刘铁钢, 许亮. 模拟多介质界面问题的虚拟流体方法综述[J]. 气体物理, 2019, 4(2): 1- 16.
14	XU L, FENG C L, LIU T G. Design principles of ghost fluid method[J]. Chinses Journal of Computational Physics, 2016, 33(6): 671- 680.
15	ZHAO Z T, RONG J L, ZHANG S X. An interface sharpening technique for the simulation of underwater explosions[J]. Ocean Engineering, 2022, 266, 112922. DOI
16	DING Y, YUAN L, YANG L. An explicit-implicit algorithm for ghost fluid method[J]. Chinese Journal of Computational Physics, 2013, 30(1): 27- 34.
17	姚成宝, 付梅艳, 韩峰, 等. 欧拉坐标系下具有锐利相界面的可压缩多介质流动数值方法研究[J]. 力学学报, 2020, 52(4): 1063- 1079.
18	ZHAO Q, ZHANG M P, XU S L, et al. Numerical simulation of planar moving shock interacting with a single row of water columns and multi-material interfaces[J]. Chinses Journal of Computational Physics, 2018, 35(3): 285- 293.
19	WU W B, LIU Y L, ZHANG A M, et al. An h-adaptive local discontinuous Galerkin method for second order wave equation: Applications for the underwater explosion shock hydrodynamics[J]. Ocean Engineering, 2022, 264, 112526.
20	PENG Y X, ZHANG A M, MING F R. Numerical simulation of structural damage subjected to the near-field underwater explosion based on SPH and RKPM[J]. Ocean Engineering, 2021, 222, 108576.
21	于明. 固体炸药爆轰与惰性介质相互作用的一种扩散界面模型[J]. 爆炸与冲击, 2020, 40(10): 110- 121.
22	FAVRIE N, GAVRILYUK S L, SAUREL R. Solid-fluid diffuse interface model in cases of extreme deformations[J]. Journal of Computational Physics, 2009, 228(16): 6037- 6077.
23	梁姗, 刘伟, 袁礼. 七方程可压缩多相流模型的HLLC格式及应用[J]. 力学学报, 2012, 44(5): 884- 895.
24	WANG Z, ZOU G Y, GONG J, et al. A pressure-based algorithm for numerical simulation of one-dimensional two-phase flow[J]. Chinses Journal of Computational Physics, 2019, 36(4): 413- 420.
25	WU Z D, YAN J, ZONG Z, et al. A diffused interface type mass fraction model with time steps saving mixture rules[J]. Chinses Journal of Computational Physics, 2022, 39(5): 510- 520.
26	XUE C, LI X D, SUN W J, et al. A multi-material five-equation-reduced model and arlificial compression method for interface capture[J]. Chinses Journal of Computational Physics, 2021, 38(3): 257- 268.
27	SHYUE K M. A fluid-mixture type algorithm for compressible multicomponent flow with Mie-Grüneisen equation of state[J]. Journal of Computational Physics, 2001, 171(2): 678- 707.
28	姚熊亮, 陈娟, 张阿漫, 等. 基于SPH方法的二维水下爆炸冲击载荷计算[J]. 哈尔滨工程大学学报, 2010, 31(10): 1303- 1311.
29	MILLER G H, PUCKETT E G. A high-order Godunov method for multiple condensed phases[J]. Journal of Computational Physics, 1996, 128(1): 134- 164.
30	ZHOU J, XU S L. Numerical inlet and outlet boundary conditions in SPH method[J]. Chinses Journal of Computational Physics, 2016, 33(5): 516- 522.
31	LEE E, FINGER M, COLLINS W. JWL equation of state coefficients for high explosives, UCID-16189[R]. Livermore: Lawrence Livermore National Laboratory, 1973.
32	ZHANG B P, ZHANG Q M, HUANG F L. Detonation physics[M]. Beijing: Weapon Industry Press, 2006.
33	SAUREL R, ABGRALL R. A multiphase Godunov method for compressible multifluid and multiphase flows[J]. Journal of Computational Physics, 1999, 150(2): 425- 467.
34	ALLAIRE G, CLERC S, KOKH S. A five-equation model for the simulation of interfaces between compressible fluids[J]. Journal of Computational Physics, 2002, 181(2): 577- 616.
35	REN Y X, CHEN H X. Fundamental computational fuilds dynamics[M]. Beijing: Tsinghua University Press, 2006.
36	XIE W F, YOUNG Y L, LIU T G, et al. Dynamic response of deformable structures subjected to shock load and cavitation reload[J]. Computational Mechanics, 2007, 40(4): 667- 681.
37	高飞, 邱艳宇, 王明洋, 等. 基于孔隙演化的砂土冲击绝热关系研究[J]. 振动与冲击, 2017, 36(17): 134- 140.
38	XU L Y, WANG S P, LIU Y L, et al. Numerical simulation on the whole process of an underwater explosion between a deformable seabed and a free surface[J]. Ocean Engineering, 2021, 219, 108311.
