Smoothed Particle Hydrodynamics Simulation of Non-isothermal eXtended Pom-Pom Poiseuille Flow

doi:10.19596/j.cnki.1001-246x.8685

Abstract

Abstract:

Smoothed particle hydrodynamics (SPH) simulation of non-isothermal viscoelastic poiseuille flow is carried out, in which the viscoelastic properties of the fluid are modeled and calculated according to the eXtended Pom-Pom (XPP) constitutive model. The SPH discrete format of the temperature equation is derived, and the temperature dependence of viscoelastic properties of fluid is considered based on the principle of time temperature equivalence. The accuracy and effectiveness of the SPH method for simulating non-isothermal XPP poiseuille flow are verified by comparing the SPH results with those obtained by the finite volume method. The numerical convergence of the SPH method is discussed by performing simulations with four different initial particle spacings. The influence of the introduction of the temperature equation on poiseuille flow is studied. The influence of different physical parameters on the flow process is deeply analyzed.

Key words: smoothed particle hydrodynamics, eXtended Pom-Pom model, non-isothermal, poiseuille flow

CLC Number:

O242

Xiaoyang XU, Yuting ZHAO. Smoothed Particle Hydrodynamics Simulation of Non-isothermal eXtended Pom-Pom Poiseuille Flow[J]. Chinese Journal of Computational Physics, 2024, 41(2): 161-171.

Figures/Tables 7

Fig.1 The geometric region of viscoelastic Poiseuille flow

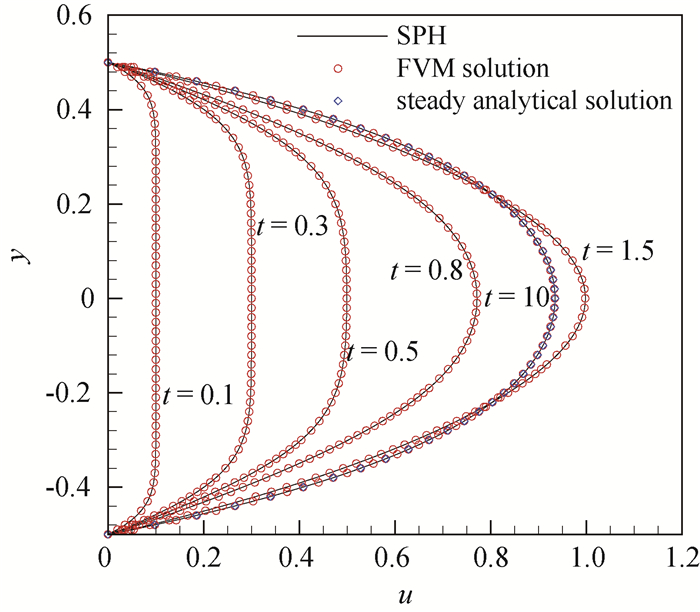

Fig.2 Comparison of SPH solutions with FVM numerical solutions and steady analytical solution

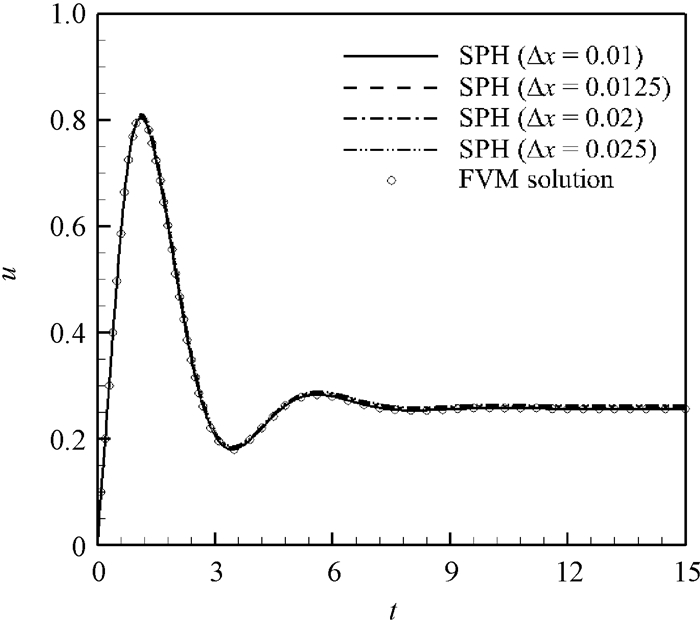

Fig.3 Convergence analysis of SPH solutions and comparison with FVM solution

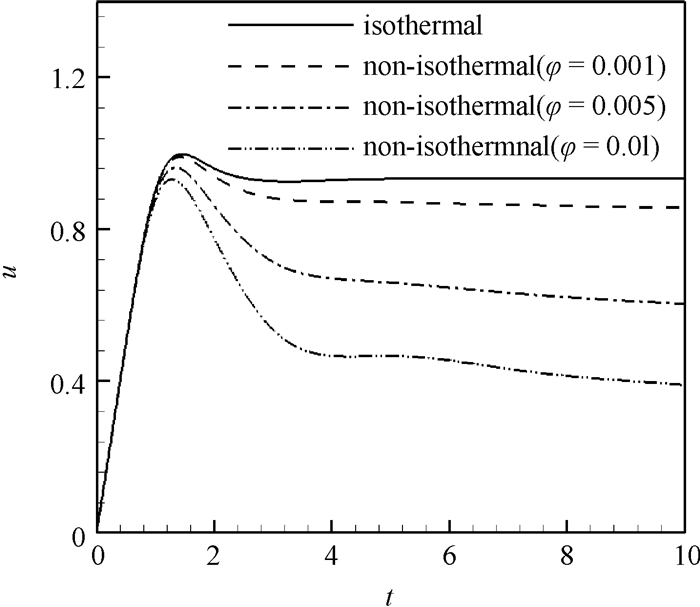

Fig.4 Comparison between non-isothermal flows and isothermal flow and effect of φ on velocity u at point A with time

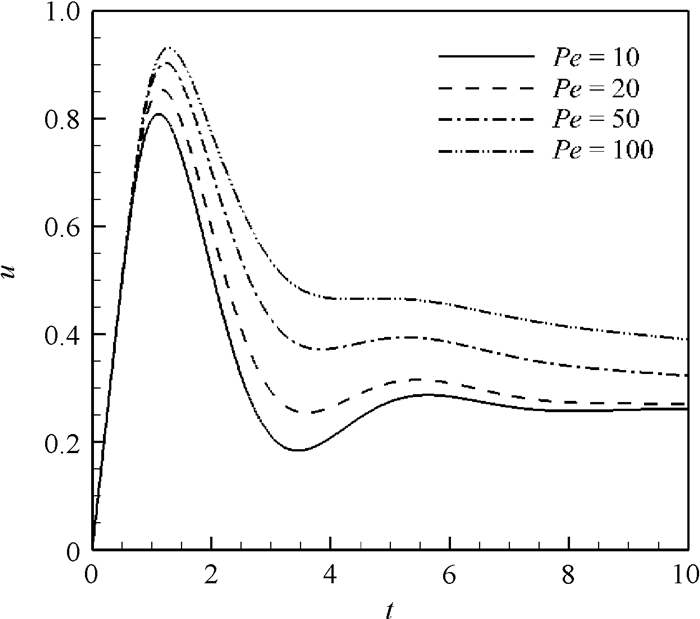

Fig.5 Effect of Péclet number on velocity u at point A with time

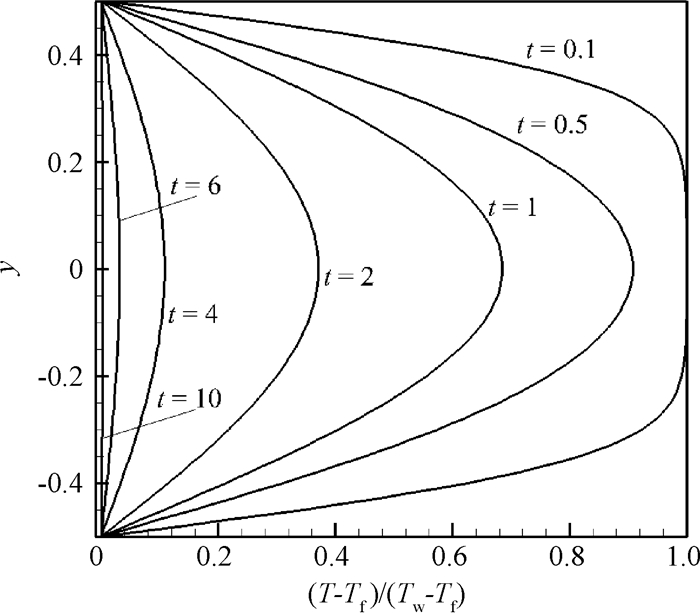

Fig.6 Temperature distribution with respect to y at seven different times

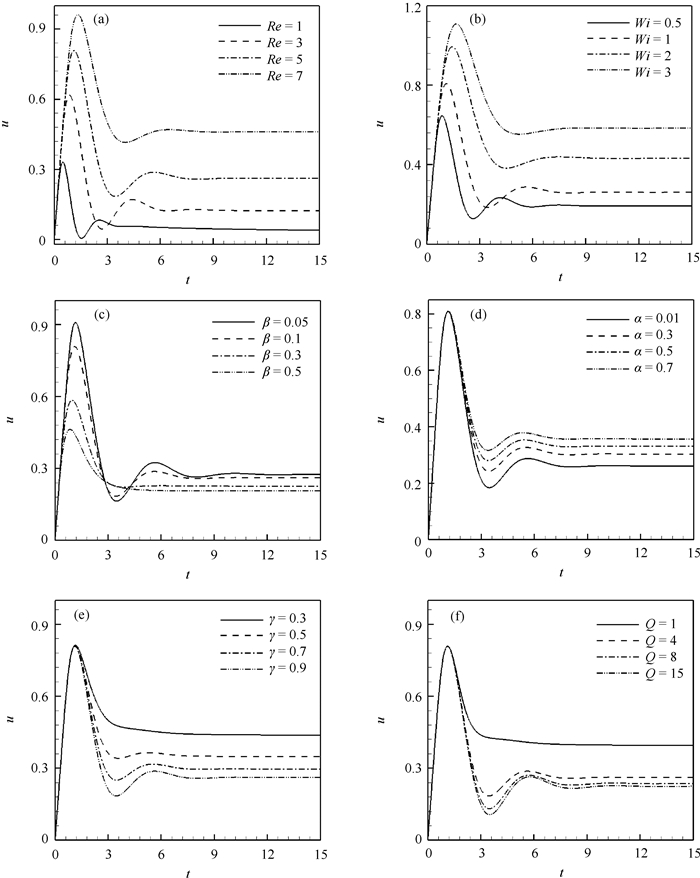

Fig.7 Effect of different rheological parameters on velocity u at point A with time (a) Re; (b) Wi; (c) β; (d) α; (e) γ; (f) Q
