Non-isothermal Polymer Filling Process via Phase Field Method in Three Dimensions

doi:10.19596/j.cnki.1001-246x.8659

Abstract

Abstract:

We investigate the non-isothermal non-Newtonian filling process according to the phase field method in three dimensions. The moving interface between the Newtonian and non-Newtonian fluid is captured by the Cahn-Hilliard equation. Based on phase field parameters, the governing equations of the flow field could be written in a unified form. After that, the Navier-Stokes equations are split into several sub-equations and the FEM and SUPG will be used to handle the appropriate equations. The variation of the viscosity of the polymer melt is described via the Cross-WLF model. The thin wall rectangular cavities with and without obstacles are considered to illustrate the convergence, robustness and accuracy of the numerical algorithm. The influences of the inlet velocity and the size of the injection gate on the filling process are analyzed. The numerical results agree well with the experimental data and also exhibit good mass conservation properties.

Key words: non-isothermal, filling process, Cross-WLF model, phase field method, finite element method

CLC Number:

O242.1

Puyang GAO. Non-isothermal Polymer Filling Process via Phase Field Method in Three Dimensions[J]. Chinese Journal of Computational Physics, 2023, 40(6): 689-698.

Figures/Tables 16

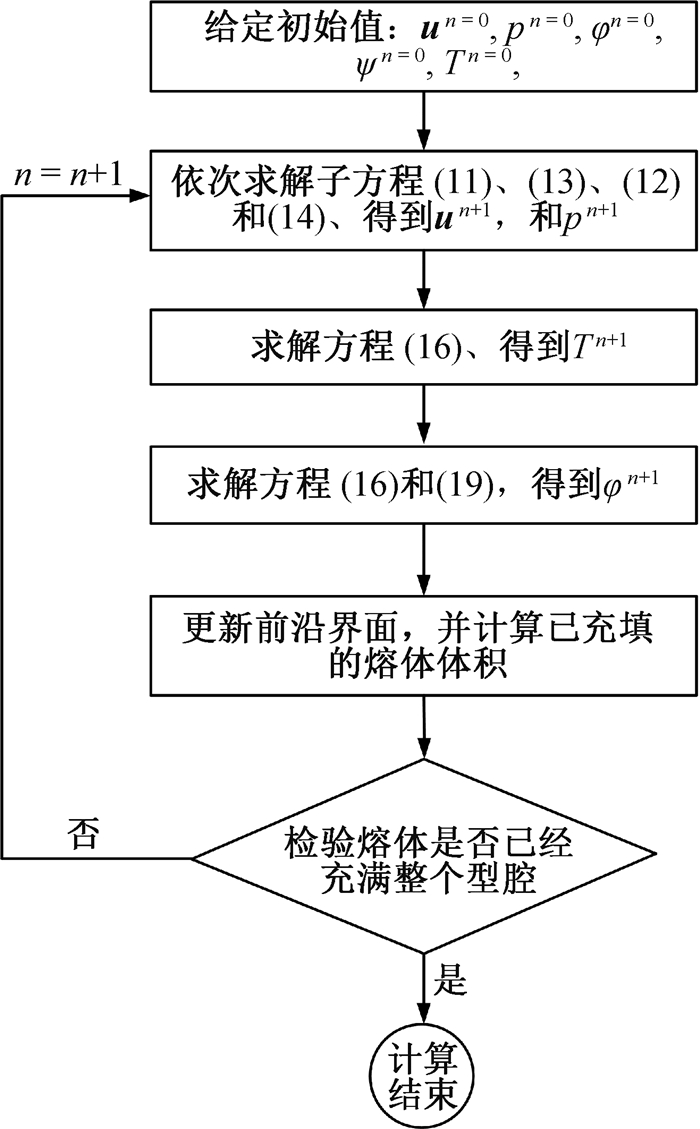

Fig.1 Schematic diagram of the whole calculation process

Table 1 Several parameters for the polypropylene (PP) and its Cross-WLF model

Parameter	Value	Parameter	Value
ρ_l/(kg·m^-3)	0.96 × 10³	D₁/(Pa·s)	6.93 × 10¹¹
C_l/(J·kg^-1·K^-1)	2.0 × 10³	D₂/K	263.15
κ_l/(W·m^-1·K^-1)	0.19	D₃/(K·Pa^-1)	0
τ^*/Pa	30 354	A₁	26.5
n	0.21	A₂/K	51.6

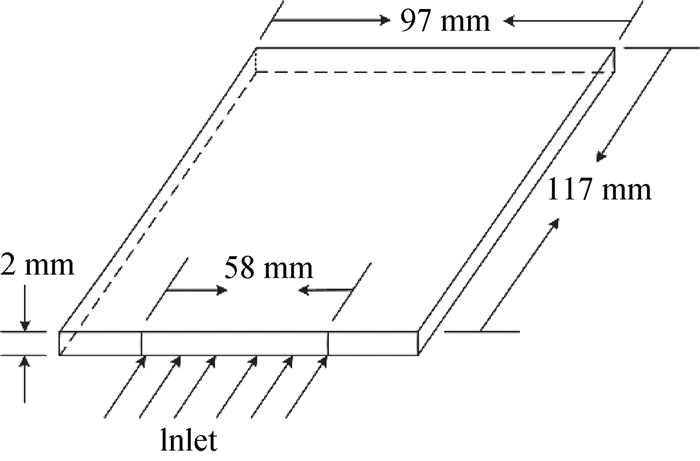

Fig.2 Sketch map of the three dimensional rectangular cavity

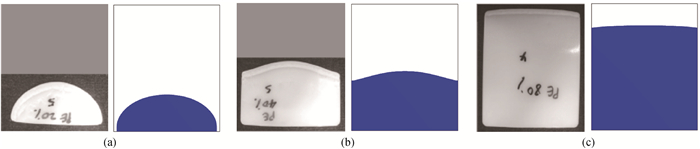

Fig.3 Experimental data (left column) and numerical results (right column) of interface front development at different time instants (a) t=1.1 s; (b) t=1.9 s; (c) t=3.5 s

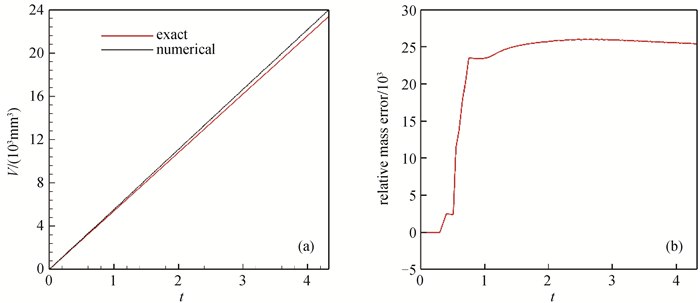

Fig.4 (a) Exact solution (red line) and numerical result (black line) of polymer melt volume; (b) variation of relative mass error of polymer melt

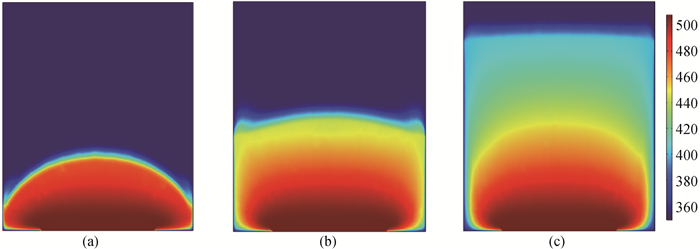

Fig.5 Distribution of temperature on the x-y plane with z=1.5 mm at different time instants (a) t=1.1 s; (b) t=1.9 s; (c) t=3.5 s

Fig.6 Three-dimensional view of distribution of temperature field at t=3.5 s

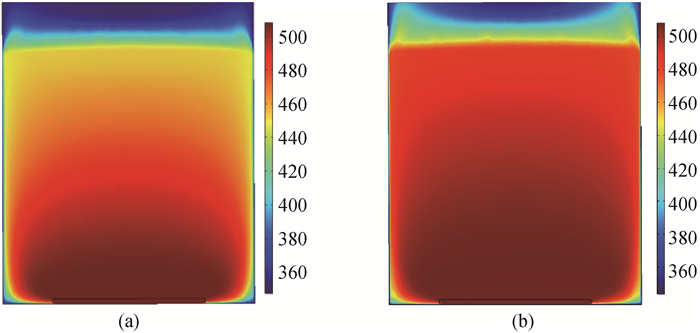

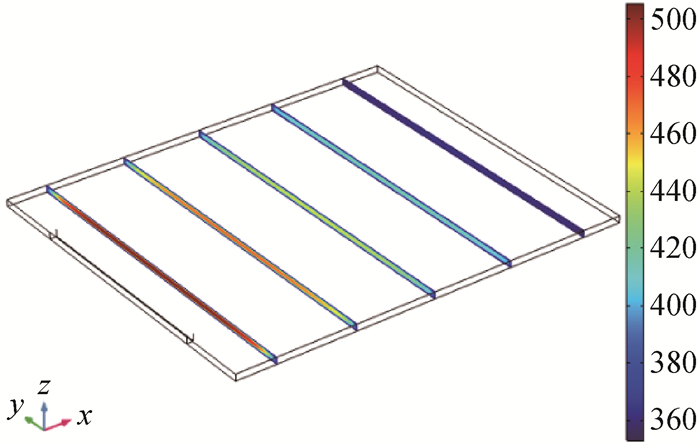

Fig.7 Temperature field distribution with velocities v1 and v2

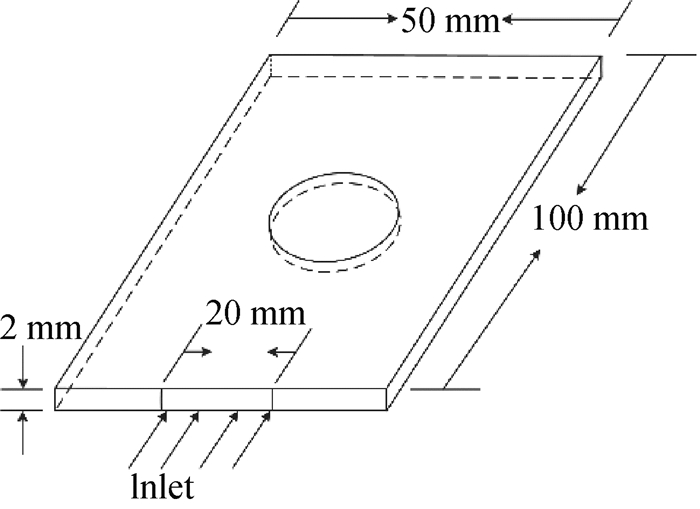

Fig.8 Sketch of the rectangular cavity with a cylindrical obstacle

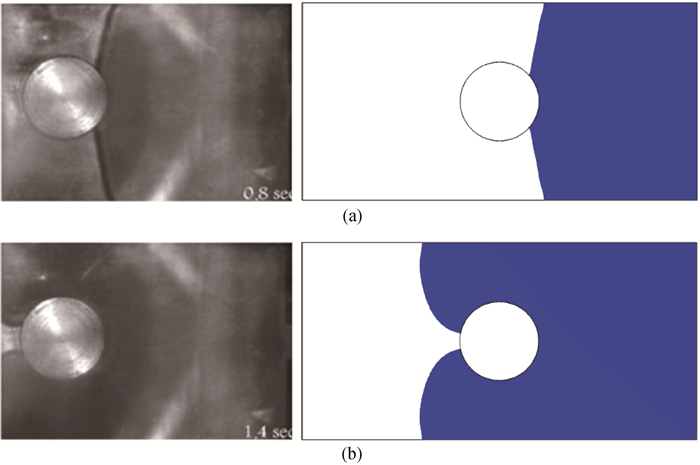

Fig.9 Experimental figures (left column) and numerical results (right column) of the free interface front at (a) t=0.8 s; (b) t=1.4 s

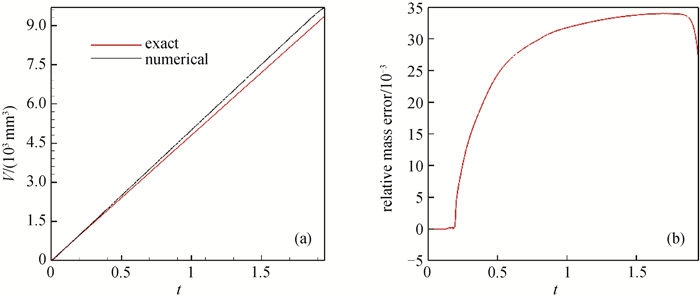

Fig.10 (a) Exact solution (red line) and numerical result (black line) of polymer melt volume; (b) variation of relative mass error of polymer melt

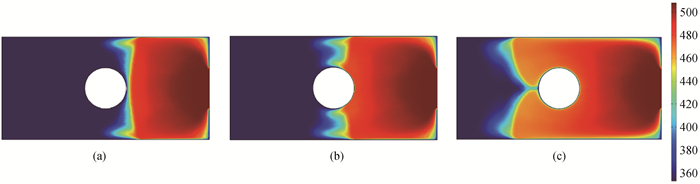

Fig.11 Distribution of temperature field at (a) t=0.6 s; (b) t=0.8 s; (c) t=1.4 s

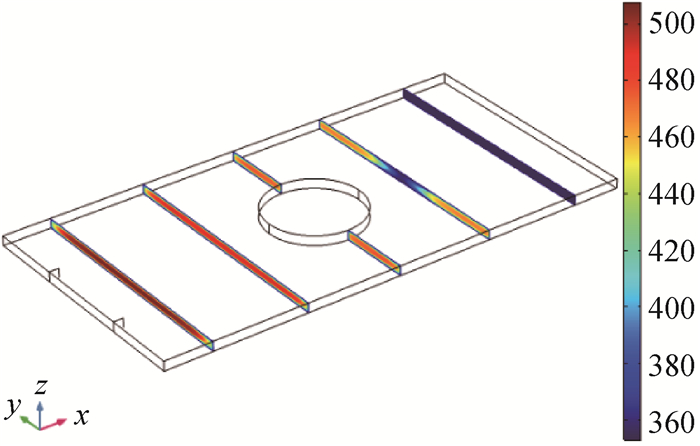

Fig.12 Three-dimensional view of distribution of temperature field at t=1.4 s

Fig.13 (a) Interface front and (b) distribution of temperature at t=0.27 s

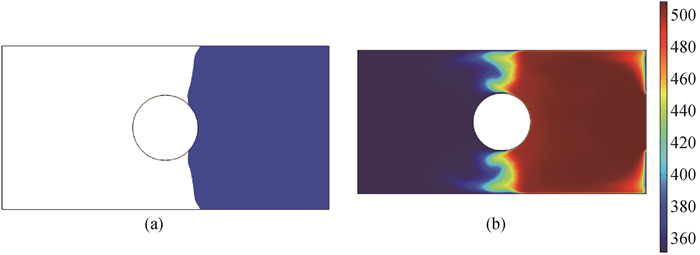

Fig.14 (a) Interface front and (b) distribution of temperature at t=0.275 s

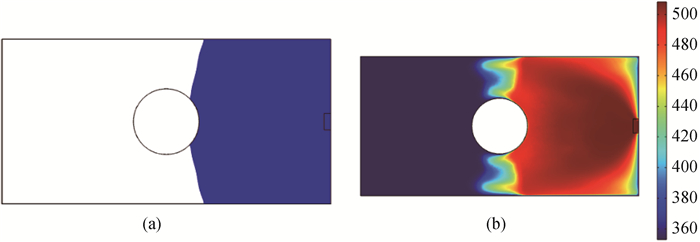

Fig.15 (a) Interface front and (b) distribution of temperature field at t=0.525 s

References 24

1	ZHUANG X , OUYANG J , LI W , et al. Three-dimensional simulations of non-isothermal transient flow and flow-induced stresses during the viscoelastic fluid filling process[J]. International Journal of Heat and Mass Transfer, 2017, 104, 374- 391. DOI
2	LI Q , NIU H . Three-dimensional simulations of non-isothermal flow for gas penetration in complex cavity during gas assisted injection moulding process[J]. The Canadian Journal of Chemical Engineering, 2018, 96 (4): 978- 988. DOI
3	REN J , OUYANG J , JIANG T . An improved particle method for simulation of the non-isothermal viscoelastic fluid mold filling process[J]. International Journal of Heat and Mass Transfer, 2015, 85, 543- 560. DOI
4	XU X , TIAN L , PENG S , et al. Development of SPH for simulation of non-isothermal viscoelastic free surface flows with application to injection molding[J]. Applied Mathematical Modelling, 2022, 104, 782- 805. DOI
5	ZHUANG X , OUYANG J , JIANG C , et al. New approach to develop a 3D non-isothermal computational framework for injection molding process based on level set method[J]. Chinese Journal of Chemical Engineering, 2016, 24 (7): 832- 842. DOI
6	LIU Q , OUYANG J , LI W , et al. Three-dimensional modelling and simulation of sequential co-injection moulding with application to a toothbrush handle[J]. The Canadian Journal of Chemical Engineering, 2016, 94 (2): 382- 390. DOI
7	LI Q , QU F . A level set based immersed boundary method for simulation of non-isothermal viscoelastic melt filling process[J]. Chinese Journal of Chemical Engineering, 2021, 32 (2): 119- 133.
8	BAUM M , ANDERS D . A numerical simulation study of mold filling in the injection molding process[J]. Computer Methods in Materials Science, 2021, 21 (1): 25- 34.
9	CHIU P H . A coupled phase field framework for solving incompressible two-phase flows[J]. Journal of Computational Physics, 2019, 392, 115- 140. DOI
10	WANG J , MA W J , LIU Y Z , et al. Morphological evolution and growth kinetics in primary crystallization of amorphous: Phase field method[J]. Chinese Journal of Computational Physics, 2022, 39 (4): 403- 410.
11	FENG Q H , ZHAO Y C , WANG S , et al. Pore-scale oil-water two-phase flow simulation based on phase field method[J]. Chinese Journal of Computational Physics, 2020, 37 (4): 439- 447.
12	ZHOU C , YUE P , FENG J J , et al. 3D phase-field simulations of interfacial dynamics in Newtonian and viscoelastic fluids[J]. Journal of Computational Physics, 2010, 229 (2): 498- 511. DOI
13	AMIRI H A , HAMOUDA A A . Evaluation of level set and phase field methods in modeling two phase flow with viscosity contrast through dual-permeability porous medium[J]. International Journal of Multiphase Flow, 2013, 52, 22- 34. DOI
14	ZHOU S , RABCZUK T , ZHUANG X . Phase field modeling of quasi-static and dynamic crack propagation: COMSOL implementation and case studies[J]. Advances in Engineering Software, 2018, 122, 31- 49. DOI
15	AMIRI H A , HAMOUDA A A . Pore-scale modeling of non-isothermal two phase flow in 2D porous media: Influences of viscosity, capillarity, wettability and heterogeneity[J]. International Journal of Multiphase Flow, 2014, 61, 14- 27. DOI
16	ZOGRAFOS K , AFONSO A M , POOLE R J , et al. A viscoelastic two-phase solver using a phase-field approach[J]. Journal of Non-Newtonian Fluid Mechanics, 2020, 284, 104364. DOI
17	CHAI Y , OUYANG J . Appropriate stabilized Galerkin approaches for solving two-dimensional coupled Burgers' equations at high Reynolds numbers[J]. Computers & Mathematics with Applications, 2020, 79 (5): 1287- 1301.
18	WU X H , ZHU X W , SHEN S P , et al. Numerical simulation of convection-domained problems using MLPG/SUPG method[J]. Chinese Journal of Computational Mechanics, 2011, 28 (4): 574- 578.
19	WU J , XU S , ZHAO N . A hybrid method for multiphase flows with large density ratio[J]. Chinese Journal of Computational Physics, 2013, 30 (1): 1- 10.
20	BORONAT T , SEGUI V J , PEYDRO M A , et al. Influence of temperature and shear rate on the rheology and processability of reprocessed ABS in injection molding process[J]. Journal of Materials Processing Technology, 2009, 209 (5): 2735- 2745. DOI
21	GAO P , OUYANG J , DAI P , et al. A coupled continuous and discontinuous finite element method for the incompressible flows[J]. International Journal for Numerical Methods in Fluids, 2017, 84 (8): 477- 493. DOI
22	NITHIARAS P , CODINA R , ZIENKIEWICZ O C . The characteristic-based split (CBS) scheme—a unified approach to fluid dynamics[J]. International Journal for Numerical Methods in Engineering, 2006, 66 (10): 1514- 1546.
23	COCKBURN B , SHU C W . TVB Runge-Kutta local projection discontinuous Galerkin finite element method for conservation laws Ⅱ: General framework[J]. Mathematics of Computation, 1989, 52 (186): 411- 435.
24	FATHI S , BEHRAVESH A . Real-time measurement of flow front kinematics using quantitative visualization in injection molding process[J]. Polymer Engineering & Science, 2008, 48 (3): 598- 605.
