Effect of Thickness of Stacked Co Nanoring Arrays on Magnetic Properties

doi:10.19596/j.cnki.1001-246x.8698

Abstract

Abstract:

Based on the Monte Carlo (MC) method and the fast Fourier transform micromagnetism (FFTM) method, the magnetic dynamic properties of the stacked Co nanoring arrays with different thickness are simulated. It is found that the hysteresis loops of Co nanorings with different thickness have the bistable states, and the formation and stability of the "vortex state" are significantly related to the thickness. Further studies show that the thickness of the stacked Co nanoring arrays has a great influence on the external magnetic field required for the system to reach saturation. The step width of the hysteresis loop ΔH_fc is also related to the thickness. The simulation results are close to the experimental facts.

Key words: Monte Carlo method, fast Fourier transform micromagnetism method, the stacked Co nanoring arrays, thickness, magnetic properties

CLC Number:

O482.1

Qiannan HUANG, Yujie HE, Chunlong FAN, Changlin WEN, Yuchen XUE, Shuiyuan CHEN, Zhigao HUANG, Qingying YE. Effect of Thickness of Stacked Co Nanoring Arrays on Magnetic Properties[J]. Chinese Journal of Computational Physics, 2024, 41(2): 232-238.

Figures/Tables 8

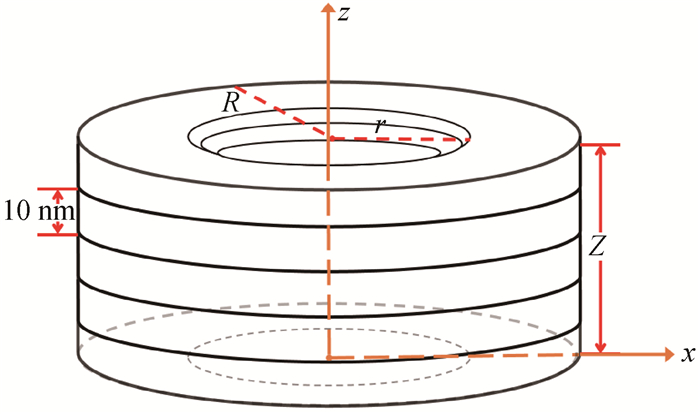

Fig.1 The model of the stacked Co nanoring arrays

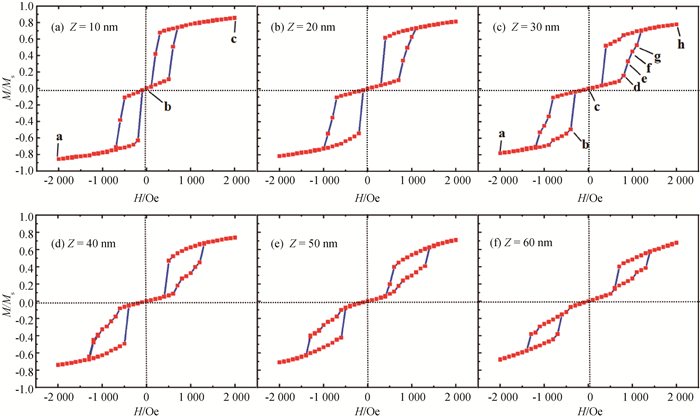

Fig.2 The hysteresis loops of the stacked Co nanoring arrays with different thickness at r=40 nm

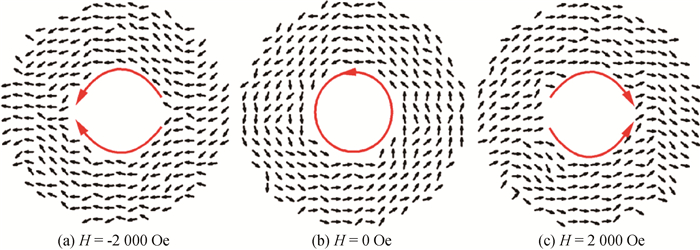

Fig.3 The evolution of spin-configurations for Co nanorings at r=40 nm, Z=10 nm

Fig.4 The evolution of spin-configurations for Co nanorings at r=40 nm, Z=30 nm

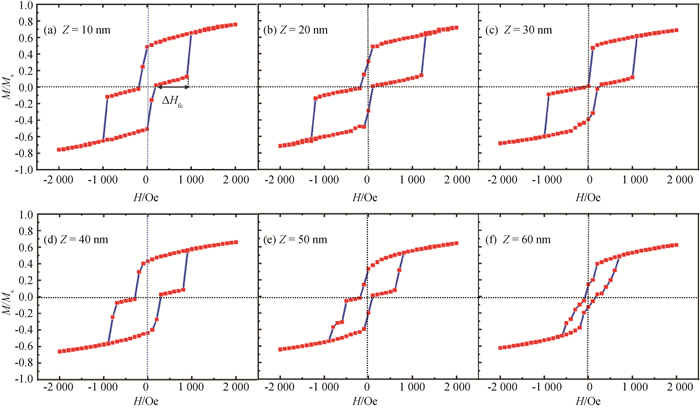

Fig.5 The hysteresis loops of the stacked Co nanoring arrays with different thickness at r=80 nm

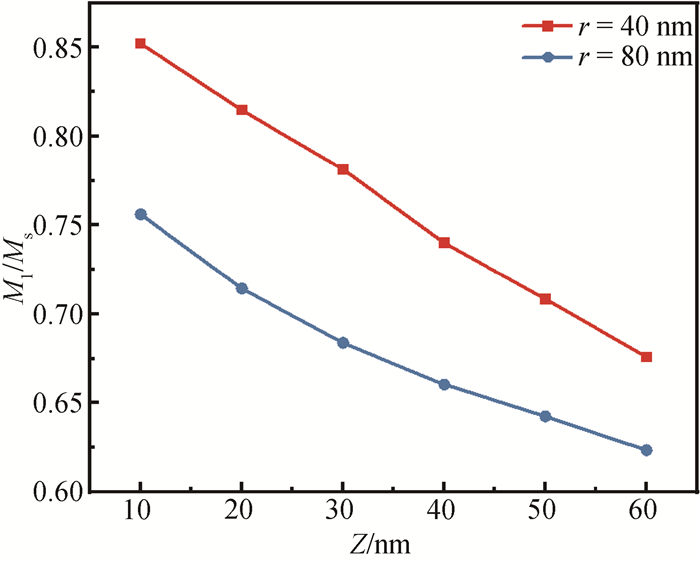

Fig.6 The curves of M1/MS versus Z

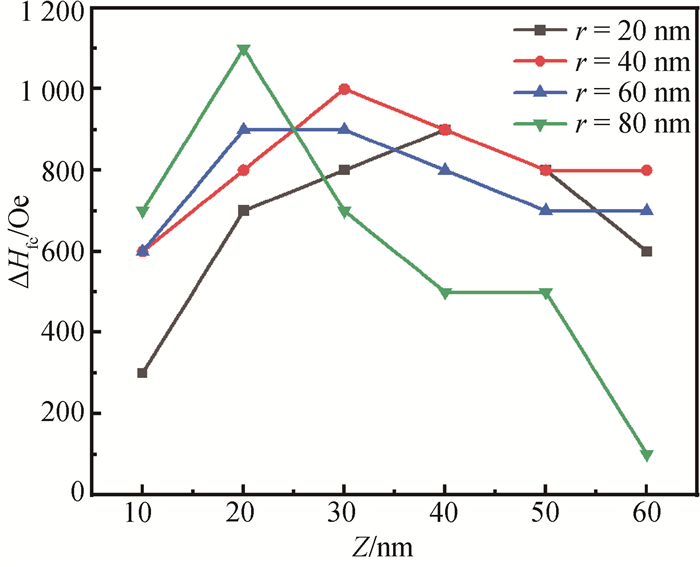

Fig.7 The curve of ΔHfc versus Z

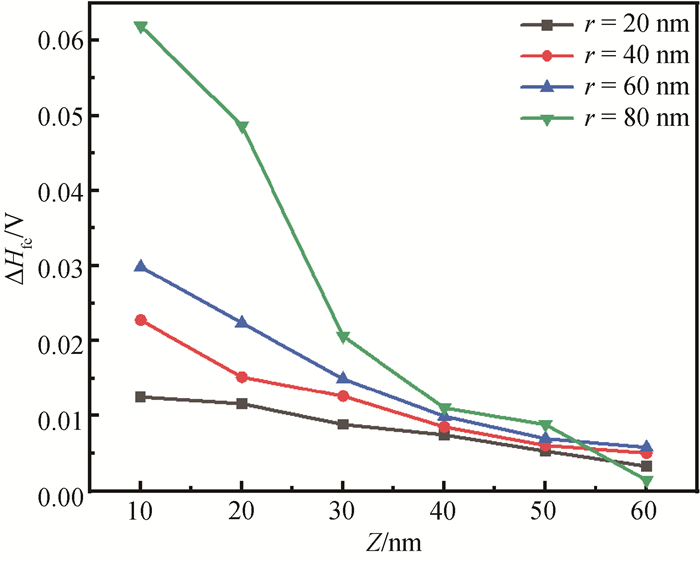

Fig.8 The curve of ΔHfc/V versus Z
