Effects of Secondary Electron Emission Coefficient on the Plasma Wall Potential with Super-extensive Electrons

doi:10.19596/j.cnki.1001-246x.8611

Abstract

Abstract:

A one-dimensional model is used to study the effects of secondary electron emission coefficient on plasma wall potential with Maxwell distribution of primary electrons and partially super-extensive electrons. By numerical simulation, the results show that when the secondary electron emission coefficient of the wall is small, the wall potential decreases with the increase of the concentration ratio, the temperature ratio and super-extensive parameter of the super-extensive electrons to the primary electrons. The wall potential increases with the increase of the concentration ratio, the temperature ratio and super-extensive parameter of the super-extensive electrons to the primary electrons.

Key words: secondary electron emission, super-extensive, plasma, potential

Xiaoyun ZHAO, Bingkai ZHANG, Shigang LI, Yijia TANG. Effects of Secondary Electron Emission Coefficient on the Plasma Wall Potential with Super-extensive Electrons[J]. Chinese Journal of Computational Physics, 2023, 40(4): 482-489.

Figures/Tables 6

Fig.1 The schematic diagram of plasma sheath

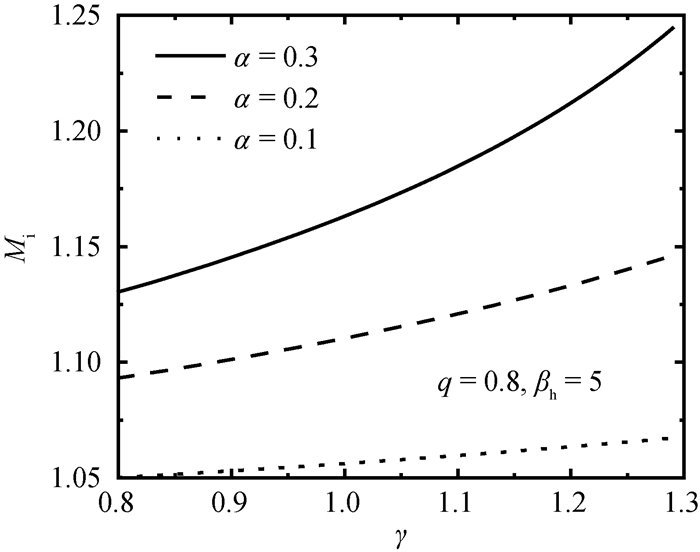

Fig.2 The minimum ion Bohm velocity for different ratio of the number of super-extensive electrons to the number of primary electrons versus secondary electron emission coefficients

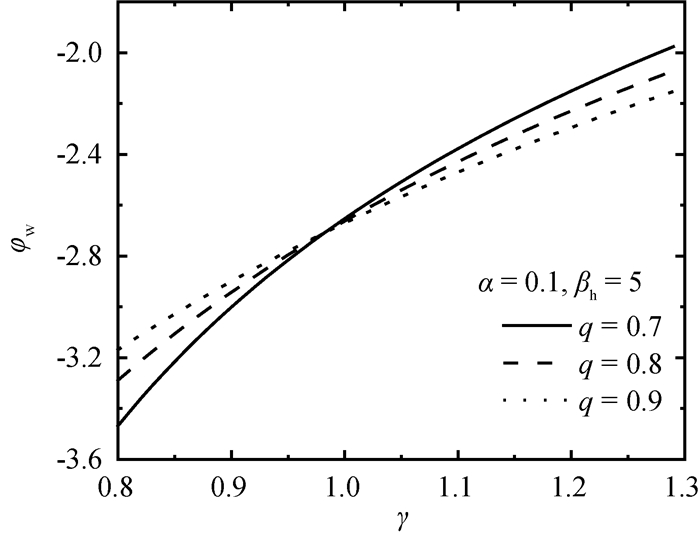

Fig.3 Wall potential for different super-extensive parameter q versus secondary electron emission coefficients

Fig.4 Wall potential for different ratio of the number of super-extensive electrons to the number of primary electrons versus secondary electron emission coefficients

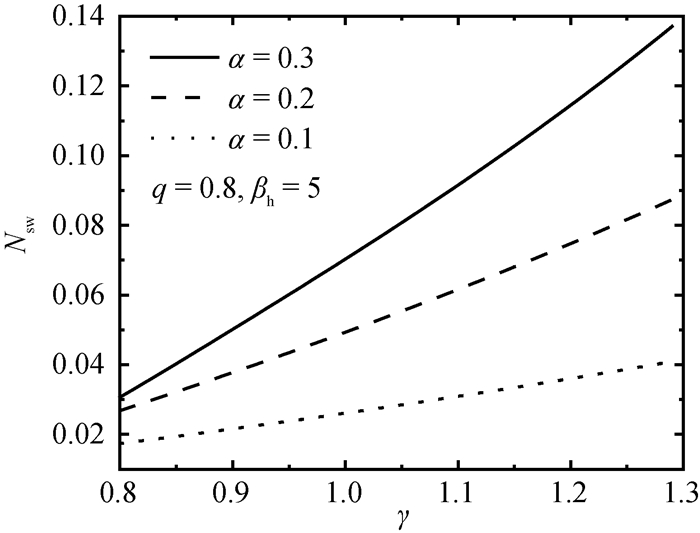

Fig.5 The number density of secondary electrons for different ratio of the number of super-extensive electrons to the number of primary electrons versus secondary electron emission coefficients

Fig.6 Wall potential for different ration of the temperature of super-extensive electron to primary electron β versus secondary electron emission coefficients

References 36

1	LIEBERMANN M A , LICHTENBERG A J . Principles of plasma discharges and materials processing[M]. New York: Wiley, 1994.
2	STANGEBY P C . The plasma boundary of magnetic fusion devices[M]. Bristol: Institute of Physics Publishing, 2000.
3	GUNN J P . Evidence for strong secondary electron emission in the tokamak scrape-off layer[J]. Plasma Phys Control Fusion, 2012, 54 (8): 085007. DOI
4	ZHAO X Y , ZHANG K Y , ZHANG B K , et al. Effects of two-temperature electrons on sheath of stationary plasma[J]. Chinese Journal of Computational Physics, 2013, 30 (5): 733- 738. DOI
5	XU H , ZHUO H B , YANG X H , et al. Hybrid particle-in-cell/fluid model for hot electron transport in dense plasmas[J]. Chinese Journal of Computational Physics, 2017, 34 (5): 505- 525.
6	KAKATI B , KAUSIK S S , SAIKIA B K , et al. Effect of energetic electrons on dust charging in hot cathode filament discharge[J]. Physics of Plasmas, 2011, 18 (3): 033705. DOI
7	KALITA D , KAKATI B , KAUSIK S S , et al. Effect of dust particle and magnetic field on EEPF and plasma oscillation[J]. Journal of Plasma Physics, 2019, 85 (4): 1- 14.
8	SHARMA G , ADHIKARI S , MOULICK R , et al. Effect of two temperature electrons in a collisional magnetized plasma sheath[J]. Physica Scripta, 2020, 95 (3): 035605. DOI
9	KAMRAN M , KHAN M . Calculations of polytropic coefficient for the Tonks-Langmuir electron-ion plasma with non-Maxwellian electron distributions[J]. Contributions to Plasma Physics, 2020, 60 (10): e202000043. DOI
10	JALILPOUR P , FOROUTAN G . The effects of secondary emission on the sheath structure in an electrostatic dusty plasma containing energetic electrons and charged nanoparticles[J]. Physics of Plasmas, 2018, 25 (3): 033701. DOI
11	MISHRA S K , MISRA S , SODHA M S . Charging kinetics of dust particles in a non-Maxwellian Lorentzian plasma[J]. The European Physical Journal D, 2013, 67 (10): 1- 10.
12	QIU H , ZHOU Z , PENG X , et al. Initial measurement of electron nonextensive parameter with electric probe[J]. Physical Review E, 2020, 101 (4): 043206. DOI
13	TSALLIS C . Generalized entropy-based criterion for consistent testing[J]. Physical Review E, 1998, 58 (2): 1442- 1445. DOI
14	DEVOE R G . Power-law distributions for a trapped ion interacting with a classical buffer gas[J]. Physical Review Letters, 2009, 102 (6): 063001. DOI
15	QIU H , XIAO D , GAO Y , et al. Sheath potential coefficient in plasma with nonextensive distribution[J]. AIP Advances, 2020, 10 (6): 065135. DOI
16	LIU Y , LIU S Q , ZHOU L . Bohm criterion in a dusty plasma with nonextensive electrons and cold ions[J]. Physics of Plasmas, 2013, 20 (4): 043702. DOI
17	SAFA N N , GHOMI H , NIKNAM A R . Effect of the q-nonextensive electron velocity distribution on a magnetized plasma sheath[J]. Physics of Plasmas, 2014, 21 (8): 082111. DOI
18	SHARIFIAN M , SHARIFINEJAD H R , ZARANDI M B , et al. Effect of q-non-extensive distribution of electrons on the plasma sheath floating potential[J]. Journal of Plasma Physics, 2014, 80 (4): 607- 618. DOI
19	BASNET S , KHANAL R . Magnetized plasma sheath properties in the presence of Maxwellian low-temperature and non-Maxwellian high-temperature electrons[J]. Physics of Plasmas, 2019, 26 (4): 043516. DOI
20	SHARIFIAN M , GHOVEISI F , GHOLAMZADEH L , et al. The inverse Bremsstrahlung absorption in the presence of Maxwellian and non-Maxwellion electrons[J]. Chinese Physics B, 2019, 28 (10): 105- 202.
21	BORGOHAIN D R , SAHARIA K . Characteristics of electronegative plasma sheath with q-nonextensive electron distribution[J]. Plasma Physics Reports, 2018, 44 (1): 137- 144. DOI
22	ASSERGHINE A , EL KAOUINI M , CHATEI H . Investigation of magnetized plasma sheath in the presence of q-nonextensive electrons and negative ions[J]. Materials Today: Proceedings, 2020, 24 (1): 24- 28.
23	ZHAO X , ZHANG B , WANG C . Dust charging and levitating in a magnetized plasma sheath containing superextensive electrons[J]. Physics of Plasmas, 2020, 27 (11): 113705. DOI
24	EL GHANI O , DRIOUCH I , CHATEI H . Effects of non-extensive electrons on the sheath of dusty plasmas with variable dust charge[J]. Contributions to Plasma Physics, 2019, 59 (9): e201900030. DOI
25	赵晓云, 张丙开, 王春晓, 等. 电子的非广延分布对等离子体鞘层中二次电子发射的影响[J]. 物理学报, 2019, 68 (18): 185204. DOI
26	陈龙, 孙少娟, 姜博瑞, 等. 电子非麦氏分布的二次电子发射磁化鞘层特性[J]. 物理学报, 2021, 70 (24): 245201.
27	EL GHANI O , DRIOUCH I , CHATEI H . Numerical investigation of secondary electron emission effect on the dusty plasma sheath with superextensive electrons[J]. Physics of Plasmas, 2020, 27 (8): 083701. DOI
28	ASSERGHINE A , MISSAOUI A , EL KAOUINI M , et al. Numerical study of the effect of secondary electron emission on the sheath characteristics in q-non-extensive plasma[J]. Contributions to Plasma Physics, 2022, 62 (1): e202100084. DOI
29	LONG C , YUHAO A N , SHAOJUAN S U N , et al. Study on the characteristics of non-Maxwellian magnetized sheath in Hall thruster acceleration region[J]. Plasma Science and Technology, 2022, 24 (7): 074011. DOI
30	TRIBECHE M , DJEBARNI L , AMOUR R . Ion-acoustic solitary waves in a plasma with aq-nonextensive electron velocity distribution[J]. Physics of Plasmas, 2010, 17 (4): 042114. DOI
31	DRIOUCH I , CHATEI H . Effect of q-nonextensive distribution of electrons on the sheath in dusty plasma[J]. The European Physical Journal D, 2017, 71 (1): 1- 7. DOI
32	HOBBS G D , WESSON J A . Heat flow through a Langmuir sheath in the presence of electron emission[J]. Plasma Physics, 1967, 9 (1): 85- 87. DOI
33	ARGHAND-HESAR A , ESFANDYARI-KALEJAHI A , AKBARI-MOGHANJOUGHI M . Effects of a monoenergetic electron beam on the sheath formation in a plasma with a q-nonextensive electron velocity distribution[J]. Physics of Plasmas, 2017, 24 (6): 063504. DOI
34	RIEMANN K U . The Bohm criterion and sheath formation[J]. Journal of Physics D: Applied Physics, 1991, 24 (4): 493- 518. DOI
35	HATAMI M M . Sheath structure in plasmas with non extensively distributed electrons and thermal ions[J]. Physics of Plasmas, 2015, 22 (2): 023506. DOI
36	AIT GOUGAM L , TRIBECHE M . Debye shielding in a nonextensive plasma[J]. Physics of Plasmas, 2011, 18 (6): 062102. DOI
