Velocity-correction Schemes for Solving Incompressible Navier-Stokes Equations Based on Picard Iteration

doi:10.19596/j.cnki.1001-246x.8810

Abstract

Abstract:

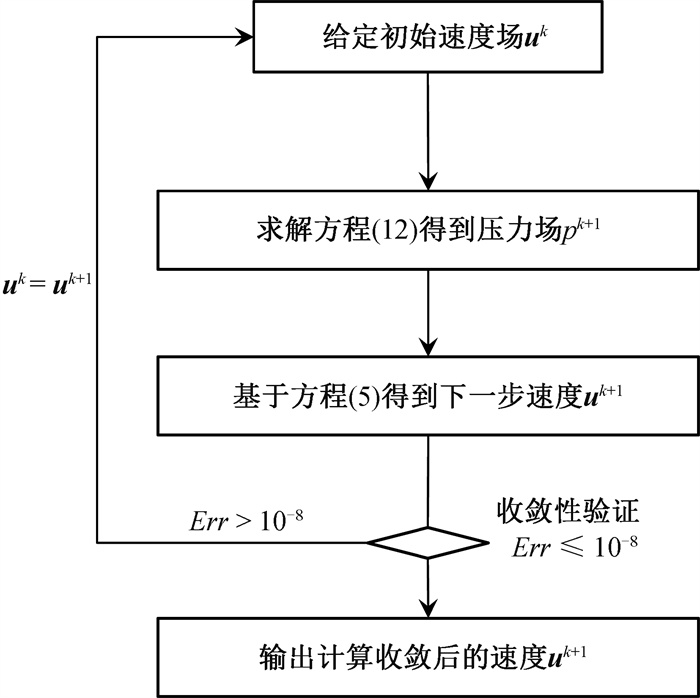

The implementation flow of processing incompressible Navier-Stokes equations based on velocity-correction schemes is introduced, and velocity-correction schemes based on Picard iteration is developed by introducing Picard linearization to process the convection term in the velocity governing equation. Compared with the traditional method, the projection method after Picard linearization can be solved with a larger time step, which improves the stability of the solution method, and the convergence accuracy meets the requirements, which confirms the reliability of the solution method.

Key words: Navier-Stokes equations, Picard linearization, velocity-correction schemes

Linmao YIN, Yulong ZHANG, Yang YANG, Fujian XIAO, Bingyan JIANG. Velocity-correction Schemes for Solving Incompressible Navier-Stokes Equations Based on Picard Iteration[J]. Chinese Journal of Computational Physics, 2025, 42(1): 10-17.

Figures/Tables 11

References 26

1	CHORIN A J . Numerical solution of the Navier-Stokes equations[J]. Mathematics of Computation, 1968, 22 (104): 745- 762. DOI
2	TÉMAM R . Sur l'approximation de la solution des équations de Navier-Stokes par la méthode des pas fractionnaires (Ⅱ)[J]. Archive for Rational Mechanics and Analysis, 1969, 33 (5): 377- 385. DOI
3	GUERMOND J L , MINEV P , SHEN J . Error analysis of pressure-correction schemes for the time-dependent stokes equations with open boundary conditions[J]. SIAM Journal on Numerical Analysis, 2005, 43 (1): 239- 258. DOI
4	GALLOUËT T , GASTALDO L , HERBIN R , et al. An unconditionally stable pressure correction scheme for the compressible barotropic Navier-Stokes equations[J]. ESAIM: M2AN, 2008, 42 (2): 303- 331. DOI
5	GUERMOND J L , SHEN Jie . Velocity-correction projection methods for incompressible flows[J]. SIAM Journal on Numerical Analysis, 2003, 41 (1): 112- 134. DOI
6	SERSON D , MENEGHINI J R , SHERWIN S J . Velocity-correction schemes for the incompressible Navier-Stokes equations in general coordinate systems[J]. Journal of Computational Physics, 2016, 316, 243- 254. DOI
7	CHEN Feng , SHEN Jie . Stability and convergence analysis of rotational velocity correction methods for the Navier-Stokes equations[J]. Advances in Computational Mathematics, 2019, 45 (5): 3123- 3136.
8	GUAN Jixiang , JING Shujie , SI Zhiyong . A rotational velocity-correction projection method for unsteady incompressible magnetohydrodynamics equations[J]. Computers & Mathematics With Applications, 2020, 80 (5): 809- 821.
9	GUERMOND J L , SHEN Jie . A new class of truly consistent splitting schemes for incompressible flows[J]. Journal of Computational Physics, 2003, 192 (1): 262- 276. DOI
10	PACHECO D R Q , CASTILLO E . Consistent splitting schemes for incompressible viscoelastic flow problems[J]. International Journal for Numerical Methods in Engineering, 2023, 124 (8): 1908- 1927. DOI
11	LI Xiaoli , SHEN Jie . Error analysis of a fully discrete consistent splitting Mac scheme for time dependent Stokes equations[J]. Journal of Computational and Applied Mathematics, 2023, 421, 114892. DOI
12	REHMAN M U, VUIK C, SEGAL G. Numerical solution techniques for the steady incompressible Navier-Stokes problem[C]//Proceedings of the World Congress on Engineering 2008 Vol Ⅱ. London: WCE, 2008: 1-6.
13	邱周华, 曾忠, 刘浩. 基于Picard迭代的PN×PN-2谱元法求解定常不可压缩Navier-Stokes方程[J]. 应用数学和力学, 2021, 42 (2): 142- 150.
14	QIU Zhouhua , ZENG Zhong , MEI Huan , et al. A fourier-legendre spectral element method in polar coordinates[J]. Journal of Computational Physics, 2012, 231 (2): 666- 675. DOI
15	秦国良, 徐忠. 谱元方法求解二维不可压缩Navier-Stokes方程[J]. 应用力学学报, 2000, 17 (4): 20- 25.
16	CHUNG K M , HUANG Yixuan , LEE K H , et al. Reynolds number effect on compressible cylindrical cavity flow[J]. Chinese Journal of Aeronautics, 2020, 33 (2): 456- 464. DOI
17	SAVCHENKO Y N , SAVCHENKO G Y , SEMENOV Y A . Effect of a boundary layer on cavity flow[J]. Mathematics, 2020, 8 (6): 909. DOI
18	杨晓成, 尚月强. 大雷诺数Navier-Stokes方程的两水平亚格子模型稳定化方法[J]. 计算物理, 2017, 34 (6): 657- 665. DOI
19	马东军, 柳阳, 孙德军, 等. 高阶谱元区域分解算法求解定常方腔驱动流[J]. 计算力学学报, 2006, 23 (6): 668- 673.
20	丁琪, 尚月强. 非定常Navier-Stokes方程基于两重网格离散的有限元并行算法[J]. 计算物理, 2020, 37 (1): 10- 18. DOI
21	王湛煌, 郑波, 尚月强. 非定常Navier-Stokes方程的并行两水平稳定有限元算法[J]. 计算物理, 2023, 40 (1): 14- 28. DOI

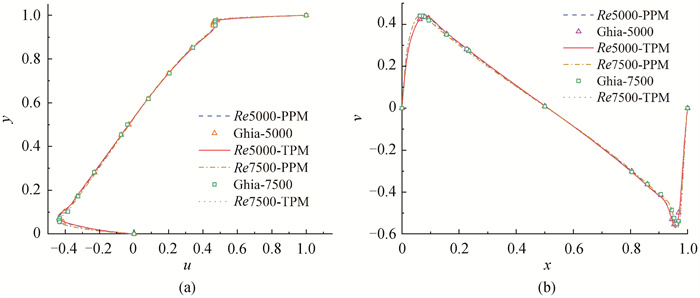

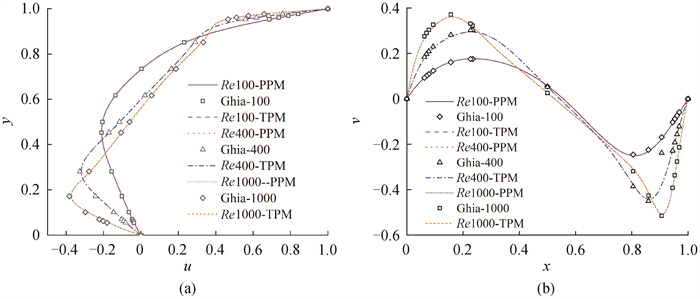

22	GHIA U , GHIA K N , SHIN C T . High-Re solutions for incompressible flow using the Navier-Stokes equations and a multigrid method[J]. Journal of Computational Physics, 1982, 48 (3): 387- 411. DOI
23	方季琳, 黄鹏展, 张秋雨. 自然对流问题的一种自适应有限元方法[J]. 厦门大学学报(自然科学版), 2020, 59 (4): 516- 521.
24	WU Xiaodi , ZHOU Song . Thermal lattice Boltzmann flux solver for natural convection of nanofluid in a square enclosure[J]. Entropy, 2022, 24 (10): 1448. DOI

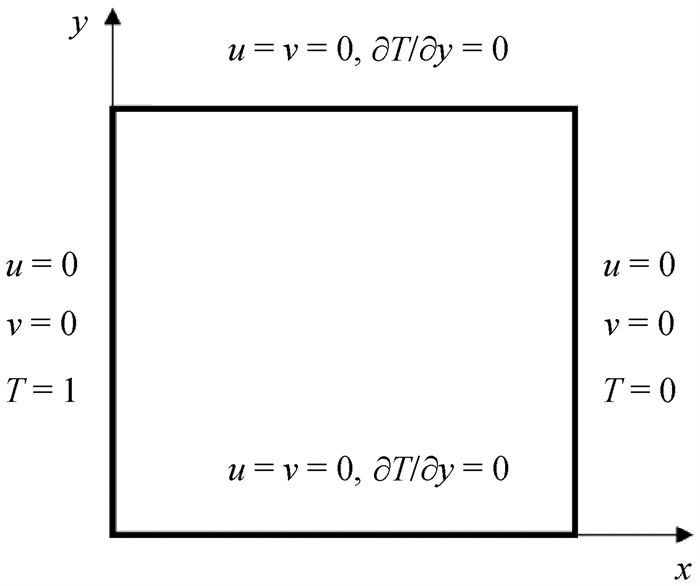

25	DE VAHL DAVIS G . Natural convection of air in a square cavity: A bench mark numerical solution[J]. International Journal for Numerical Methods in Fluids, 1983, 3 (3): 249- 264. DOI
26	BARAKOS G , MITSOULIS E , ASSIMACOPOULOS D . Natural convection flow in a square cavity revisited: Laminar and turbulent models with wall functions[J]. International Journal for Numerical Methods in Fluids, 1994, 18 (7): 695- 719. DOI

	60	90	120	150	收敛阶
E₂_u-TPM	4.64×10^-4	2.01×10^-4	1.14×10^-4	7.39×10^-5	1.952 3
E₂_u-PPM	4.16×10^-4	1.87×10^-4	1.06×10^-4	6.88×10^-5	1.954 6
E₂_v-TPM	1.28×10^-4	5.65×10^-5	3.19×10^-5	2.05×10^-5	1.979 2
E₂_v-PPM	1.43×10^-4	6.33×10^-5	3.56×10^-5	2.28×10^-5	1.997 9
E₂_p-TPM	9.19×10^-4	4.22×10^-4	2.48×10^-4	1.66×10^-4	1.820 5
E₂_p-PPM	1.64×10^-3	7.34×10^-4	4.18×10^-4	2.72×10^-4	1.940 8

	60	90	120	150	收敛阶
E₂_u-TPM	4.64×10^-4	2.01×10^-4	1.14×10^-4	7.39×10^-5	1.952 3
E₂_u-PPM	4.16×10^-4	1.87×10^-4	1.06×10^-4	6.88×10^-5	1.954 6
E₂_v-TPM	1.28×10^-4	5.65×10^-5	3.19×10^-5	2.05×10^-5	1.979 2
E₂_v-PPM	1.43×10^-4	6.33×10^-5	3.56×10^-5	2.28×10^-5	1.997 9
E₂_p-TPM	9.19×10^-4	4.22×10^-4	2.48×10^-4	1.66×10^-4	1.820 5
E₂_p-PPM	1.64×10^-3	7.34×10^-4	4.18×10^-4	2.72×10^-4	1.940 8

	Re	1	100	400	1 000	5 000
σ_min	传统投影法	0.0	1.5	30.4	71.2	243.5
	Picard投影法	0.0	0.0	5.4	23.9	147.6

	Re	1	100	400	1 000	5 000
σ_min	传统投影法	0.0	1.5	30.4	71.2	243.5
	Picard投影法	0.0	0.0	5.4	23.9	147.6

Re	传统投影法		Picard投影法
Re	最优σ	迭代步数	最优σ	迭代步数
400	30.4	1 706	5.4	525
1 000	71.2	8 131	23.9	3 037
