Structural and Energetic Properties for Point Defects in NpO2 from DFT+U Calculations

doi:10.19596/j.cnki.1001-246x.8838

Abstract

Abstract:

The relationship between different magnetic structures and energies of NpO₂ with a series of U values (3~7 eV) is first calculated by DFT+U method, and then the influence of different point defects in NpO₂ on its architecture and energy properties is studied according to reliable U (4.0 eV). In the calculated results of three different magnetic orders of NpO₂, the structural results of 3 k AFM are in good agreement with the experimental values and obtained a lower energy of formation. Compared with the perfect structure of NpO₂, the energy of formation of single O vacancy system increase by about 0.06 eV, while the energy of formation of the single Np vacancy system increase by 1.4 eV. In addition, we also study the changes in the volume and energy of the system as O and Np vacancies increase.

Key words: NpO₂, point defects, energy of formation, density functional theory

Tao LIU, Tao GAO. Structural and Energetic Properties for Point Defects in NpO₂ from DFT+U Calculations[J]. Chinese Journal of Computational Physics, 2025, 42(1): 84-89.

Figures/Tables 7

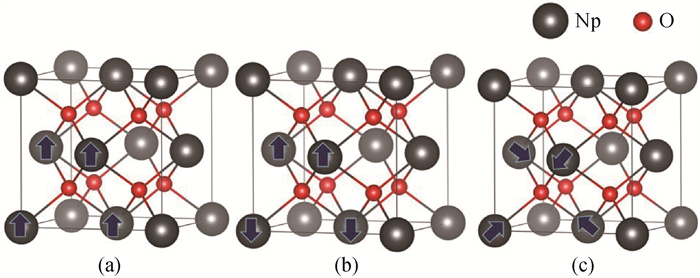

Fig.1 Crystal structure of NpO2 (a) 1 k ferromagnetic (FM) order; (b) longitudinal 1 k collinear antiferromagnetic (AFM) order; (c) transverse 3 k noncollinear antiferromagnetic (AFM) order

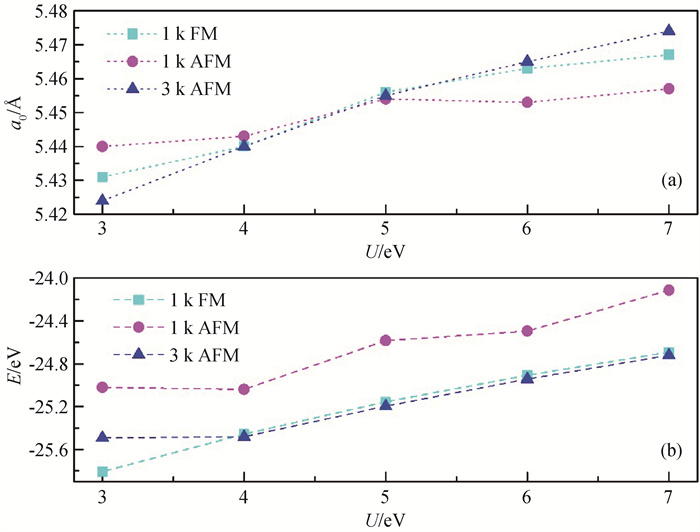

Fig.2 Variations (a) lattice parameters and (b) energy of NpO2 calculated by PBEsol+U with U

Table 1 Lattice constants a and Etot of metal Np, O2 and NpO2 calculated by PBEsol+U method

		Np	O₂	NpO₂
a/nm	PBEsol+U	0.394		0.543
a/nm	Exp.[3]	0.393		0.544
E_tot/eV	PBEsol+U	-17.405	-5.014	-24.938
E_tot/eV	Exp.[5]		-4.9

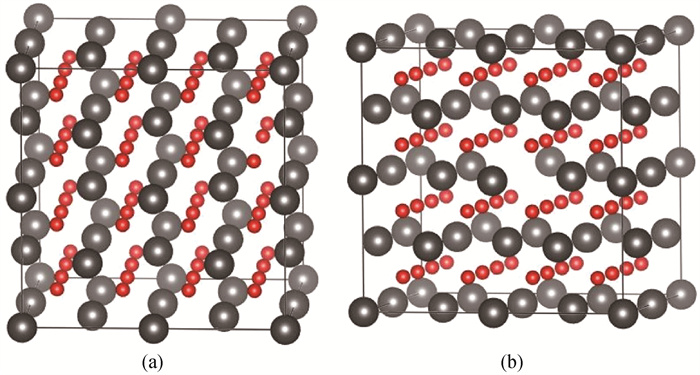

Fig.3 Different point defect structures (a) single O vacancy; (b) single Np vacancy

Table 2 Lattice constants a、Etot、Eform calculated by PBEsol+U method

	Method	a/nm	E_tot/eV	E_form/eV
Np₃₂O₆₄	PBEsol+U	1.089	-24.938	-11.225
Np₃₂O₆₄	Exp. [3]	1.088	-24.938	-11.225
Np₃₂O₆₃	PBEsol+U	1.089	-25.217	-11.166
Np₃₂O₆₂	PBEsol+U	1.089	-24.941	-11.158
Np₃₂O₆₁	PBEsol+U	1.091	-24.689	-11.197
Np₃₁O₆₄	PBEsol+U	1.086	-24.771	-9.886
Np₃₀O₆₃	PBEsol+U	1.085	-24.164	-8.829

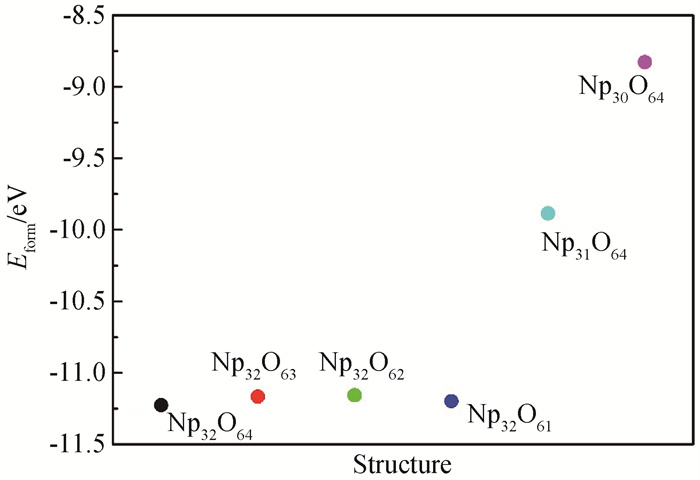

Fig.4 Energy variation and various point defect structures

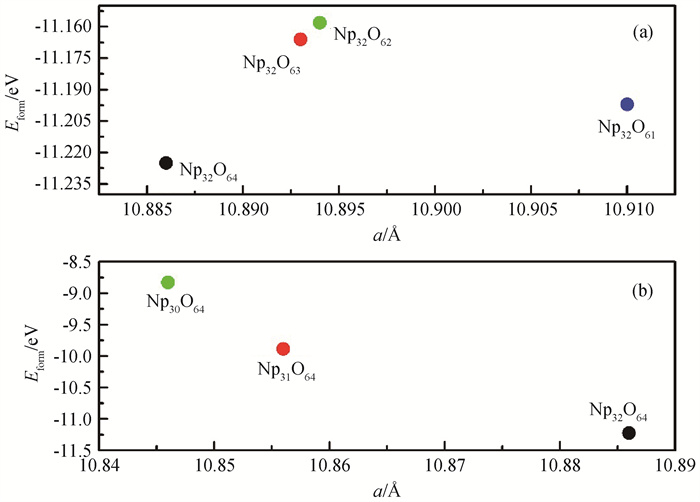

Fig.5 Relationship between structural parameters and energy of various O point defects and Np point defects

References 17

1	SERIZAWA H, ARAI Y, NAKAJIMA K. The estimation of the heat capacity of NpO₂[J]. The Journal of Chemical Thermodynamics, 2001, 33(6): 615- 628. DOI
2	YAMASHITA T, NITANI N, TSUJI T, et al. Thermal expansions of NpO₂ and some other actinide dioxides[J]. Journal of Nuclear Materials, 1997, 245(1): 72- 78. DOI
3	BENEDICT U, DABOS S, DUFOUR C, et al. Neptunium compounds under high pressure[J]. Journal of the Less Common Metals, 1986, 121, 461- 468. DOI
4	SANTINI P, CARRETTA S, AMORETTI G, et al. Multipolar interactions in f-electron systems: The paradigm of actinide dioxides[J]. Reviews of Modern Physics, 2009, 81, 807- 863. DOI
5	SEIBERT A, GOUDER T, HUBER F. Reaction of neptunium with molecular and atomic oxygen: Formation and stability of surface oxides[J]. Journal of Nuclear Materials, 2009, 389(3): 470- 478. DOI
6	VEAL B W, LAM D J, DIAMOND H, et al. X-ray photoelectron-spectroscopy study of oxides of the transuranium elements Np, Pu, Am, Cm, Bk, and Cf[J]. Physical Review B, 1977, 15, 2929- 2942. DOI
7	DUDAREV S L, BOTTON G A, SAVRASOV S Y, et al. Electron-energy-loss spectra and the structural stability of nickel oxide: An LSDA+U study[J]. Physical Review B, 1998, 57, 1505- 1509. DOI
8	WANG Baotian, SHI Hongliang, LI Weidong, et al. First-principles LDA+U and GGA+U study of neptunium dioxide[J]. Physical Review B, 2010, 81, 045119. DOI
9	PELIN C, ELOIRDI R, HUBER F, et al. Surface reduction of neptunium dioxide and uranium mixed oxides with plutonium and thorium by photocatalytic reaction with ice[J]. Journal of Physical Chemistry C, 2015, 119(3): 1330- 1337. DOI
10	MALDONADO P, PAOLASINI L, OPPENEER P M, et al. Crystal dynamics and thermal properties of neptunium dioxide[J]. Physical Review B, 2016, 93, 144301. DOI
11	BO Tao, LAN Jianhui, ZHAO Yaolin, et al. Surface properties of NpO₂ and water reacting with stoichiometric and reduced NpO₂ (111), (110), and (100) surfaces from ab initio atomistic thermodynamics[J]. Surface Science, 2016, 644, 153- 164. DOI
12	PERUSKI K M, POWELL B A. Effect of calcination temperature on neptuniumdioxide microstructure and dissolution[J]. Environmental Science: Nano, 2020, 7, 3869- 3876. DOI
13	HOHENBERG P, KOHN W. Inhomogeneous electron gas[J]. Physical Review B, 1964, 136, 864- 871. DOI
14	KRESSE G, FURTHMÜLLER J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set[J]. Physical Review B, 1996, 54(16): 11169- 11186. DOI
15	BLÖCHL P E. Projector augmented-wave method[J]. Physical Review B, 1994, 50(24): 17953- 17979. DOI
16	KRESSE G J, JOUBERT D. From ultrasoft pseudopotentials to the projector augmented wave method[J]. Physical Review B, 1999, 59(3): 1758- 1775. DOI
17	PEGG J T, APARICIO-ANGLÈS X, STORR M, et al. DFT+U study of the structures and properties of the actinide dioxides[J]. Journal of Nuclear Materials, 2017, 492, 269- 278. DOI
