Complex Network Restoration Dynamics Method Considering Continuity between Cascading Failure and Restoration

doi:10.19596/j.cnki.1001-246x.8677

Abstract

Abstract:

To help the network system restore with reasonable investment as soon as possible after cascading failure, using coupling map lattice as the basis of the restoration dynamics model, and the failure state and coupling coefficient under the cascade failure are taken as the input of the restoration dynamics. By further adding the external restoring force and the internal coupling to form the restoration dynamics method. The restoration effect is improved by 46.7%, 47.9% and 66.7% respectively compared with three groups of network restoration methods without considering continuity. In addition, the simulation results on six different networks show that this method can fit the real restoration scene, overcome the differences in network level, scale, network construction methods and so on. Specifically, in the three-layer transportation network, the marginal contribution rate of the initial restoration ratio to the restoration degree is 26.8%, and when the coupling coefficient of restoration is 0.5 and 10% of the nodes are restored for the first time, the restoration degree of the network is as high as 86.4%. The proposed restoration dynamics method can effectively describe the restoration process of various networks.

Key words: complex network, cascade dynamics, coupled map lattice, Henon mapping

CLC Number:

O414.2
U113

Zhangyuan ZHU, Qiuling WANG. Complex Network Restoration Dynamics Method Considering Continuity between Cascading Failure and Restoration[J]. Chinese Journal of Computational Physics, 2024, 41(2): 258-267.

Figures/Tables 14

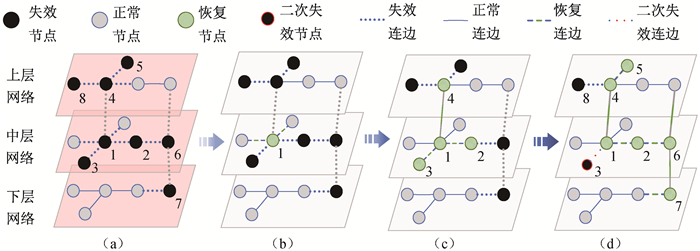

Fig.1 Dynamic process of network restoration from failure (a) stable failure state; (b) start of restoration; (c) process of restoration; (d) end of restoration

Fig.2 Continuation curve of cascading failure and restoration process

Table 1 Comparative experimental results

网络属性	方法	RL值
节点数=500 平均度=4	本文	2.43
节点数=500 平均度=4	Ref.[14]	4.56

节点数=1 000 平均度=6	本文	2.49
	Ref.[12]	4.78
	Ref.[20]	7.48

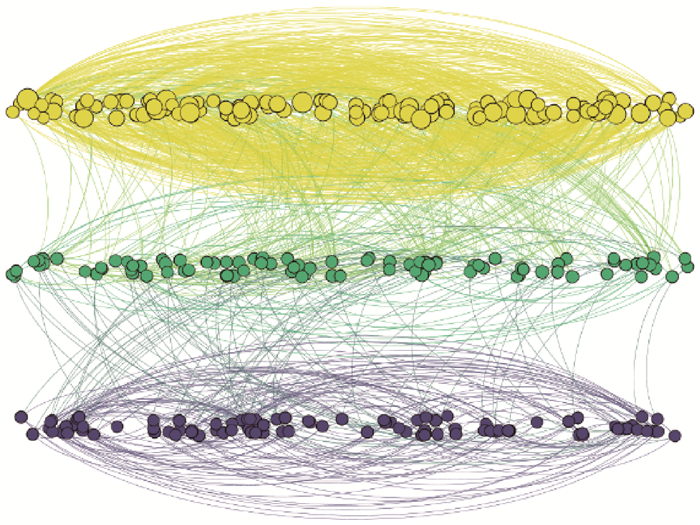

Fig.3 Three-layer traffic complex network

Table 2 Initial parameter setting

参数	符号	取值
节点初始状态	x_i(t₀)	0.7
结构耦合系数	ε₁	0.3
失效仿真步长	c₁	100
指标比例系数	ω₁	0.5
恢复节点比例	o	10%
恢复耦合系数	ε_r	0.3
时间容忍度	T₁	3
恢复仿真步长	c₂	100

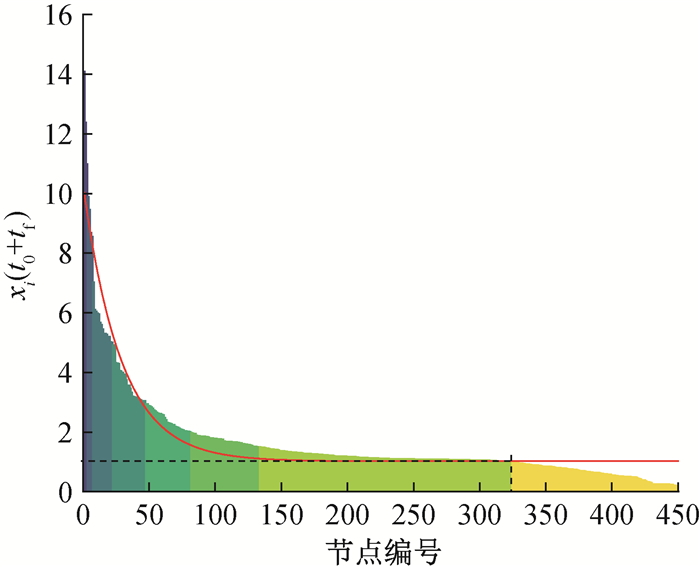

Fig.4 State distribution of failure nodes

Fig.5 Network simulation restoration results

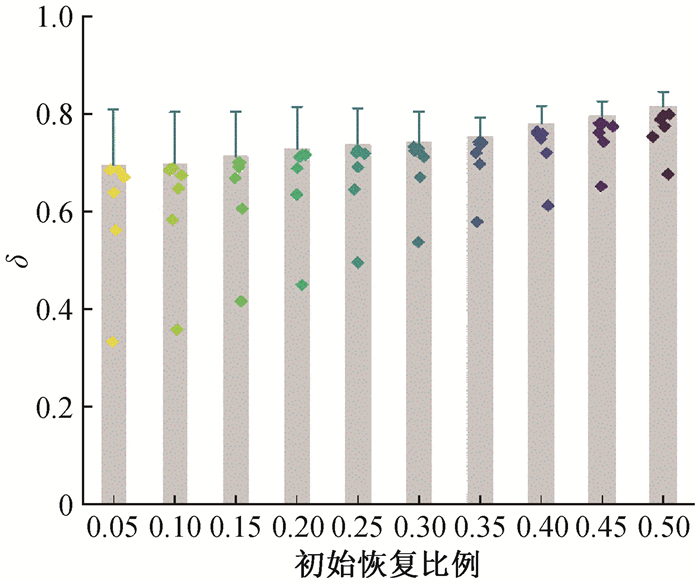

Fig.6 Effect of restoration node ratio on restoration degree

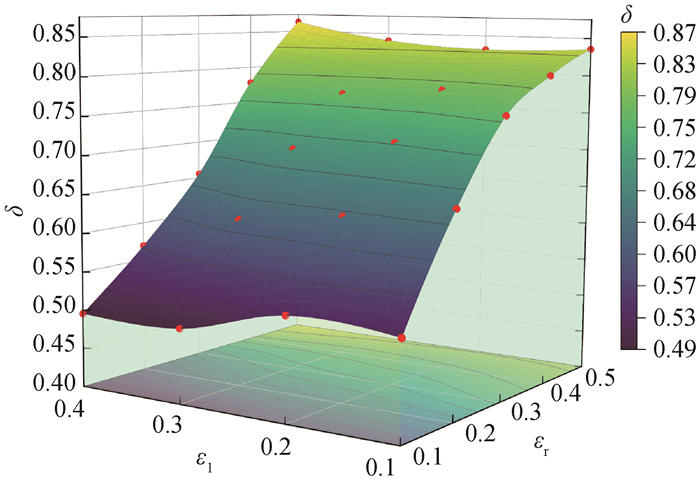

Fig.7 Influence of coupling coefficient on restoration effect

Table 3 Network topology parameters

网络编号	节点数	连边数	平均度	平均聚类系数
①	356	10 657	29.935	0.56
②	90	488	5.422	0.25
③	92	1 554	16.891	0.54

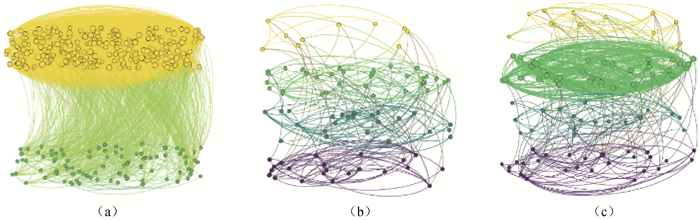

Fig.8 Visualization of traffic network (a) Network ①; (b) Network ②; (c) Network ③

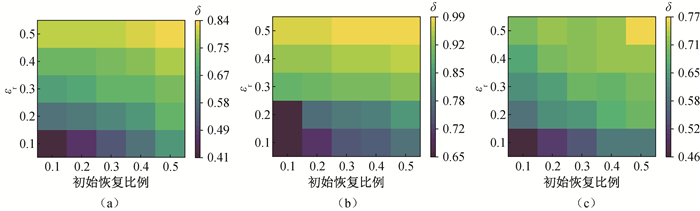

Fig.9 Relationship between initial restoration ratio and restoration coupling coefficient (a) Network ①; (b) Network ②; (c) Network ③

Fig.10 Power network restoration process

Fig.11 Biological network restoration process

References 27

1	LI H Q , ZOU Y L , ZHANG S Z , et al. Robustness of power grids structure and braess paradox phenomenon: A complex network theory study[J]. Chinese Journal of Computational Physics, 2021, 38 (4): 470- 478.
2	GAO C , FAN Y , JIANG S , et al. Dynamic robustness analysis of a two-layer rail transit network model[J]. IEEE Transactions on Intelligent Transportation Systems, 2021, PP (99): 1- 16.
3	HOU F P , ZOU Y L , LIU T H M , et al. Research on cascading faults of hybrid point-to-point power information network based on blockchain[J]. Chinese Journal of Computational Physics, 2023, 40 (5): 633- 642.
4	ZHANG L , WANG L , YUAN X , et al. Decoding the complex free radical cascade by using a DNA framework-based artificial DNA encoder[J]. Angewandte Chemie International Edition, 2021, 60 (19): 10745- 10755. DOI
5	蒋文君, 刘润然, 范天龙, 等. 多层网络级联失效的预防和恢复策略概述[J]. 物理学报, 2020, 69 (8): 81- 91.
6	MOTTER A E , LAI Y C . Cascade-based attacks on complex networks[J]. Physical Review E, 2002, 66 (6): 065102. DOI
7	BULDYREV S V , PARSHANI R , PAUL G , et al. Catastrophic cascade of failures in interdependent networks[J]. Nature, 2010, 464 (7291): 1025- 1028. DOI
8	DONG Y , ZHAO G , MA Y , et al. A novel image encryption scheme based on pseudo-random coupled map lattices with hybrid elementary cellular automata[J]. Information Sciences, 2022, 593, 121- 154. DOI
9	黄爱玲, 徐笑涵, 关伟, 等. 基于加权耦合映像格子的地铁网络稳定性演化研究[J]. 交通运输系统工程与信息, 2021, 21 (3): 140- 149.
10	ZHOU Y , WANG J , YANG H . Resilience of transportation systems: Concepts and comprehensive review[J]. IEEE Transactions on Intelligent Transportation Systems, 2019, 20 (12): 4262- 4276. DOI
11	MOTTER A E . Cascade control and defense in complex networks[J]. Physical Review Letters, 2004, 93 (9): 98701- 98710. DOI
12	JING K , DU X , SHEN L , et al. Robustness of complex networks: Cascading failure mechanism by considering the characteristics of time delay and recovery strategy[J]. Physica A: Statistical Mechanics and Its Applications, 2019, 534, 122061. DOI
13	REN F , ZHAO T , WANG H . Risk and resilience analysis of complex network systems considering cascading failure and recovery strategy based on coupled map lattices[J]. Mathematical Problems in Engineering, 2015, 2015 (pt.19): 761818.
14	XU S , XIA Y , OUYANG M . Effect of resource allocation to the recovery of scale-free networks during cascading failures[J]. Physica A: Statistical Mechanics and Its Applications, 2020, 540, 123157. DOI
15	DANZIGER M M , BARABASI A L . Recovery coupling in multilayer networks[J]. Nature Communications, 2022, 13 (1): 1- 8.
16	YIN R R , YUAN H , WANG J , et al. Modeling and analyzing cascading dynamics of the urban road traffic network[J]. Physica A: Statistical Mechanics and Its Applications, 2021, 566, 125600.
17	WAN C , YANG Z , ZHANG D , et al. Resilience in transportation systems: A systematic review and future directions[J]. Transport Reviews, 2018, 38 (4): 479- 498.
18	HUANG Y , WU J , REN W , et al. Sequential restorations of complex networks after cascading failures[J]. IEEE Transactions on Systems, Man, and Cybernetics: Systems, 2018, 51 (1): 400- 411.
19	MAJDANDZIC A , PODOBINK B , BULDYREV S V , et al. Spontaneous recovery in dynamical networks[J]. Nature Physics, 2014, 10 (1): 34- 38.
20	李钊, 郭燕慧, 徐国爱, 等. 复杂网络中带有应急恢复机理的级联动力学分析[J]. 物理学报, 2014, 63 (15): 417- 428.
21	贾春晓, 李明, 刘润然. 多层复杂网络上的渗流与级联失效动力学[J]. 电子科技大学学报, 2022, 51 (1): 148- 160.
22	吴宗柠, 狄增如, 樊瑛. 多层网络的结构与功能研究进展[J]. 电子科技大学学报, 2021, 50 (1): 106- 120.
23	王秋玲, 朱璋元, 陈红, 等. 基于CML的级联失效下异质多层交通网络节点抵抗特性研究[J]. 中国公路学报, 2022, 35 (1): 263- 274.
24	张长富. 基于混沌理论的多安全级别视频加密算法研究与应用[D]. 沈阳: 东北大学, 2016.
25	BRUNEAU M , CHANG S E , EGUCHI R T , et al. A framework to quantitatively assess and enhance the seismic resilience of communities[J]. Earthquake Spectra, 2003, 19 (4): 733- 752.
26	BARABASI A L , ALBERT R . Emergence of scaling in random networks[J]. Science, 1999, 286 (5439): 509- 512.
27	FU T , WU L , LI C G . Site-bond percolation modeling of real networks: Generating function method[J]. Chinese Journal of Computational Physics, 2022, 39 (2): 212- 222.
